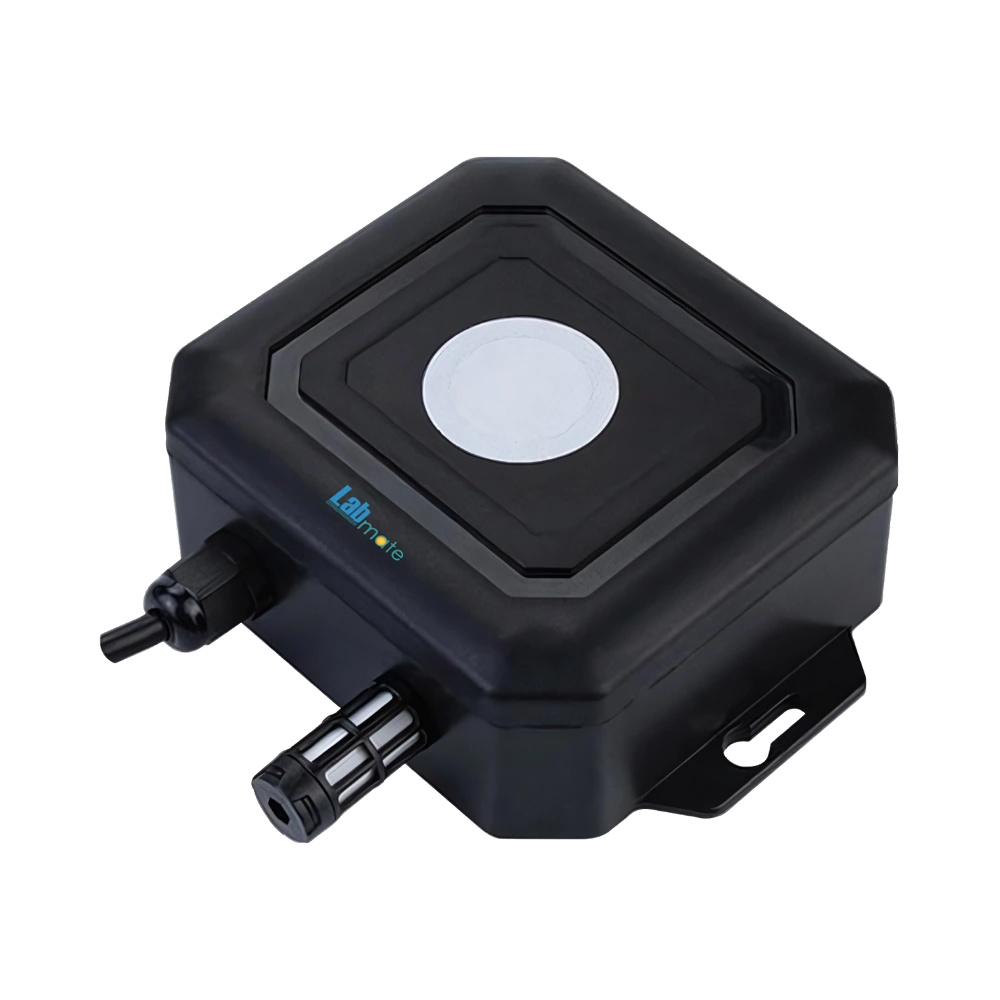

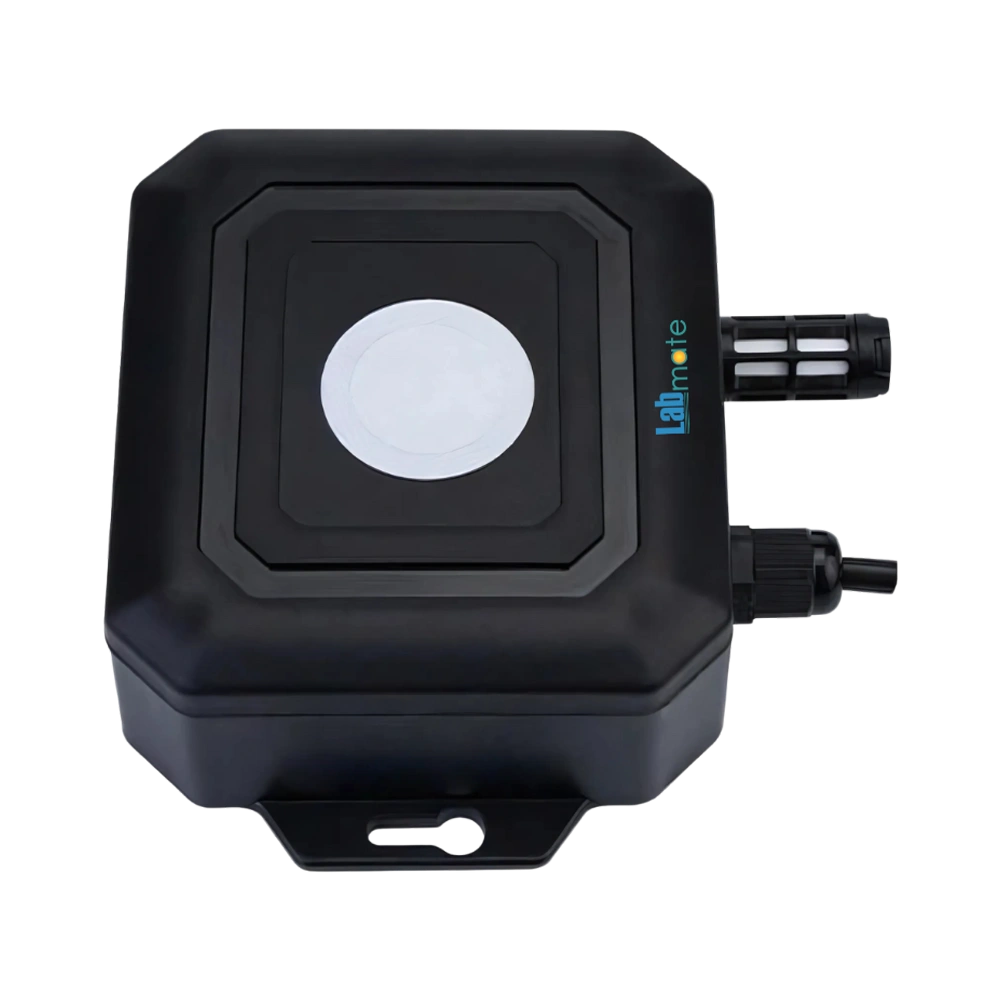

Ammonia Gas Detector LMAMD-A102 detects ammonia and operates in 0.9 to 1.1 atmospheric pressure range. Equipped with electrochemical sensing technology that delivers measurement within ±3% of reading at 25℃. Integrated with sealed and moisture-resistant housing ensures continuous performance from –20 to 40°C. Incorporated with rapid detection that provides response less than 15 seconds. Our Detector suits cold storage, fertilizer plants, pharma units, chemical sites, oil fields and greenhouses.
Specifications
| Working Pressure Range | 0.9 to 1.1 atm |
| Measurement Accuracy | Less than or equal to ±3% of reading at 25℃ |
| Working Temperature Range | –30 to 50°C (–20 to 40°C continuous) |
| Response Time | Less than 15s |
| Measurement Range | 0 to 100 ppm / 0 to 1000 ppm / 0 to 5000 ppm |
| Working Humidity Range | 0 to 100%RH (15 to 95%RH recommended) |
| Baud Rate (RS485) | 2400, 4800, 9600 |
| Signal Output | 4 to 20mA, 0 to 5V, 0 to 10V, RS485 |
| Protection Class | IP65 |
| Output Current Load | Less than or equal to 600 ohms |
| Output Voltage Load | Less than or equal to 250 ohms |
| Power Consumption | RS485: less than or equal to 0.15 W; Analog: less than or equal to 1 W |
| Power Supply | 12 to 24VDC |
| Dimensions | 134 × 100 × 46 mm |
| Net Weight | 0.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Ammonia Gas Detector LMAMD-A102 | $ 2181.25 | Each of 1 |
Features
Wall-mounted enclosure
Multiple output options
Stable signal
Waterproof sealed shell
Low power consumption
Standard Accessories
| Model No. | Accessories |
| LMAMD-A102-S1 | Screw |
| LMAMD-A102-N1 | Nut |
Applications
Ammonia Gas Detector LMAMD-A102 supports ammonia detection in industrial plants, cold storage units, agricultural sites, oil fields, refineries, and environmental monitoring zones.
