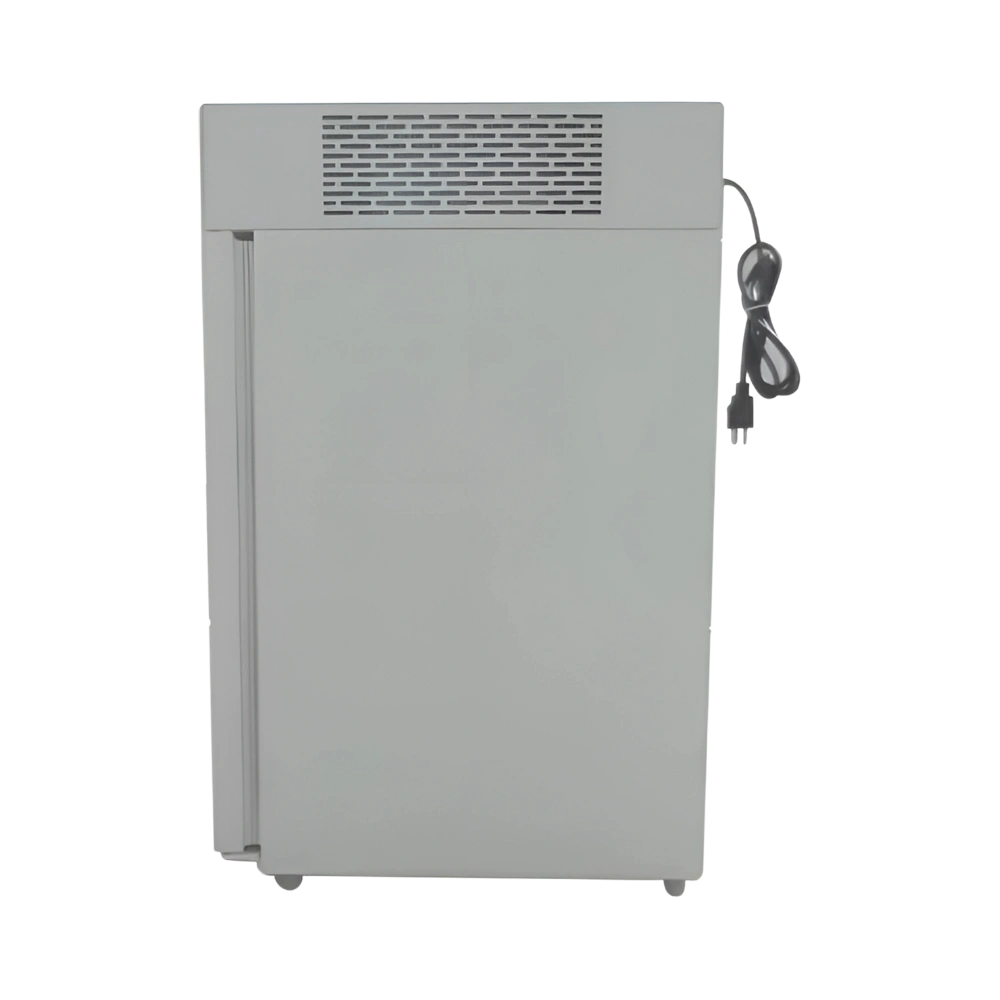

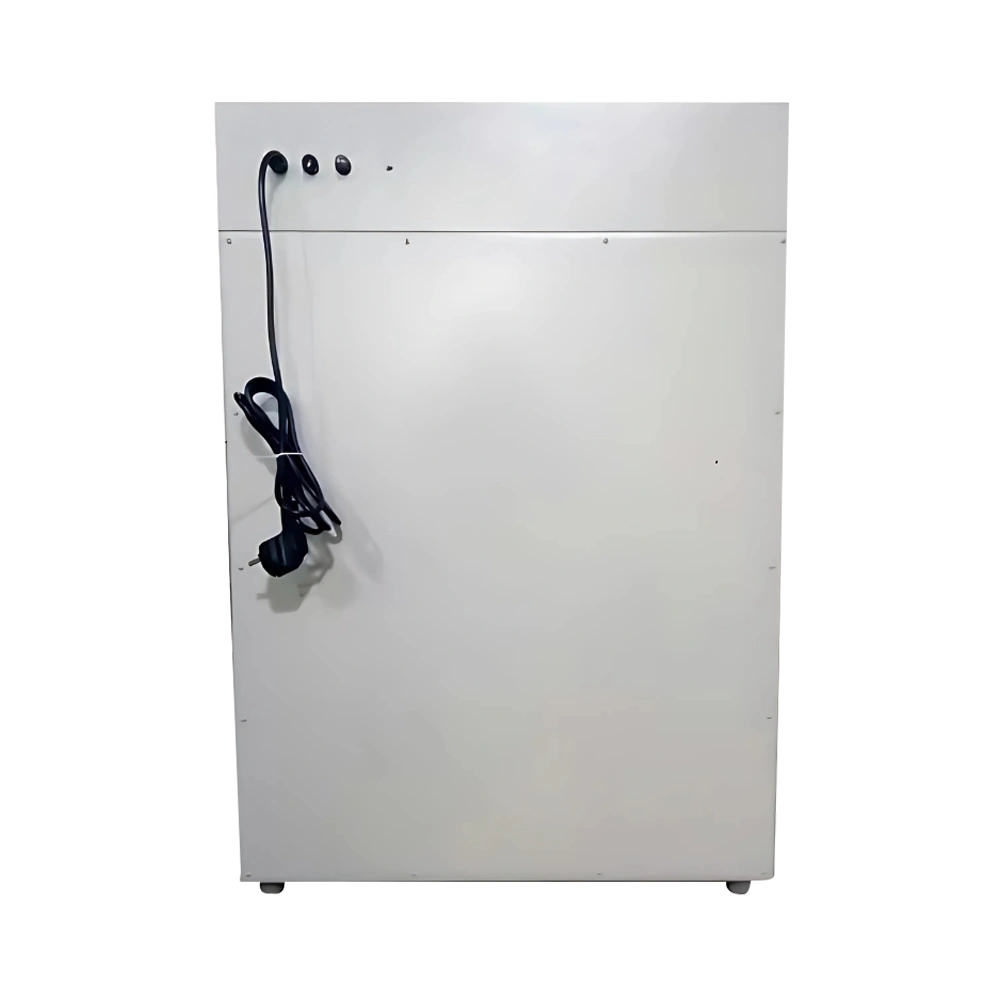

Water Jacketed Incubator LMWJ-A101

Water Jacketed Incubator LMWJ-A101

Labmate Water Jacketed Incubator LMWJ-A101 works on the communal principle of the water jacket heating to be responsible for a constant temperature for a long period. The body of the equipment is made up of powder coated steel housing to provide rigidity. There are two doors, the inner door made up of high quality glass to maintain the required temperature and for safety. It is provided with a pre-set programmed control with timing range up to 99 hours for power-on, power-off and working.

Get Quote
Chamber volume 80 L
Temp. Control Range RT+5°C~65°C
Temp. Accuracy ±0.1°C at 37°C
Temp. Fluctuation ±0.2°C
Temp. Uniformity ±0.3°C at 37°C
Temp. Controller PID microprocessor control, soft touch
Display LED display
Temp. Sensor PT100
Timer Power-on, power off and working. Timing range: 1min-99hr
Internal Material Mirror polished 304 stainless steel
External Material Steel (powder coating)
Inner Dimensions 400×400×500 mm
Outer Dimensions 550×500×790 mm
Net Weight 48.5 kg
Power Consumption ≤820 W
Shelf Size 395×378 mm
Shelf Qty(Standard/Maximum) 2 out of 4
Power Supply 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)

point.png Stainless steel shelves and chambers with round corners

point.png Easy to clean and sterilise

point.png Powder coated steel housing

point.png Double door system for safety

point.png Alarm indication for water level

point.png Temperature controller with high-speed, high-performance CPU chip

point.png Reasonable air circulation by fan for uniform chamber temperature

point.png High-sensitivity and high precision Pt resistance sensor

point.png Multiple alarming for sensor failure, high/low temperature deviation, over temperature and high/low water level

point.png Parameter memory

point.png Temperature display calibration

point.png Self-diagnostic control technology

Get Quote for
Water Jacketed Incubator LMWJ-A101
