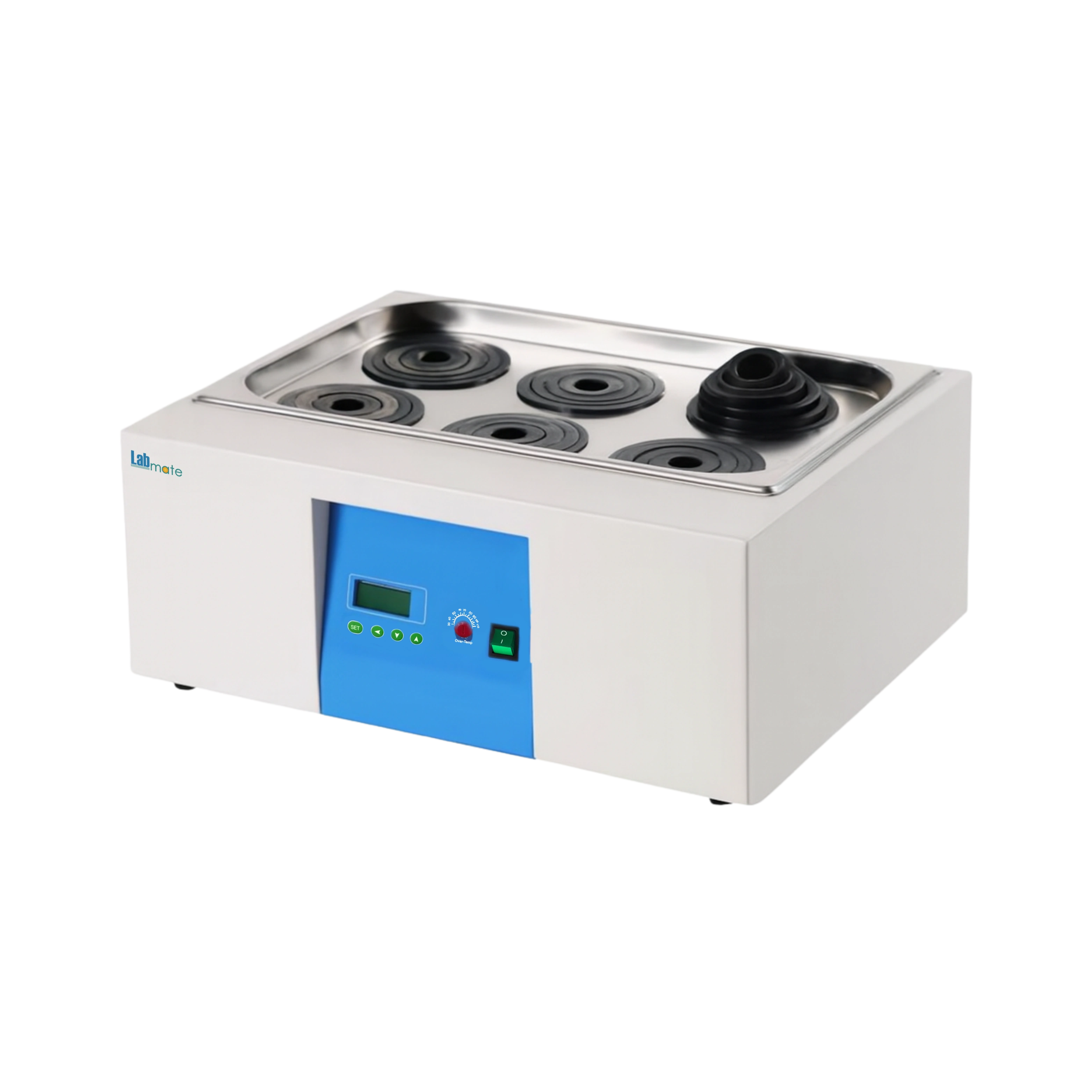

Thermostatic Water Bath LMTWB-A100

Thermostatic Water Bath LMTWB-A100 is a 20 L capacity heating water bath designed with 6 holes and 3 rows. It has a temperature stability of 0.5 ⁰C and a temperature range of RT +5 to 99 ⁰C. To prevent damage while in use, it has stainless steel shelves, a cover warmer, and a sensor. Easy to use controls that allow the user to monitor and set temperature and time. Simple-to-use features including deviation correction, menu key lock, backup power supply, and parameter restoration after power loss are incorporated.

Catalog Send Mail Whatsapp Get Quote

Specifications

Capacity	21 L
Holes	6 holes
Rows	3
Cover aperture	ɸ 92 mm
Material	Stainless steel
Temperature Range	RT +5 to 99 ⁰C
Temperature Stability	± 0.3 ⁰C
Temperature resolution	0.1 ⁰C
Temp Alarm	± 2 ⁰C
Timing Range	1 to 9999 min
Heating mode	Electric heating
Temperature setting mode	Touch button setting
Temperature control mode	PID control
Heater	Stainless steel U type heating tube
Sensor	PT100
Cover material	Stainless steel 304
Inner water sink	Stainless steel 304
Outer shell	Stainless steel 30
Power Supply	AC 220 V 60 Hz
Power Consumption	1500 W
Dimension (W×D×H)	290 × 490 × 150 mm
Display	LCD Screen

Features

Stamping moulding stainless-steel tank
LCD screen to display multiple data with timing function for the easy operation
Designed with stainless steel shelves cover heater and a sensor to avoid damage during use
Automatically heater cut off in case of lack of water
Audible alarm and temperature error alarm reminds user in time about errors
Independent temperature-limiting alarm system for convenience of the user
Allows to place test-tube holder in water bath

Applications

Thermostatic Water Bath is widely used in tissue culture, enzyme reaction studies, growth observation studies, fermentation analysis and to incubate samples.
