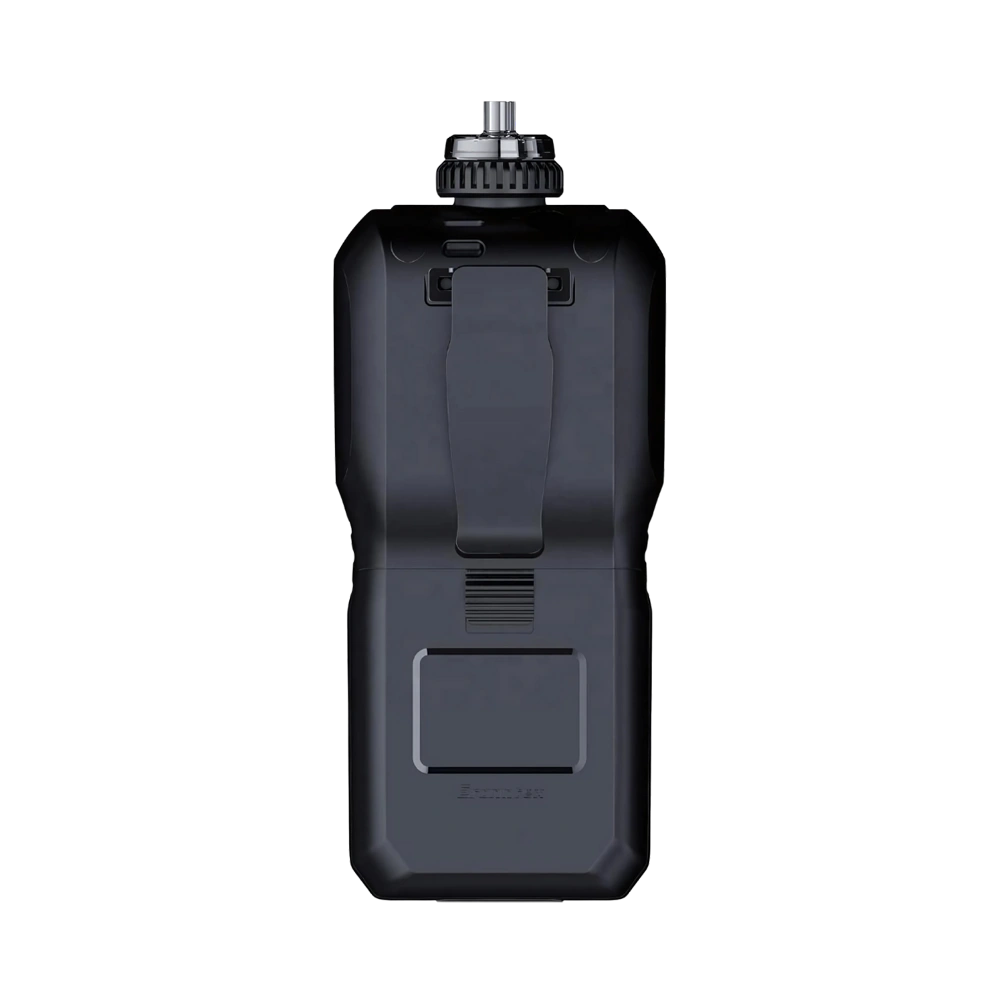

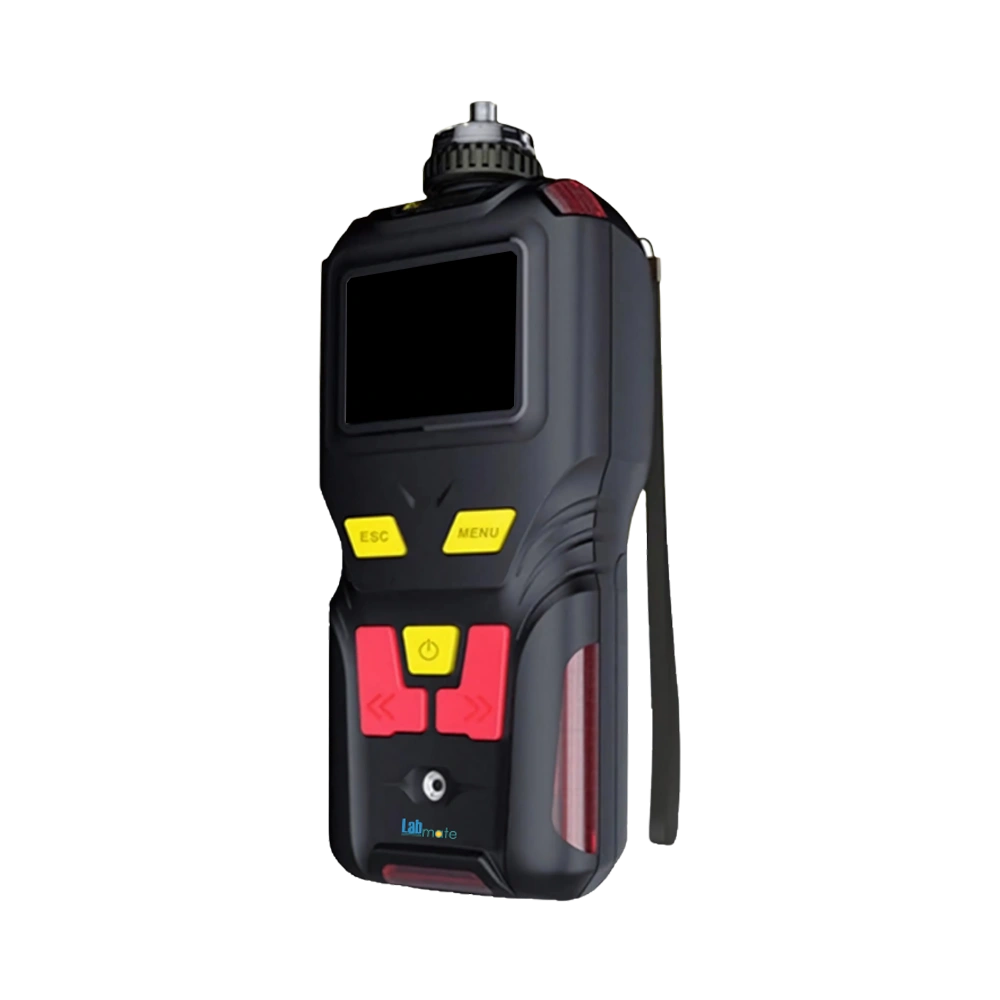

Portable Acetylene Gas Detector LMAGD-A100 is designed for simultaneous detection of carbon monoxide, hydrogen sulfide, oxygen with temperature and humidity monitoring. It features built-in pump suction system that enables continuous sampling at across industrial conditions. Integrated with color display and five-button control panel for real-time monitoring and user-friendly operation. Incorporated with dependable performance across extreme temperatures and humidity levels with rechargeable battery and protective circuitry. Our Detector is ideal for petroleum, chemical, flue gas analysis, and environmental safety monitoring sectors.
Specifications
| Gas Types | Composite gases: CO, H₂S, O₂ |
| Optional Parameters | Gas concentration, temperature, and humidity |
| Detection Range | 0 to 1, 10, 100, 1000, 5000, 50000 ppm ; 100 MG/L; 100% LEL; 20%, 50%, 100% Vol |
| Detection Accuracy | Less than or equal to ±3% F. S |
| Resolution | 0.001 ppm to 1 ppm (range dependent), 0.01 MG/L; 0.1% LEL, 0.001% to 0.01% Vol |
| Detection Principles | Electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor |
| Detection Method | Built-in pump suction, 500 mL/min flow rate |
| Display | 2.31-inch color HD screen |
| Operation | 5-button interface |
| Linearity | Less than equal to ±2% |
| Repeatability | Less than equal to ±2% |
| Alarm Modes | Sound, light, vibration, visual, combination modes, alarm shutoff optional |
| Operating Temperature Range | -40℃ to +70℃ |
| Operating Humidity Range | 0 to 99% RH; suitable for high humidity/dust with built-in filter |
| Sample Gas Temperature Range | -40℃ to +70℃ |
| Temperature Measurement Range | -40℃ to +120℃ |
| Humidity Measurement Range | 0 to 100% RH |
| Data Storage | 100,000 records, exportable; configurable storage settings |
| Battery | 4500 mAh rechargeable polymer with multiple protection features |
| Power Supply | DC 3.7V |
| Dimensions | 160 × 70 × 28 mm |
| Weight | 300 g |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Acetylene Gas Detector LMAGD-A100 | $ 3337.5 | Each of 1 |
Features
Stores data for review and export
Alerts with sound, light, and vibration
Handle rough conditions
Safe battery system

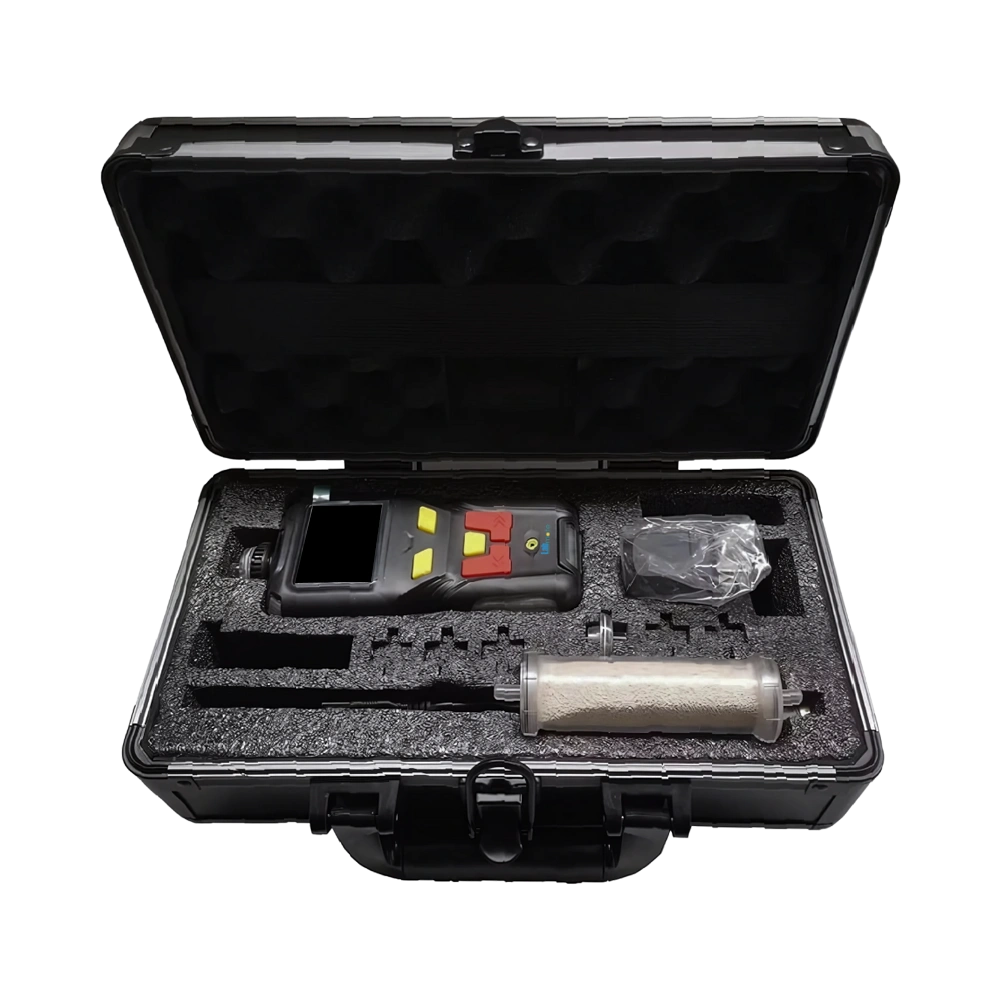

Standard Accessories
LMAGD-A100-U1 | USB charger with data cable |
LMAGD-A100-B1 | Back clip |
LMAGD-A100-H1 | Humidity and dust filter |
LMAGD-A100-E1 | 1.2 m extendable sampling handle with 1 m standard hose |
LMAGD-A100-T1 | Temperature and humidity measurement function module |
LMAGD-A100-C1 | High temperature sampling and cooling filter handle |
LMAGD-A100-P1 | High temperature and high humidity pretreatment system |
LMAGD-A100-F1 | Additional humidity and dust filter set |
Applications
Portable Acetylene Gas Detector LMAGD-A100 is commonly applied in petroleum plants, chemical processing units, and industrial safety zones. It also supports emission monitoring, flue gas analysis, and air quality inspection tasks.
Frequently Asked Questions
1 What is a Portable Acetylene Gas Detector?
A Portable Acetylene Gas Detector is an apparatus designed to detect the presence and concentration of acetylene gas in the environment.
2 How does Portable Acetylene Gas Detector work?
It works by using sensors to detect acetylene gas concentrations and alerting users to potential leaks or hazardous levels.
3 What kind of maintenance does Portable Acetylene Gas Detector require?
Routine maintenance includes proper calibration, functional checks, sensor replacement, and battery maintenance to ensure accurate performance.
4 How is Portable Acetylene Gas Detector used in welding applications?
It is used to ensure the safe monitoring of acetylene gas levels, preventing leaks and reducing the risk of fire or explosion during cutting, welding, and brazing processes.
5 Can Portable Acetylene Gas Detector be used in confined spaces?
It is ideal for confined spaces where acetylene gas could accumulate, such as tanks or small rooms, providing real-time readings and early warning signals.
6 Can Portable Acetylene Gas Detector be used during maintenance of acetylene cylinders?
It is essential during maintenance and inspection of acetylene cylinders, ensuring that no leaks are present before working on or around the cylinders.
7 How does Portable Acetylene Gas Detector help in hazardous area inspections?
It ensures safety during inspections of high-risk environments like gas refineries and construction sites by detecting acetylene gas presence and avoiding hazardous exposure.
8 Can Portable Acetylene Gas Detector be used in emergency gas leak detection?
It is an essential tool in emergency response, quickly identifying acetylene leaks in case of accidents, aiding in swift evacuation, and reducing risks to workers.
9 How does Portable Acetylene Gas Detector help in waste treatment facilities?
It is used to ensure a safe environment by monitoring potential gas emissions.
10 How does Portable Acetylene Gas Detector support fire and rescue services?
It helps emergency responders identify acetylene leaks in accident zones, fire-damaged buildings, or industrial sites, ensuring safe entry and response.
