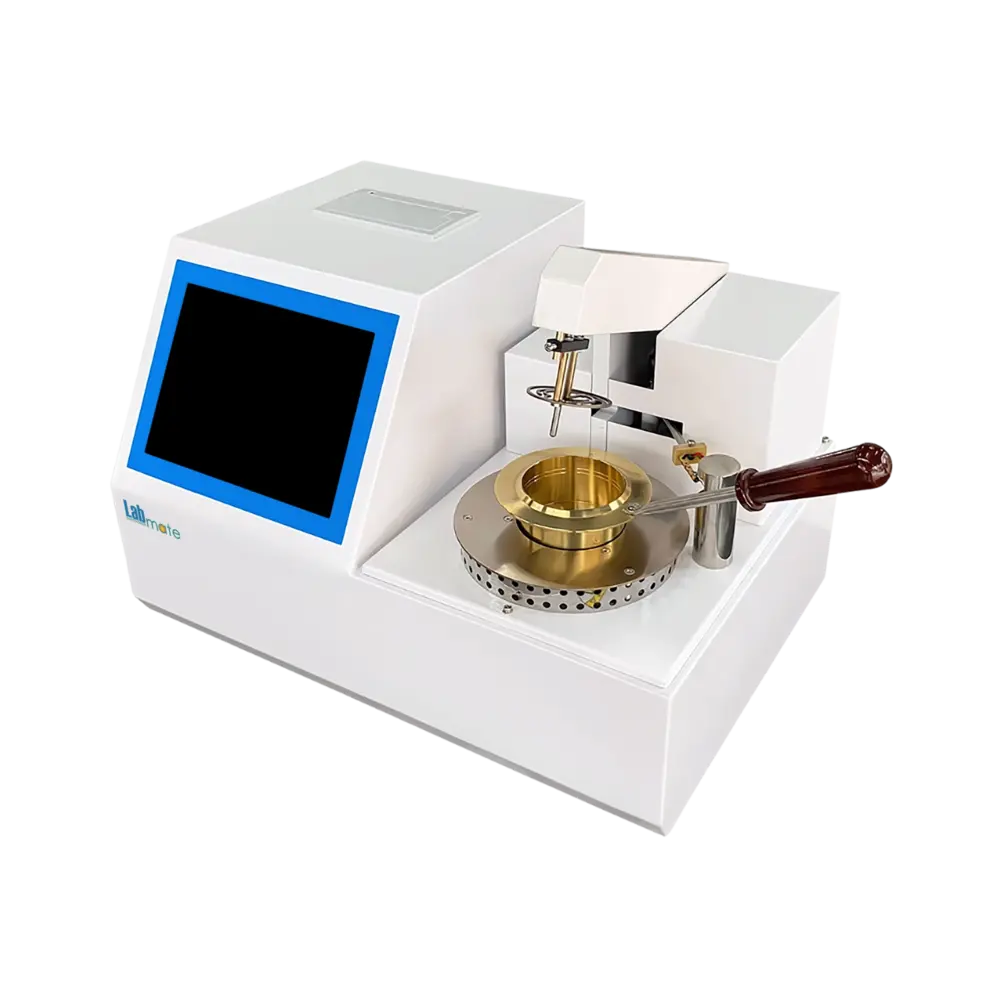

Open Cup Flash Point Tester LMFPT-A103 measures flash point across wide ranges from RT to 400 ℃. It automatically manages complete testing sequence, including lid opening, ignition, cooling, and printing. Equipped with high-speed signal processor and analog-to-digital converter for fast signal handling. Incorporates adaptive PID control to adjust heating curve as per defined standards. Our Flash Point Analyzer ensures temperature threshold detection of oils and fuels in quality control and safety inspections.
Specifications
| Test Range | RT to 400℃ |
| Test Method | Thermocouple differential detection |
| Repeatability | ±2℃ |
| Ignition Mode | Automatically electronic ignition |
| Temperature Detector | Imported precision platinum resistance |
| Display | 7-inch color touch LCD display screen |
| Printer | Thermal printer; paper size:44mm |
| Self-Checking | Printer, igniter, electromagnetic valve, detection arm movements, ignition rod stroke etc. |
| Data Storage Capacity | 300 groups |
| Ambient Temperature | 10 to 45℃ |
| Relative Humidity | 30 to 80% |
| Power Consumption | Less than 700w |
| Power Supply | AC220V±10% |
| Dimension | 400×300×240 mm |
| Weight | 20 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Open Cup Flash Point Tester LMFPT-A103 | $ 3000 | Each of 1 |
Features
Color touchscreen display
Bias correction system
Over-temperature protection
Fully automatic operation
Sequential process detection
Stable flame source
Applications
Open Cup Flash Point Tester LMFPT-A103 is ideal for determining flash points of oils and fuels in quality control and safety inspections. Widely applied in petroleum, chemical, power, environmental, railway, and industrial laboratories.
Similar Products
$ 8300 / Pack of 1
$ 1637.5 / Pack of 1
Frequently Asked Questions
1 What is an Open Cup Flash Point Tester?
An Open Cup Flash Point Tester is an apparatus designed to determine the flash point of petroleum products and other liquids by heating them in an open cup and observing the temperature at which vapors ignite.
2 How does Open Cup Flash Point Tester work?
It works by gradually heating a liquid sample in an open container while periodically applying a test flame to detect the temperature at which vapor ignition occurs.
3 Why is Open Cup Flash Point Tester important for safety testing?
It is important for safety testing because it identifies the lowest temperature at which a material can form an ignitable mixture in air, helping prevent fire hazards during handling and storage.
4 How is Open Cup Flash Point Tester used in the petroleum industry?
It is used in the petroleum industry to measure the flash point of fuels, lubricants, and crude oils, ensuring these products meet safety regulations for storage, transportation, and handling.
5 How does Open Cup Flash Point Tester support chemical manufacturing processes?
It supports chemical manufacturing by identifying the temperature at which a solvent or chemical may ignite, allowing manufacturers to implement appropriate fire prevention and containment strategies.
6 Is Open Cup Flash Point Tester useful in environmental testing labs?
It is useful in environmental testing labs for analyzing waste oils and contaminated liquids to determine their classification and proper disposal methods based on flammability risk.
7 How is Open Cup Flash Point Tester applied in the food processing industry?
It is applied in the food processing industry to test the flash point of industrial-grade food oils and lubricants used in machinery.
8 How does Open Cup Flash Point Tester benefit waste management facilities?
It benefits waste management facilities by determining whether liquid waste materials are flammable, which affects disposal methods and environmental hazard classification.
9 Why is Open Cup Flash Point Tester important in mining operations?
It is important in mining operations to evaluate the flammability of hydraulic fluids and lubricants used in heavy machinery operating under high pressure and temperature conditions.
10 How can Open Cup Flash Point Tester be used in forensic laboratories?
It is used in forensic laboratories to test liquid samples collected from fire scenes or crime investigations for flammable residues, helping determine the presence of accelerants.
