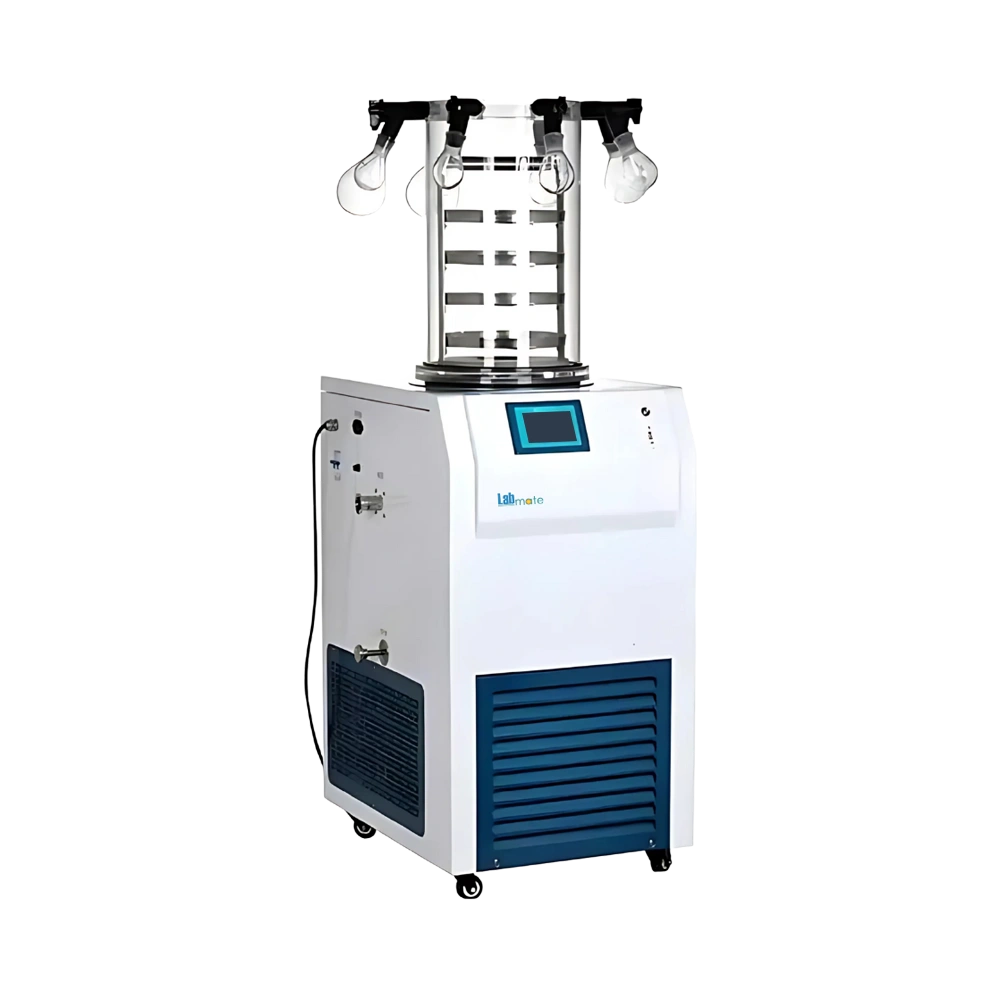

Multi-Manifold Freeze Dryer LMMFD-A102 is designed with freezing at -60℃. It features pre-freezing with one-click defrosting capability for convenience. Equipped with parameter display for cold trap temperature, vacuum level, sample temperature, and working time. Incorporates data viewing, exporting, deleting, and auto-saving with USB export support. Our Freeze Dryer ensure drying of food, medicine, and research samples in diverse settings.
Specifications
| Drying Area | 0.18 m² |
| Condenser Temperature | -60℃ |
| Ice Capacity Per Batch | 6 Kg |
| Pumping Speed | 4 L/S |
| Number Of Material Tray | 4 |
| System Vacuum Degree | 0.1Pa |
| Standard Vacuum Degree | Less than or equal to 5Pa (no-load) |
| Eggplant Shaped Flask | 100ml×2, 150ml×2, 250ml×2, 500ml×2 |
| Vial Loading Capacity | Vial ɸ 12mm: 1270 pieces, Vial ɸ 16mm: 716 pieces, Vial ɸ 22mm: 379 pieces |
| Noise | Less than or equal to 55dB |
| Ambient Temperature | Less than or equal to 35°C |
| Disc Spacing | 70mm |
| Power Consumption | 1100W |
| Power Supply | AC220V 50HZ or 110V/60HZ |
| Tray Diameter | 240 mm |
| Dimension | 560×560×980 mm |
| Packaging Dimension | 630× 670×1500 mm |
| Net Weight | 88 Kg |
| Gross Weight | 150 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Multi-Manifold Freeze Dryer LMMFD-A102 | $ 6862.5 | Each of 1 |
Features
Hybrid cooling mechanism
Maintenance alert function
Quick coupling clamp
Transparent vacuum hood
Front ventilation window
Air exhaust outlet
Mobile caster wheels
Applications
Multi-Manifold Freeze Dryer LMMFD-A102 enables drying and preservation of heat-sensitive substances, biological samples, and research material in pharmaceuticals, food processing, and chemical industries.
