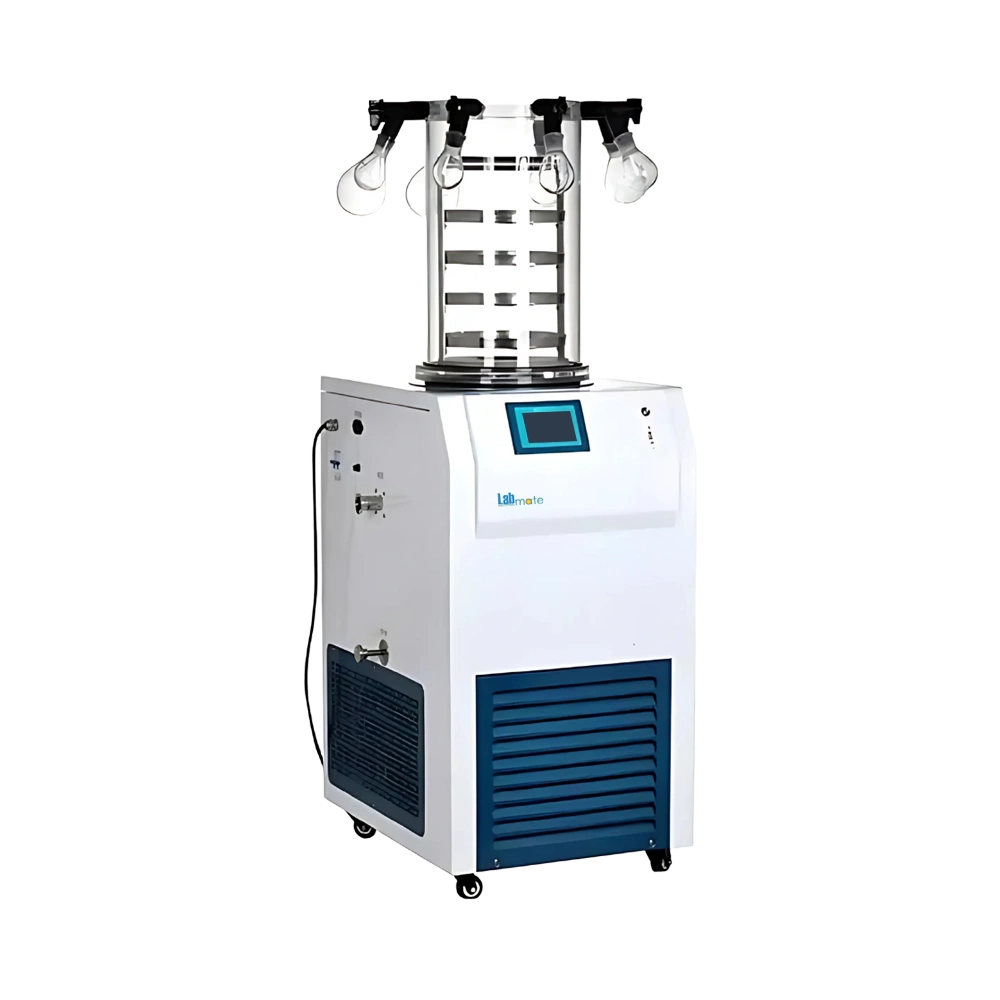

Multi-Manifold Freeze Dryer LMMFD-A101 provides condenser temperature of -60℃. It features transparent vacuum hood, sealing gasket, and acrylic flange for clear visibility and airtight operation. Equipped with multiple material trays and shelves, it accommodates different sample quantities. Incorporates built-in reminder that notifies when maintenance is required for continuous performance. Our Freeze Dryer ensure drying of food, medicine, and research samples.
Specifications
| Drying Area | 0.12 m² |
| Condenser Temperature | -60℃ |
| Ice Capacity Per Batch | 4 Kg |
| Pumping Speed | 2 L/S |
| Number Of Material Tray | 4 |
| System Vacuum Degree | 0.1Pa |
| Standard Vacuum Degree | Less than or equal to 5Pa (no-load) |
| Eggplant Shaped Flask | 100ml×2, 150ml×2, 250ml×2, 500ml×2 |
| Vial Loading Capacity | Vial ɸ 12mm: 849 pieces, Vial ɸ 16mm: 470 pieces, Vial ɸ 22mm: 252 pieces |
| Noise | Less than or equal to 55dB |
| Ambient Temperature | Less than or equal to 35°C |
| Disc Spacing | 70mm |
| Power Consumption | 950W |
| Power Supply | AC220V 50HZ or 110V/60HZ |
| Tray Diameter | 200 mm |
| Dimension | 480×600×770 mm |
| Packaging Dimension | 620×850×920 mm |
| Net Weight | 63 Kg |
| Gross Weight | 140 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Multi-Manifold Freeze Dryer LMMFD-A101 | $ 5062.5 | Each of 1 |
Features
Hybrid cooling mechanism
Color touch screen
Auto data saving
USB export support
Quick defrost button
Rapid coupling clamp
Applications
Multi-Manifold Freeze Dryer LMMFD-A101 is applied for drying and preserving heat-sensitive substances, biological samples, and research material in pharmaceuticals, chemical industry, food processing, and universities.
