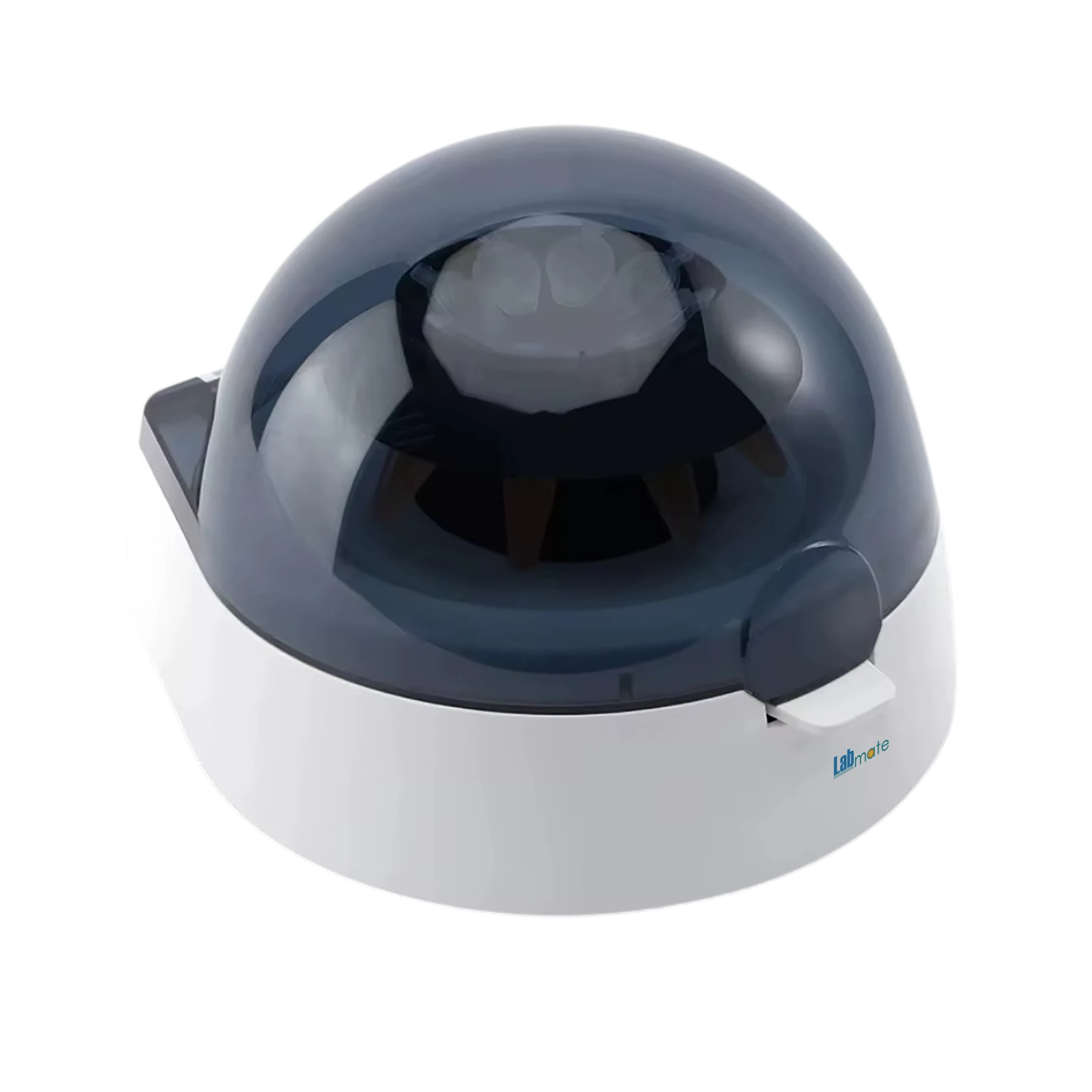

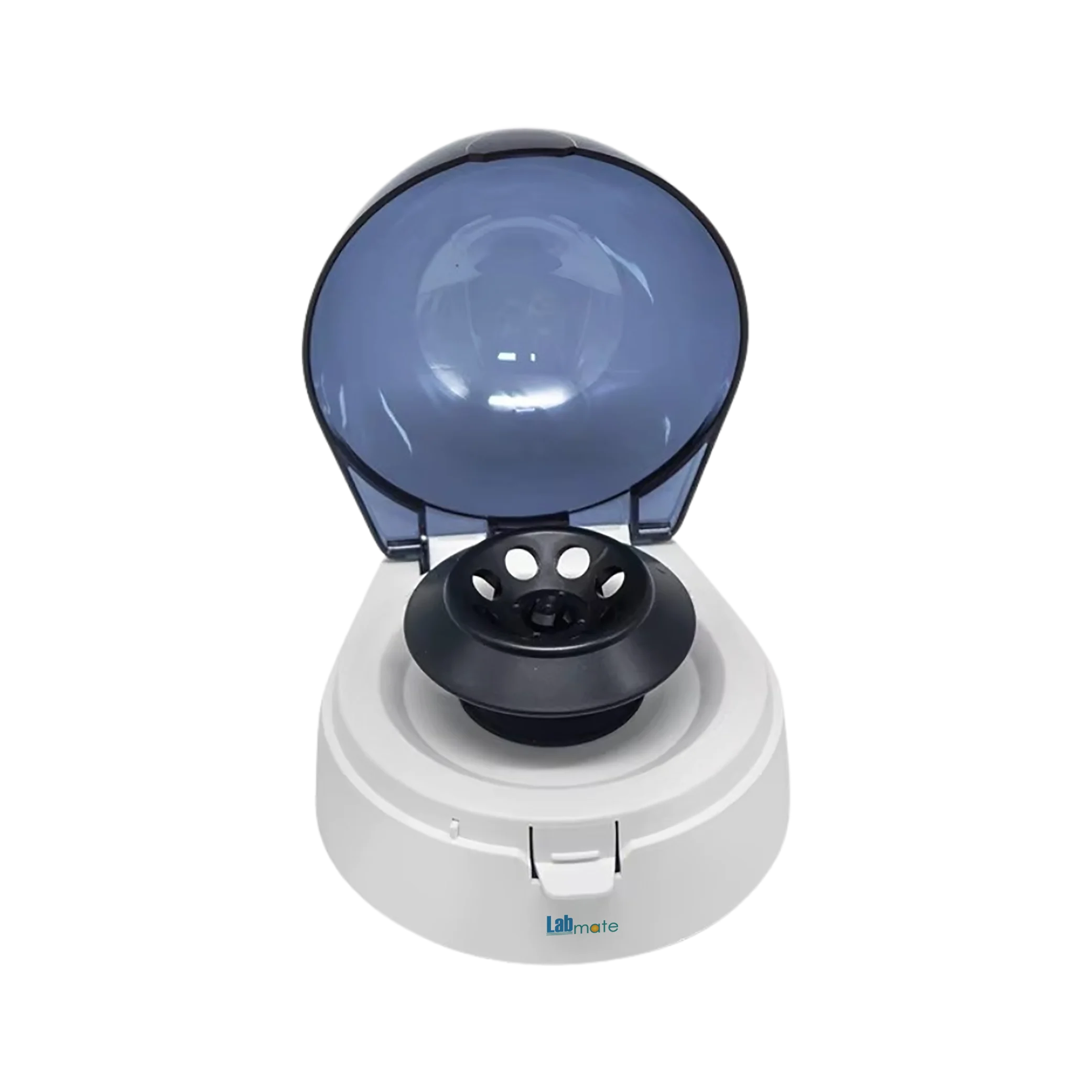

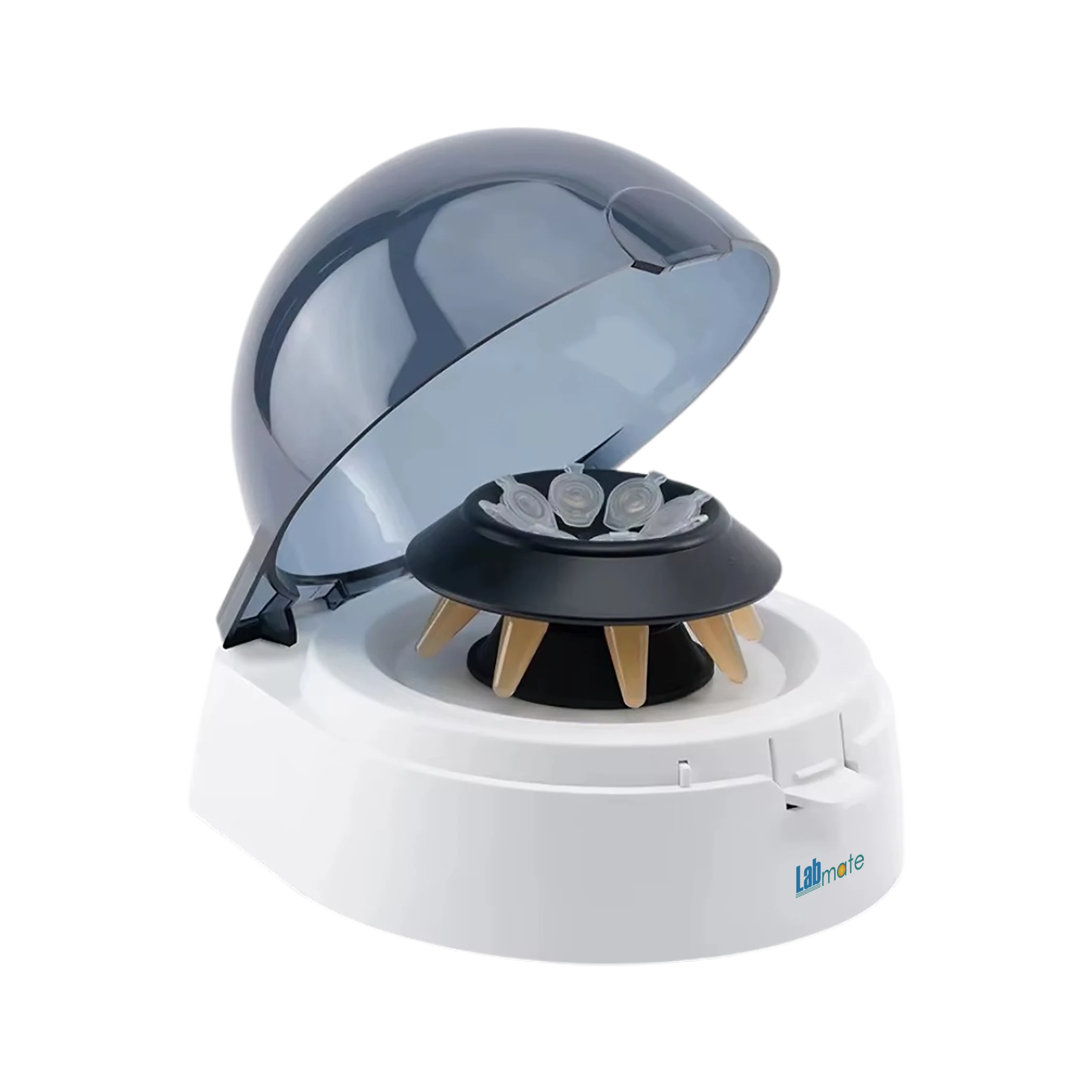

Mini Centrifuge LMCM-B101 is a compact benchtop model which is ideal for a variety of laboratory applications. It has a centrifugal speed of 12000 rpm ± 5 % and a maximum RCF of 8550 x g, making it suitable for a wide range of sample sizes and densities. The aesthetically pleasing tool is equipped with a brushless DC motor that provides noiseless and vibration-free operation. Constructed with an ergonomic design and user-friendly usage mode, it is easy to use for both experienced and inexperienced users.
Get Quote| Maximum Speed | 12000 rpm ± 5 % |
| Maximum RCF | 8550 x g |
| Allowable ambient temperature | 5 to 40 °C |
| Relative Humidity | 80 % RH |
| Fastest acceleration time | ≤ 12 s |
| Fastest Deceleration time | ≤ 16 s |
| Motor | DC 24 V |
| The noise at highest speed | ≤ 47 dB (A) |
| Rate of Work Input | 30 W |
| Power Supply | AC85-264V/50/60Hz |
| Power Fuse | PPTC / self-recovery fuse / No replacement needed |
| Control Method | PI / Power direct drive |
| Protection Level | IP 21 |
| Rotor Capacity | 2 / 1.5 / 0.5 / 0.2 ml × 80.2 ml × 8 × 4 (PCR) |
| Packaging Dimension | 280×250×180 mm |
| Packaging Weight | 2 kg |
Enhanced Microcontroller: The flash memory microcontroller provides high performance by storing more data and programs
Requires less Bench area space: The compact, lightweight, small-size structure uses less bench space
Versatile Model: Can fit in 2 ml, 1.5 ml, 0.5 ml, and 0.2 ml tubes, making it versatile for a variety of applications
High-speed safety feature: Protects the unit from damage by preventing it from operating at high speeds
Tool-free rotor exchange: Allows for tool-free rotor exchange, which makes it easy to change rotors without the need for special tools
Noise and vibration-free operation: Makes the device quieter and more stable
Visual alarm and False audio system: Alerts the users to any problems with the device
Shock absorbent RSS material: Provides more stable operations by absorbing shocks and vibrations
Interlocking Lid: Prevents from being ejected during spinning, which can prevent accidents and contamination
Mini Centrifuges are widely used for macromolecule separation, clinical analysis, PCR and HPLC analysis, fast centrifugation, and microbial sample processing in clinical research, pharmaceutical and cosmetic manufacturing and food and beverage industries.
| Rotor Name | Measurement |
| Angle rotor 01 | 8×1.5/2 ml angle |
| PCR rotor 01 | 0.2 ml ×8×4 |
| Adapter 01 | 0.5 ml |
| Adapter 02 | 0.2 ml |
