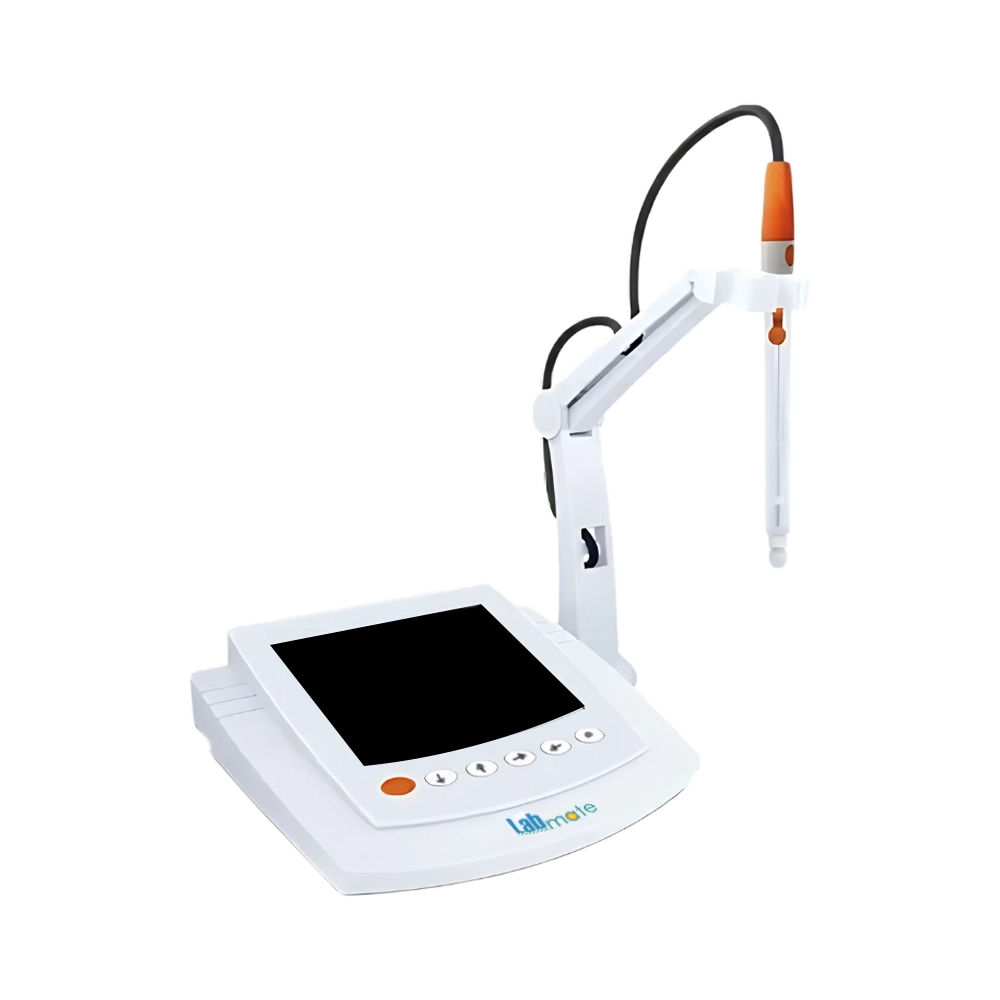

Iodine Meter LMIDM-A100 is designed for the measurement of iodine ion concentrations within a range of 0.06 to 127000 ppm. With a direct ion concentration readout, it simplifies the measurement process for accurate results. It features an LCD display and a user-friendly system menu for easy setting of parameters. Implements an automatic electrode diagnosis function to maintain sensor performance.
Specifications
| I Measurement Range | 1×10⁸ to 1M, 0.06 to 127000 ppm |
| I Measurement Accuracy | ± 1 % F.S. |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Temperature Measurement Range | 0 to 105 °C, 32 to 221 °F |
| Temperature Accuracy | ± 0.5 °C, ± 0.9 °F |
| Temperature Resolution | 0.1°C |
| Temperature Compensation | 0 to 100 °C, 32 to 212 °F |
| mV Range | (-1999.9) to 1999.9 Mv |
| mV Accuracy | ± 0.2 mV |
| mV Resolution | 0.1 mV |
| Calibration Points | 2 to 5 points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| Compensation Mode | Manual or automatic |
| Data Hold Function | Manual or automatic endpoint detection |
| Reset Function | Yes |
| Stability Condition | Low or high |
| Calibration Due | 0 to 31 days |
| Power Off | Manual or automatic (10,20,30 minutes) |
| Memory | Stores up to 500 sets of data |
| Output | USB communication interface |
| Connector | BNC |
| Display | LCD (130 × 110 mm) |
| Power | DC 5 V, using AC adapter, AC 220 V / 50 Hz |
| Dimension (L × W × H) | 210 × 188 × 60 mm |
| Weight | 1.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Iodine Meter LMIDM-A100 | $ 1875 | Each of 1 |
Features
Fitted with Iodine ion selective electrode
Advanced with a reset setting function
Integrated with auto hold function for better recording
Designed with a built-in real-time clock to timestamp events
Includes a USB communication interface to transfer and store data
Facilitates temperature compensation for accurate readings
Provided with stability indicator for real-time information
Upgraded with a calibration due reminder for regular calibration of the meter
Standard Accessories
Iodine ion selective electrode Temperature probe Standard solution (1000 ppm) Ionic strength adjuster (30 mL) USB cable DC 5 V Power adapter
Optional Accessories
I ion selective electrode range: 1×10⁸ to 1M, 0.06 to 127000 ppm Ion standard solutions: 480 mL / bottle Ionic strength adjuster: 480 mL / bottle Temperature probe with sensor
Applications
Iodine meter is used to measure the concentration of iodine in a given solution or substance. They are employed in various applications, including laboratory research, environmental monitoring, and industrial processes.
Frequently Asked Questions
1 What is an Iodine Meter?
An Iodine Meter is an apparatus designed to measure the concentration of iodine in a given solution.
2 How does Iodine Meter work?
It works by using either colorimetric, electrochemical, or spectrophotometric methods to detect and quantify the amount of iodine in a sample.
3 Why is Iodine Meter important in water testing?
It is important in water testing because it ensures safe and accurate levels of iodine, which is critical for disinfection and human health.
4 Can Iodine Meter be used in agricultural applications?
It is used in agriculture to assess iodine levels in soil, irrigation water, or livestock feed to prevent iodine deficiency or excess.
5 How does Iodine Meter help in environmental monitoring?
It is helpful in environmental monitoring to detect iodine levels in natural water sources, wastewater, and ecosystems to assess pollution or ecological impact.
6 How is Iodine Meter used in forensic or toxicology labs?
It is used in forensic or toxicology labs to quantify iodine in biological samples, chemical traces, or evidence related to poisoning cases.
7 How is Iodine Meter used in cold chain logistics monitoring for fortified foods?
It is used in cold chain logistics to confirm that iodine levels in fortified foods remain stable throughout refrigerated transport and storage.
8 How does Iodine Meter assist in cross-verifying analytical methods in R&D?
It assists R&D labs by serving as a secondary or reference tool to validate iodine levels determined by titration, chromatography, or spectroscopy.
9 Is Iodine Meter used in the petrochemical industry?
It is used in the petrochemical industry to monitor iodine number in hydrocarbons or measure iodine-based catalysts in certain reactions.
10 Is Iodine Meter used in biopharmaceutical production facilities?
It is used in biopharmaceutical production to monitor iodine-containing buffer solutions or to detect cross-contamination in multi-product facilities.
