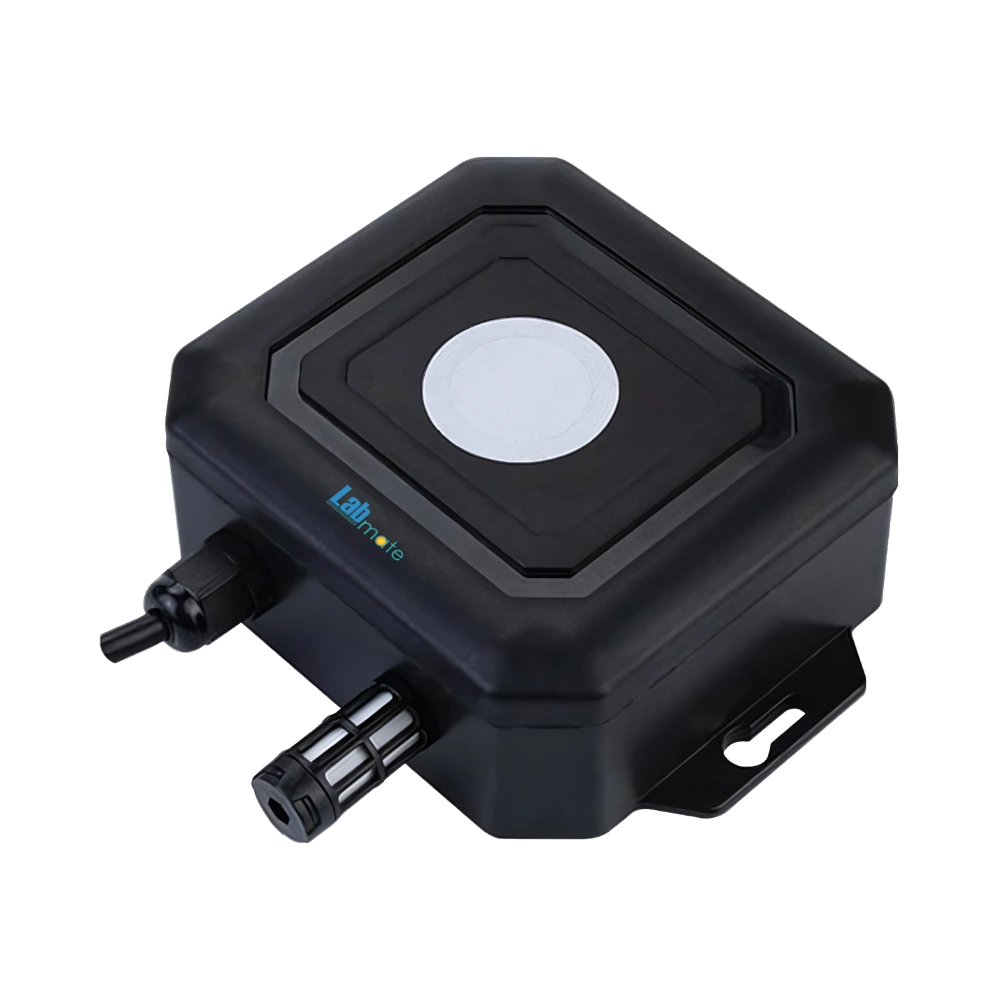

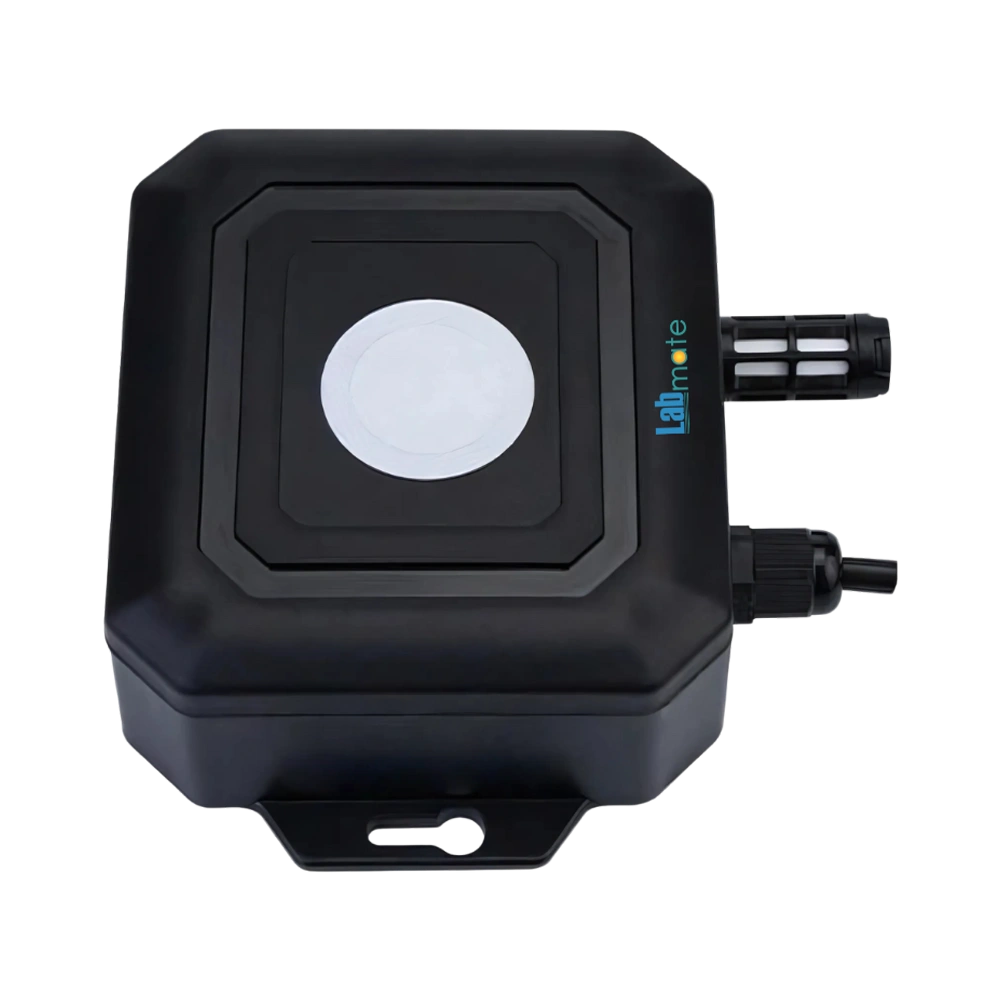

Hydrogen Sulfide Gas Detector LMHSD-A101 detects hydrogen sulfide and operates from 0.9 to 1.1 atmospheric pressure. Equipped with measurement range 0 to 100 ppm or 0 to 1000 ppm for reliable emission monitoring. Incorporated with robust components, supports continuous performance in –20 to 40°C temperature range. Integrated with fast-acting system, delivers response time of less than 15 seconds. Our Detector is suitable for oil refineries, sewage treatment plants, chemical manufacturing, pipelines and industrial safety monitoring.
Specifications
| Working Pressure Range | 0.9 to 1.1 atm |
| Measurement Accuracy | Less than or equal to ±3% |
| Baud Rate (RS485) | 2400, 4800, 9600 |
| Measurement Range | 0 to 100 ppm or 0 to 1000 ppm |
| Working Temperature Range | –30 to 50°C |
| Signal Output Range | 4 to 20mA, 0 to 5V, 0 to 10V, RS485 |
| Working Humidity Range | 0 to 100%RH (15 to 95%RH recommended) |
| Response Time | Less than 15s |
| Protection Class | IP65 |
| Output Current Load | Less than or equal to 600 ohms |
| Output Voltage Load | Less than or equal to 250 ohms |
| Power Consumption | Analog: Less than 1.15W |
| Power Supply | 12 to 24VDC |
| Dimensions | 134 × 100 × 46 mm |
| Net Weight | 0.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Hydrogen Sulfide Gas Detector LMHSD-A101 | $ 1993.75 | MOQ of 5 |
Features
User-friendly interface
Smart alarm system
Digital display
Electrochemical detection
Quick installation
Standard Accessories
| Model No. | Accessories |
| LMHSD-A101-S1 | Screw |
| LMHSD-A101-N1 | Nut |
Applications
Hydrogen Sulfide Gas Detector LMHSD-A101 is ideal for mining, biogas plants, paper mills, laboratories and food processing units.
