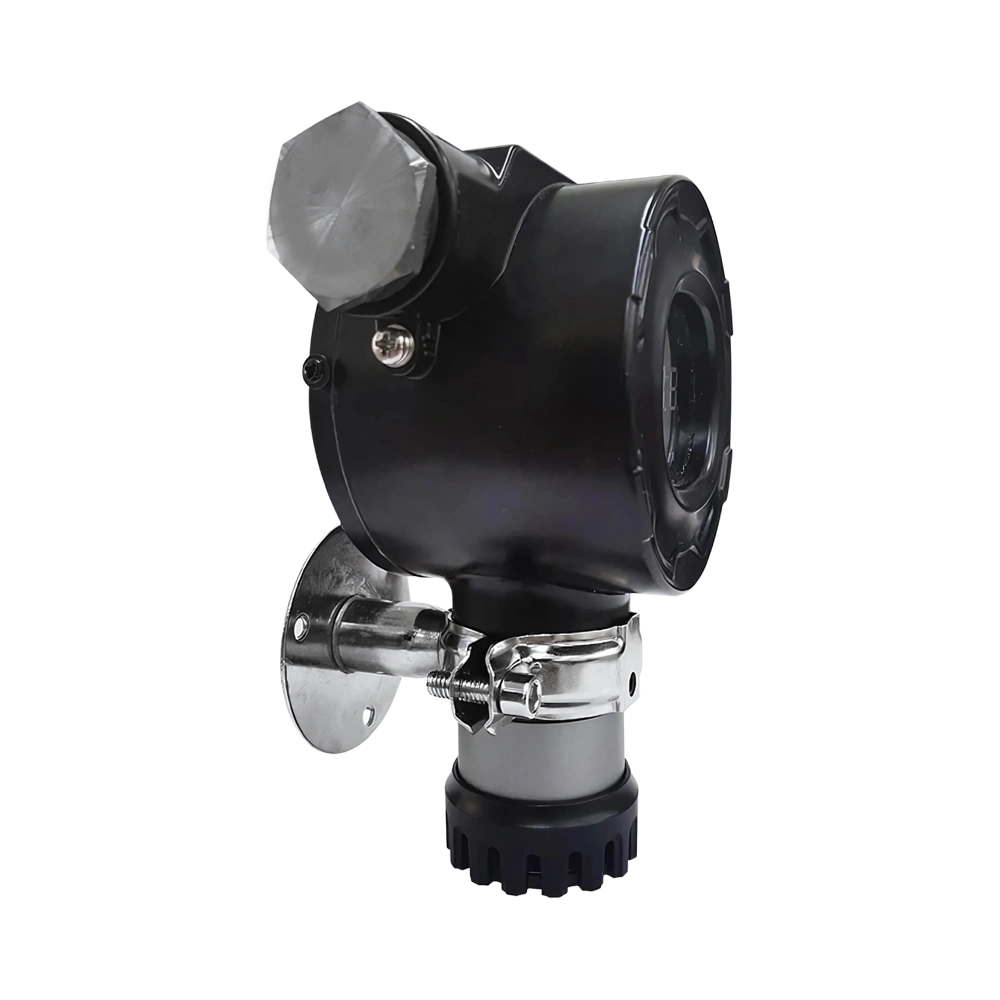

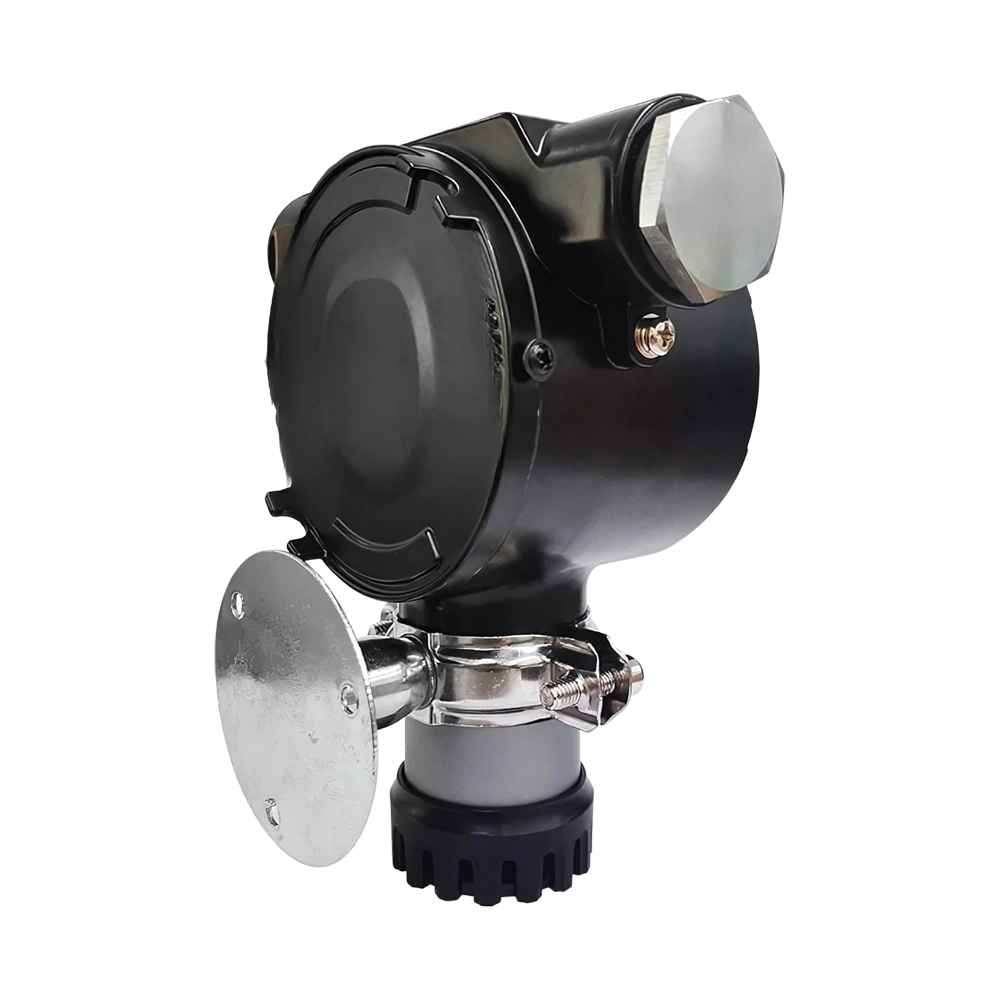

Hydrogen Sulfide Gas Detector LMHSD-A100 offers measurement range of 0 to 100 ppm. It features magnetic wand interface for safe, contactless menu navigation in hazardous locations. Equipped with compact body and convenient build, it simplifies installation in confined spaces. Incorporates modular sensor chambers that simplify calibration without full unit disassembly. Our Gas Detector monitors H₂S in industrial, municipal, and processing environments.
Specifications
| Gas Detected | H₂S |
| Measurement Range | 0 to 100 ppm |
| Detection Principle | Electrochemistry |
| Resolution | 0.1 ppm |
| Accuracy | Less than or equal to ±2 to 5% FS |
| Display | LED display |
| Working Temperature Range | –20 to 55°C |
| Working Pressure | 86 to 106 kPa |
| Power Dissipation | Toxic gas Less than or equal to 2.5W, Flammable gas Less than or equal to 4W |
| Communication Mode | 4 to 20mA, RS485 |
| Wireless Transmission | LORA |
| Housing Material | Die-cast aluminium |
| Electrical Interface | Standard internal screw thread M20 × 1.5 |
| Protection Grade | IP66/68 |
| Explosion-Proof Grade | IECEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb ；ATEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb |
| Power Supply | 24VDC |
| Dimension | 157.8×128.8×69.6 mm |
| Net Weight | 1 Kg |
| Gross Weight | 1.5 Kg |
Features
Real-time display
Intrinsic safety circuit
Multiple mounting modes
Relay output
Remote monitoring
Computer connectivity
Applications
Hydrogen Sulfide Gas Detector LMHSD-A100 is applied for monitoring H₂S in hazardous industrial environments, such as petrochemical plants, municipal systems, agriculture, electronics, food processing, and pharmaceutical sectors.
