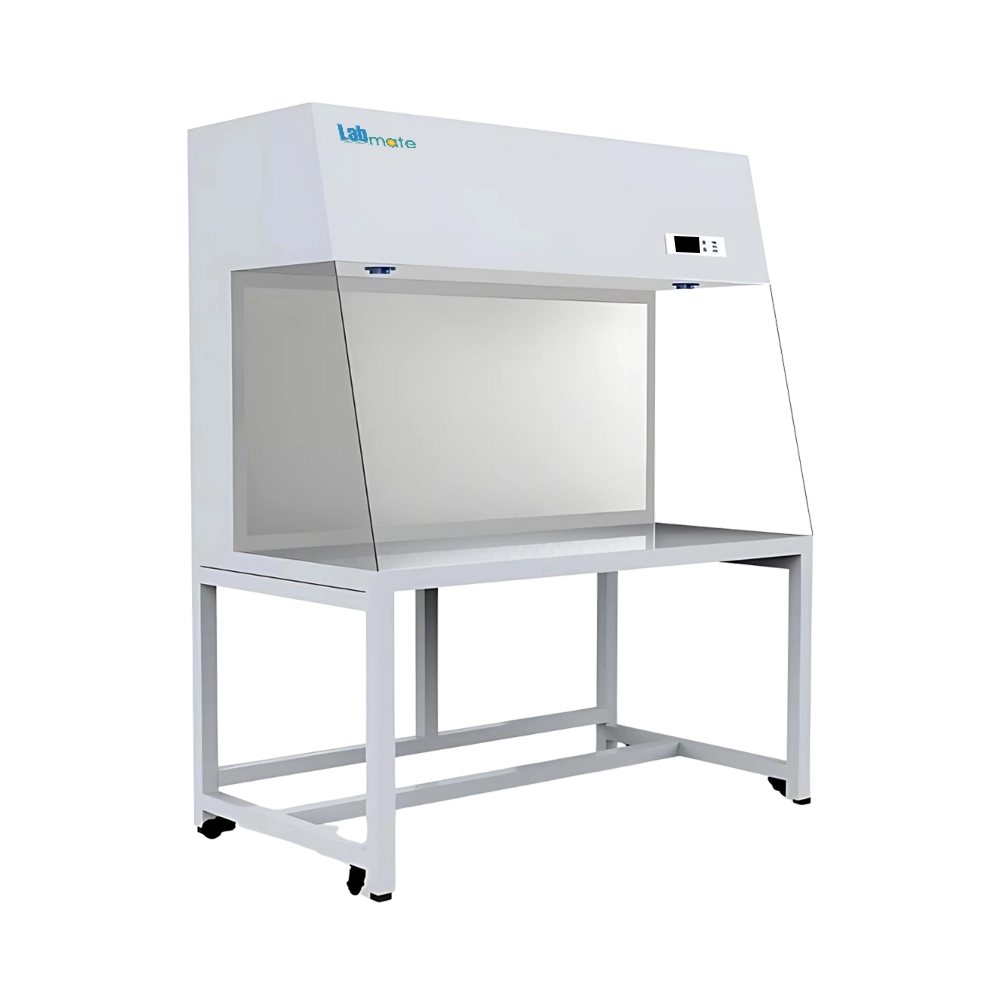

Horizontal Laminar Flow Cabinet LMLH-B100

Horizontal Laminar Flow Cabinet LMLH-B100 offers 59-inch layout for experimental workflow. It accommodates two-person interaction, enhancing productivity in controlled laboratory surroundings. Integrated HEPA filtration with 99.999% efficiency at 0.3 µm ensures superior airborne contamination control. Equipped with an advanced polyester fiber pre-filter to trapping larger particulates before secondary purification. Our Horizontal Laminar Flow Cabinet provides class 100 cleanliness for contamination-sensitive procedures.

Catalog Send Mail Whatsapp Get Quote

Specifications

Cabinet Size	59 inches
Cabinet Type	Single-side type
Capacity	Double Person
Airflow Velocity	0.3 to 0.5 m/s
Display	LCD Touch Panel
Glass Door Thickness	8 mm Side Glass
Pre-Filter	Polyester Fiber Filter
HEPA Filter	99.999 % efficiency at 0.3 µm
Chamber Material	Stainless-Steel
Cleanliness Class	Class 100
Working Surface Height	750 mm
Illumination	Greater than or equal to 350 Lux
Noise	Less than 65 dB
Contamination Control	Less than or equal to 0.5 CFU / time
UV Lamp	30 W
Illuminating LED Lamp	16 W
Power Consumption	620 W
Power Supply	AC 220 / 110 V ± 10 %, 50 / 60 Hz
Internal Dimension	1400 × 500 × 600 mm
External Dimension	1500 × 808 × 1690 mm
Gross Weight	185 kg

Features

Regulated Airflow System

Robust Stainless-Steel Chamber

LCD Display Panel

Illuminating LED Lamp

8 mm Thick Transparent Glass Panels

Standard Accessories

Model No	Accessory
LMLH-B100-B1	Base Stand
LMLH-B100-L1	LED Lamp
LMLH-B100-S1	Stainless steel IV Bar with 10 Hooks
LMLH-B100-U1	Universal caster (with levelling feet)
LMLH-B100-U2	UV Lamp
LMLH-B100-W1	Waterproof Socket

Optional Accessories

Model No	Accessory
LMLH-B100-E1	Electric height adjustable base stand

Applications

Horizontal Laminar Flow Cabinet LMLH-B100 is essential for maintaining controlled conditions during product testing, stability studies, and contamination-sensitive analysis in pharmaceutical environments.
