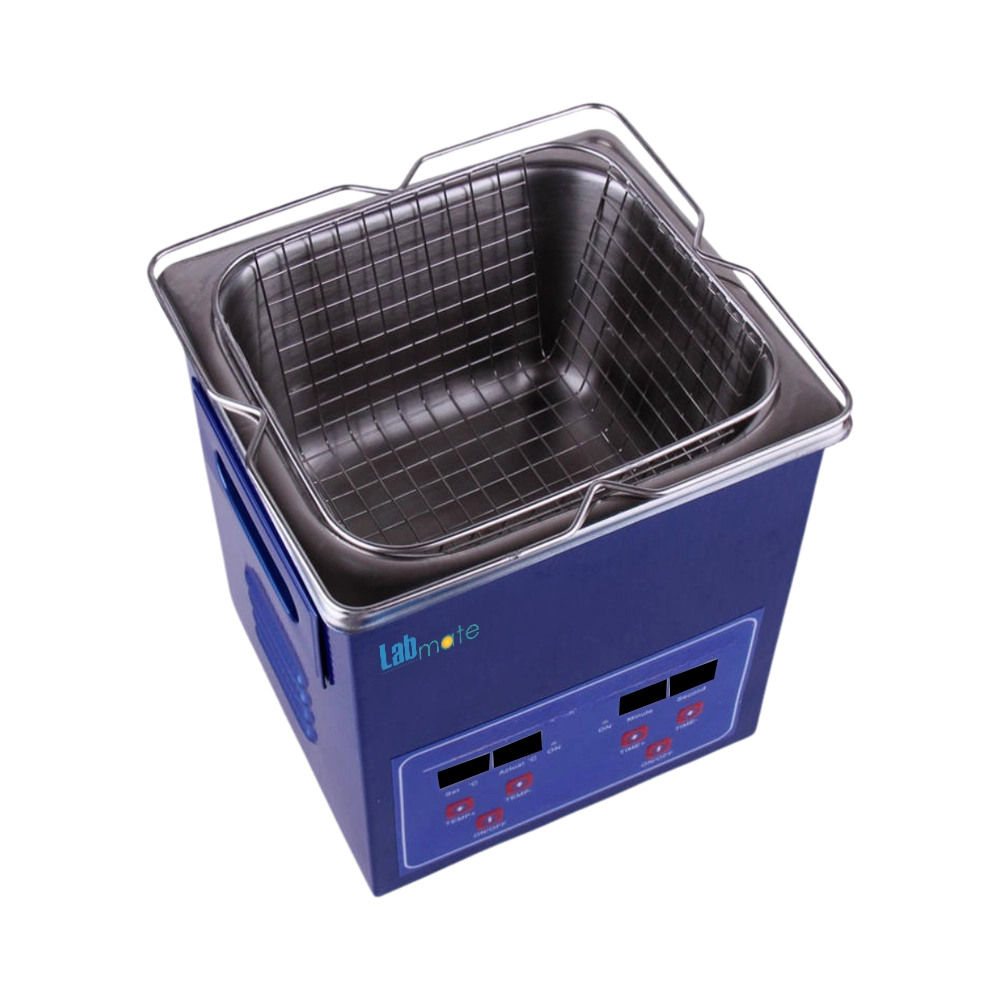

High Frequency Ultrasonic Cleaner LMHF-A105

Labmate High Frequency Ultrasonic Cleaner LMHF-A105 has a two in one ultrasonic source along with purge tank. It has a high power transducer cleaning with constant temperature system. It is a hands free cleaning system where it provides a deep cleaning of hole, fine draw and places that are usually difficult to clean.

Catalog

Specifications

Volume of purge tank 14.8 L
Material of purge tank 300 x 240 x 150 full stainless steel pressing basin, SUS304, maximum thickness 1.0mm
Frequency of ultrasonic wave 120 KHz
Quantity of transducer 6
Capacity control 144-360 W
Power of heater element 200 W
Time control 1-30 min
Power supply AC220 V/50 Hz 5 A
Net weight 8.5 kg
Gross weight 12 kg
Internal dimensions 330 x 300 x 150 mm
Exterior dimensions 355 x 330 x 280 mm

Pricing

Product Price Unit Action
High Frequency Ultrasonic Cleaner LMHF-A105 $2,650.00 Pack of 1

Features

Stainless steel chambers
Cleanout fluids- Ordinary tap water, alcohol or solvent
High-power transducer cleaning
Waterproof body for safe usage and longer life
Equipped with handle and drainage system
Fast cleaning to improve the production efficiency
Saves solvent and heat energy
With ultrasonic timing device, 1-30 minutes is adjustable
Digital display memory, set ultrasonic time and temperature
Set the power of the ultrasonic, range: 40% - 100%

Optional Accessories

Steel Cleaning Basket - LMHF-O1
