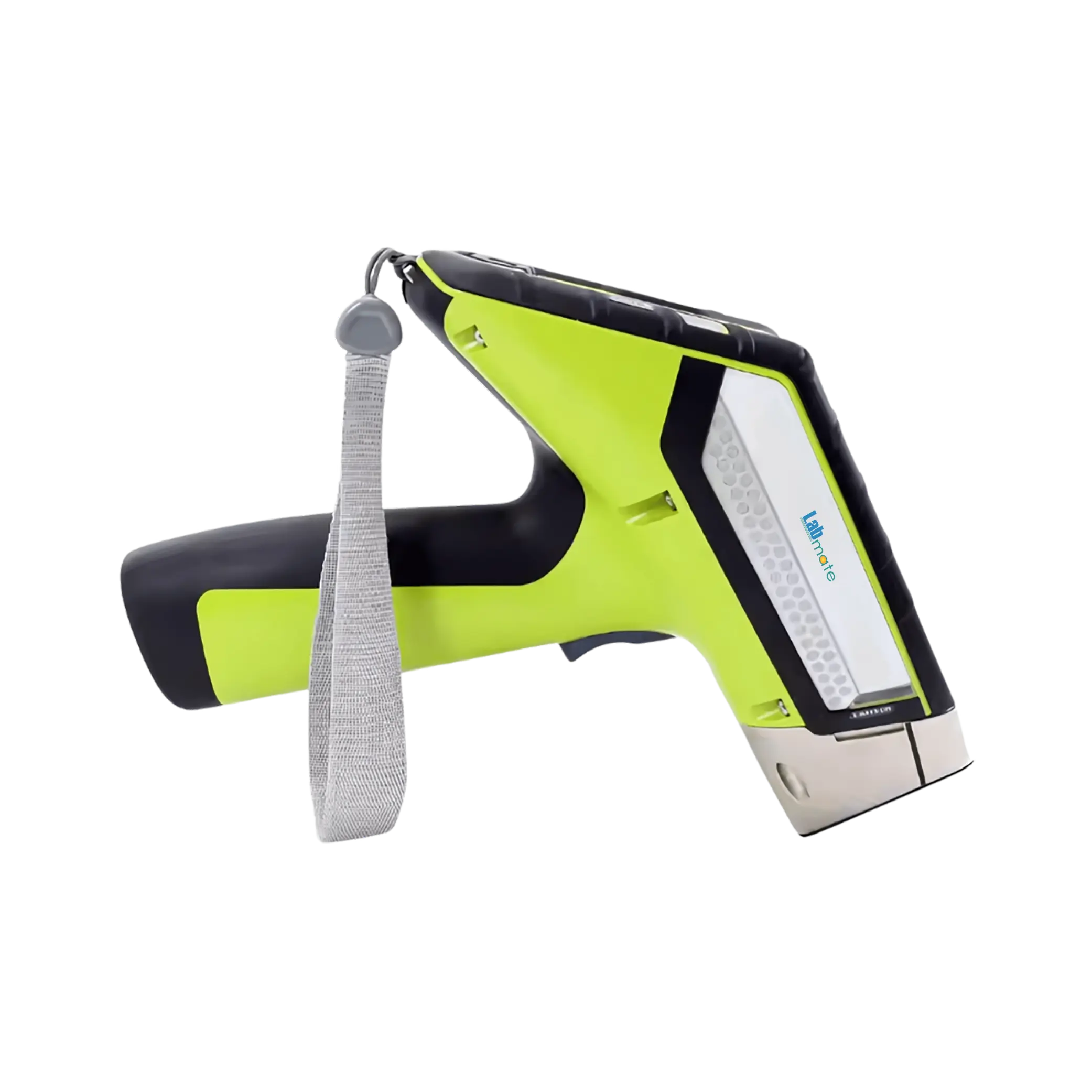

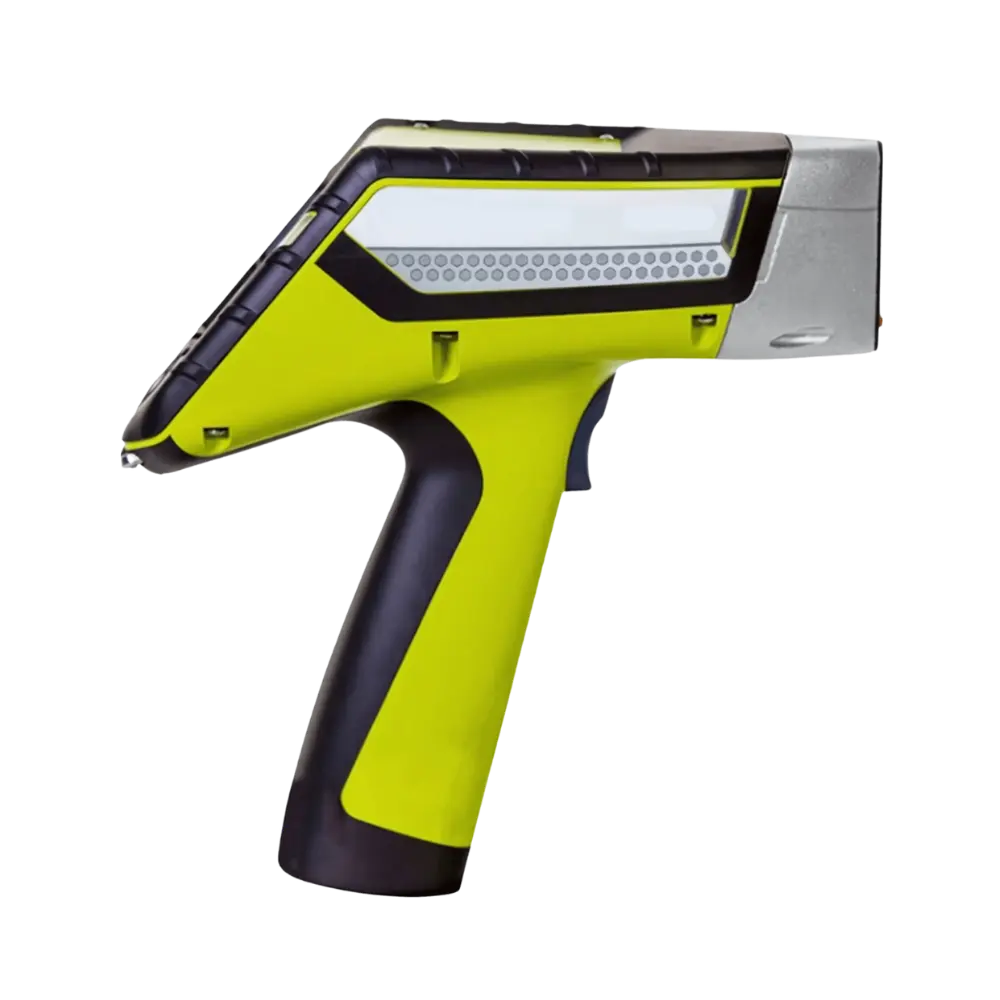

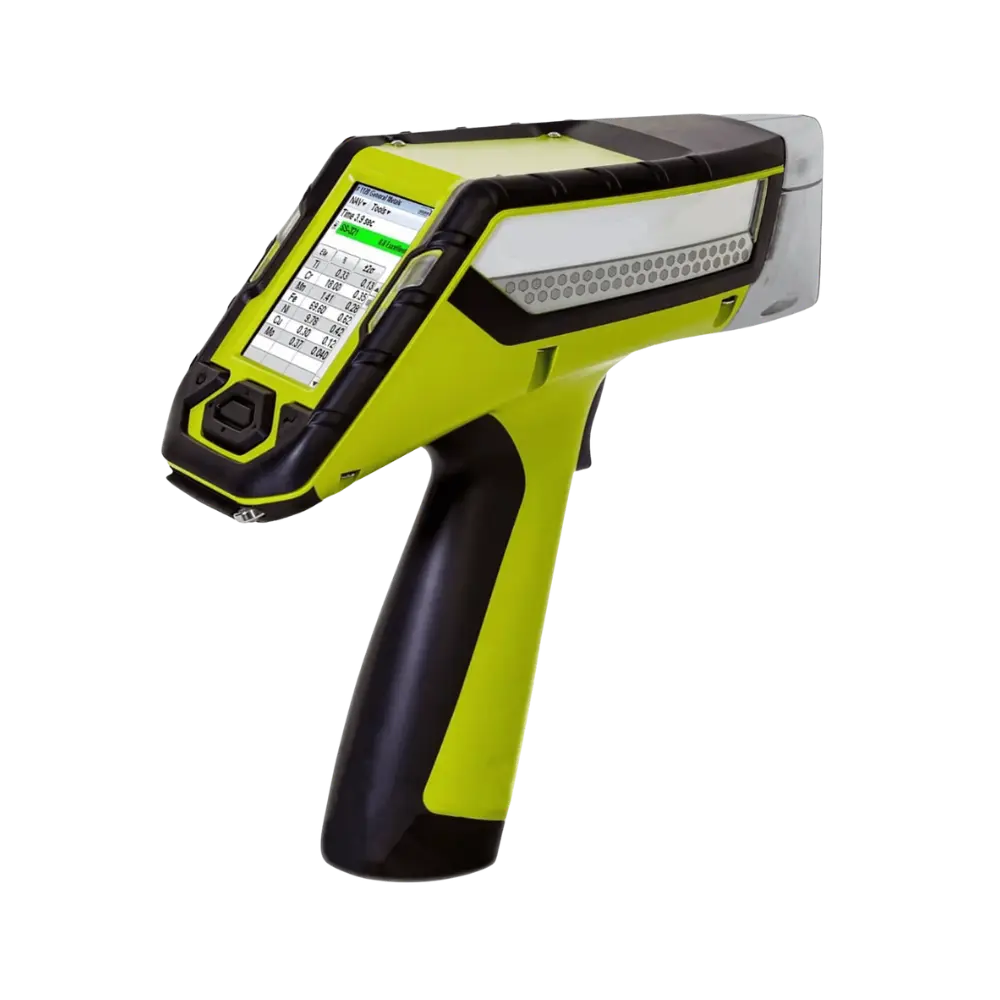

Handheld XRF Spectrometer LMXRF-B102 detects more than 25 elements from Magnesium (Mg) to Uranium (U). Equipped with high-performance silver (Ag) anode X-ray tube featuring dynamically adjustable current range, ensuring flexibility for various testing conditions. Utilizes advanced SDD detector for high-precision measurement and rapid detection. Integrated CCD micro-camera enables precise positioning of analyzer on sample surface. Our Analyzer delivers fast, accurate, and reliable results across wide range of elemental testing applications.
Specifications
| X-Ray Source | Ag anode X-ray tube (6–45 kV, 1–200 µA, 2 W max) with dynamically adjustable current |
| Detector | Silicon Drift Detector (SDD) with Detector ProGuard protection |
| Analytical Range | Detects elements from Mg to U |
| Calibration Modes | General metals, precious metals, coatings, mining, soils, electronic alloys, plastics, industrial lead in paint |
| System Check | Built-in standardization for accuracy assurance |
| Libraries | Default alloy libraries (SAE, AISI, ASTM, AA); user-editable |
| Display | Fixed-angle, color resistive touchscreen |
| Camera | Integrated CCD micro-camera for accurate sample positioning |
| IP Rating | IP54 (splash and dust proof) |
| Operating Environment | Temperature: -10°C to +50°C; Humidity: 0–80% RH (non-condensing) |
| Memory / Data Storage | 64 MB internal system memory / 128 MB user storage (≈10,000 readings with spectra) |
| Data Entry | Touchscreen keyboard, customizable data fields, optional wireless barcode reader |
| Data Transfer | USB, Bluetooth, and RS-232 serial communication |
| Bluetooth Functionality | Supports external GPS, barcode reader, and printing |
| GPS | Optional external GPS via Bluetooth |
| Operating System | Proprietary OS |
| Software Compatibility | Niton Data Transfer (NDT) PC software |
| Security | Password-protected user access |
| Power | 7.4V lithium-ion battery or 12V DC, 3A, 36W power supply; hot-swap functionality |
| Dimensions | 256 × 275 × 100 mm (10 × 10.8 × 3.9 in) |
| Net Weight | 1.53 kg (1.54 kg with battery) |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Handheld XRF Spectrometer LMXRF-B102 | $ 33275 | Each of 1 |
Features
IP54 protection rating
Detector ProGuard protection
Hot-swappable battery system
Integrated miniature camera
Touchscreen navigation interface
Standard Accessories
| Accessory | Quantity |
| Locking shielded carrying case | 1 |
| Lithium-ion battery packs | 2 |
| 110/220 V AC battery charger/ AC adaptor | 1 |
| Belt holster | 1 |
| Safety lanyard | 1 |
| USB PC connection cable | 1 |
| RS-232 PC connection cable | 1 |
| Portable test stand | 1 |
| Mobile test stand | 1 |
| Field mate test stand | 1 |
Applications
Handheld XRF Spectrometer LMXRF-B102 is widely used for alloy material identification, quality control in machinery manufacturing, metal recycling, coal analysis, and paint or powder coating production.
Similar Products
$ 29250 / Each of 1
$ 27125 / Each of 1
Frequently Asked Questions
1 What is a Handheld XRF Spectrometer?
A Handheld XRF Spectrometer is a portable analytical tool designed to use X-ray fluorescence for elemental analysis of a variety of different materials.
2 What materials can be analyzed using Handheld XRF Spectrometer?
It can analyze a wide range of materials including metals, alloys, minerals, plastics, ceramics, soils and liquids.
3 Is it safe to use Handheld XRF Spectrometer?
It is engineered to meet safety standards and has shielding to protect users from exposure to harmful X-rays.
4 Can Handheld XRF Spectrometer detect hazardous substances?
It is used to detect hazardous elements such as lead, mercury, cadmium and arsenic in different materials.
5 Can Handheld XRF Spectrometer be used for quality control in manufacturing?
It is commonly used in quality control processes to verify the composition of raw materials and finished products.
6 Can Handheld XRF Spectrometer be used to analyze coatings or plating?
It is used to analyze coatings, plating and surface finishes on materials like metals.
7 Can Handheld XRF Spectrometer help with corrosion analysis?
It is used to identify the elemental composition of corroded materials.
8 Can Handheld XRF Spectrometer be used for analyzing plastics and polymers?
It is used to analyze plastics and polymers to determine their elemental composition.
