Overview

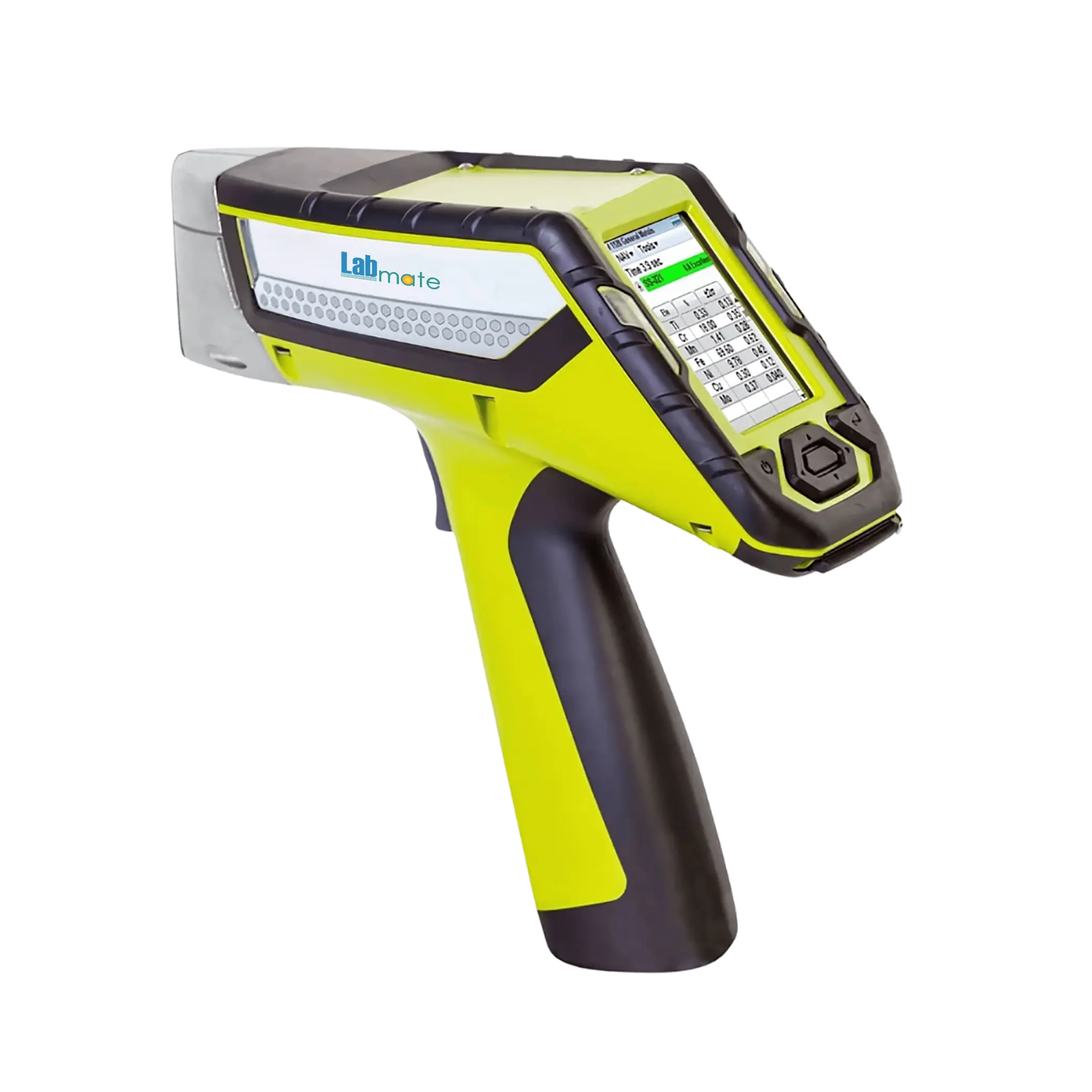

Handheld XRF Spectrometer LMXRF-B102 identifies elements from magnesium to uranium. A silver anode X-ray tube runs at 6 to 45 kV with adjustable current. A silicon drift detector with ProGuard protection reads the signal. Calibration modes cover metals, precious metals, coatings, mining, soils, plastics and lead in paint. SAE, AISI, ASTM and AA alloy libraries support grade matching. A CCD camera aids positioning, and storage holds about 10000 readings.

Features :

• IP54 protection rating.
• Detector ProGuard protection.
• Hot-swappable battery system.
• Integrated miniature camera.
• Touchscreen navigation interface.

Specifications :

X-Ray Source	Ag anode X-ray tube (6–45 kV, 1–200 µA, 2 W max) with dynamically adjustable current
Detector	Silicon Drift Detector (SDD) with Detector ProGuard protection
Analytical Range	Detects elements from Mg to U
Calibration Modes	General metals, precious metals, coatings, mining, soils, electronic alloys, plastics, industrial lead in paint
System Check	Built-in standardization for accuracy assurance
Libraries	Default alloy libraries (SAE, AISI, ASTM, AA); user-editable
Display	Fixed-angle, color resistive touchscreen
Camera	Integrated CCD micro-camera for accurate sample positioning
IP Rating	IP54 (splash and dust proof)
Operating Environment	Temperature: -10°C to +50°C; Humidity: 0–80% RH (non-condensing)
Memory / Data Storage	64 MB internal system memory / 128 MB user storage (≈10,000 readings with spectra)
Data Entry	Touchscreen keyboard, customizable data fields, optional wireless barcode reader
Data Transfer	USB, Bluetooth, and RS-232 serial communication
Bluetooth Functionality	Supports external GPS, barcode reader, and printing
GPS	Optional external GPS via Bluetooth
Operating System	Proprietary OS
Software Compatibility	Niton Data Transfer (NDT) PC software
Security	Password-protected user access
Power	7.4V lithium-ion battery or 12V DC, 3A, 36W power supply; hot-swap functionality
Dimensions	256 × 275 × 100 mm (10 × 10.8 × 3.9 in)
Net Weight	1.53 kg (1.54 kg with battery)

Standard Accessories :

Accessory	Quantity
Locking shielded carrying case	1
Lithium-ion battery packs	2
110/220 V AC battery charger/ AC adaptor	1
Belt holster	1
Safety lanyard	1
USB PC connection cable	1
RS-232 PC connection cable	1
Portable test stand	1
Mobile test stand	1
Field mate test stand	1

Applications :

Handheld XRF Spectrometer LMXRF-B102 is widely used for alloy material identification, quality control in machinery manufacturing, metal recycling, coal analysis, and paint or powder coating production.
