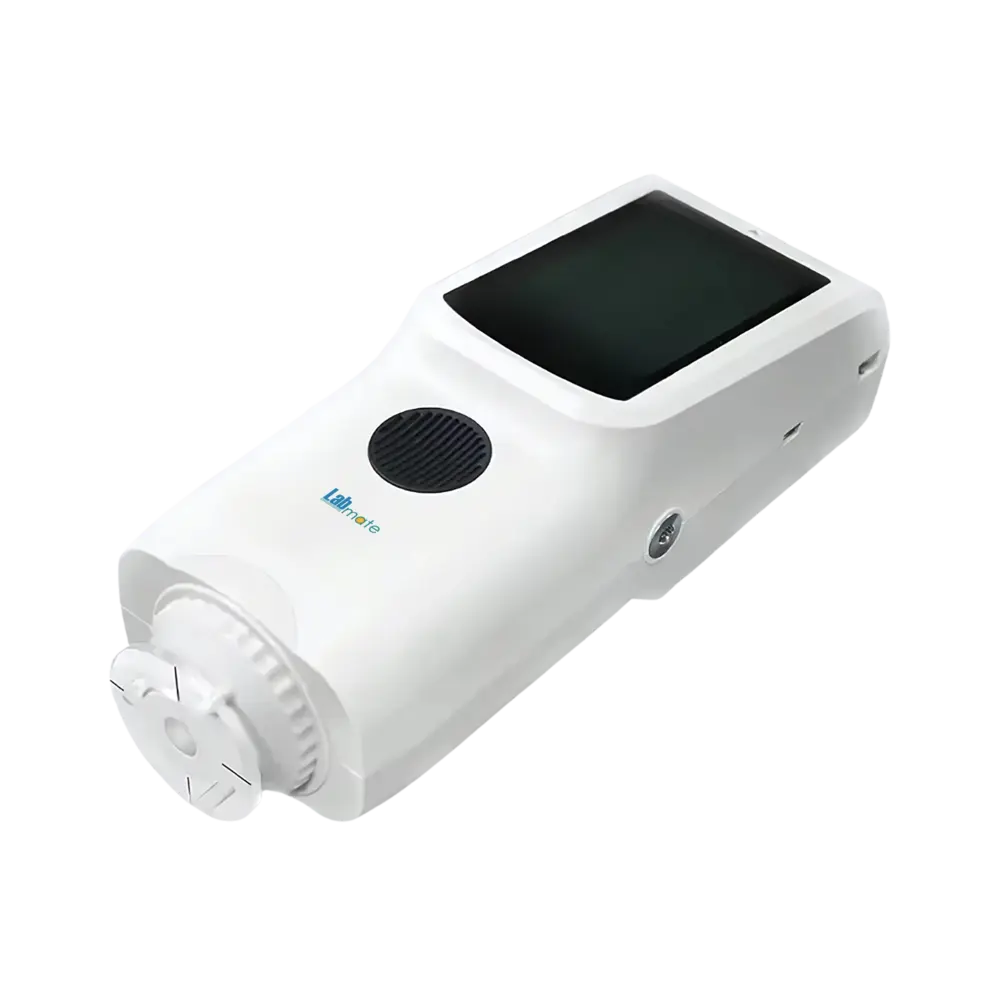

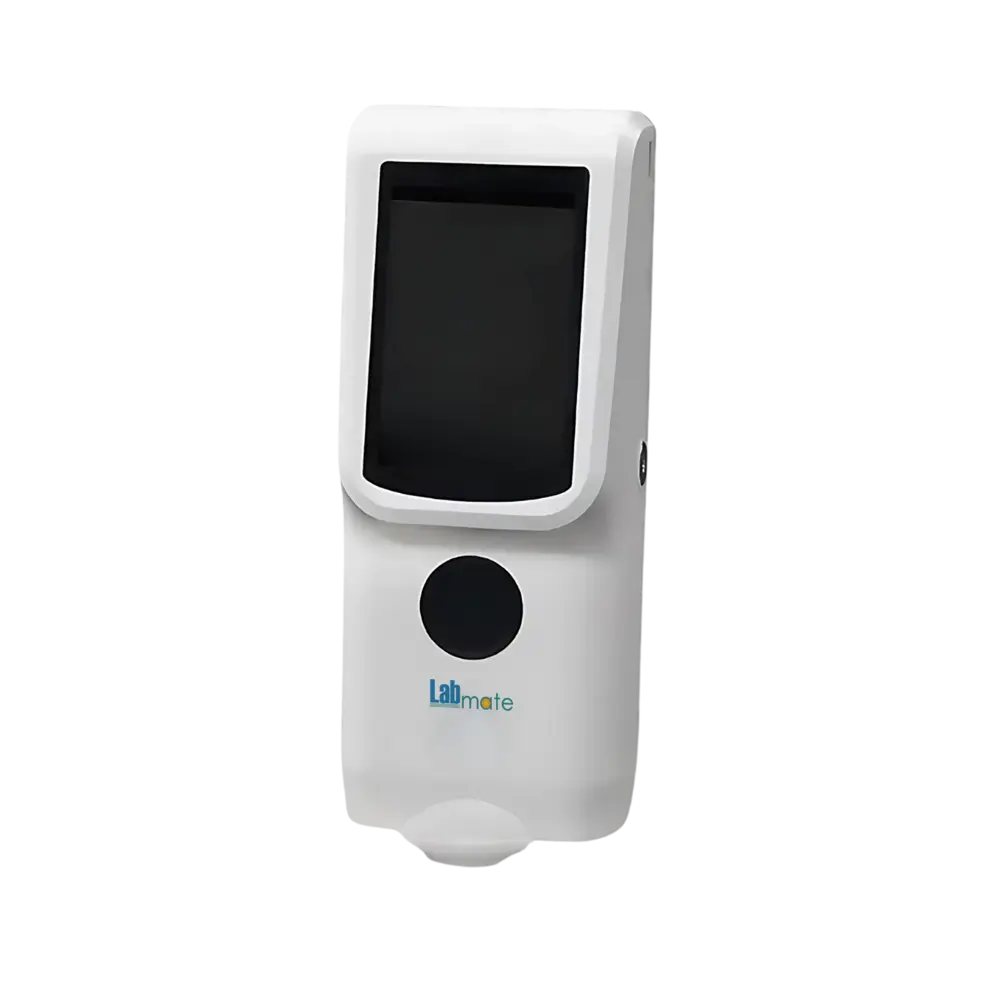

Handheld Spectrophotometer LMHS-B100 features measurement range from 400 to 700 nm. It offers ergonomic design with well-positioned grip and button layout for effortless one-hand handling. Equipped with high-sensitivity sensor, it detects subtle differences under low light without saturation issues. Incorporates full-band balanced LED light source to ensure broad and consistent visible spectrum coverage. Our Spectrophotometer evaluate color and variation in plastics, textiles, coatings, printing, and packaging.
Specifications
| Wavelength Range | 400 to 700 nm |
| Wavelength Interval | 10 nm |
| Semi Band Bandwidth | 10 nm |
| Lightness Measurement Range | 0 to 120 |
| Reflectivity Measurement Range | 0 to 200% |
| Measurement Time | 1.5 s |
| Measurement Method | Single and average (2 to 99 times) |
| Measurement Aperture | ɸ8 mm, ɸ4 mm |
| Light Source | Combined full-spectrum LED |
| Spectroscopic Method | Planar grating |
| Sensor | Silicon photodiode arrays (dual row, 32 groups) |
| Optical Geometry | D/8 (diffuse illumination, 8° viewing) |
| Integrating Sphere Diameter | 40 mm |
| Focusing Method | Optical Focus and Electronic Focus |
| Specular Component | SCI & SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, s-RGB, βxy, Munsell (C/2) |
| Color Difference Formula | ΔEab, ΔE94, ΔEcmc (2:1), ΔEcmc (1:1), ΔE00, DIN ΔE99 |
| Other Colorimetric Indexes | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Metamerism index Mt, color fastness, color strength, opacity, color card search |
| Observer Angle | 2° / 10° |
| Illuminants | D65, A, C, D50, F2 (CWF), F7 (DLF), F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Repeatability | Chromaticity: MAV/SCI, ΔEab within 0.04 |
| Inter-Instrument Error | MAV/SCI, within ΔEab 0.35 |
| Locating Method | Camera locating, stabilizer locating |
| Display | 3.5-inch TFT true color capacitive touch screen |
| Display Accuracy | 0.01 |
| Data Port | USB, Bluetooth |
| Data Storage | 1000 standard samples, 20,000 total samples; APP mass storage |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 0 to 85% RH |
| Storage Temperature | –20 to 50 °C |
| Storage Humidity | 0 to 85% RH |
| Illuminant Life Span | 5 years, greater than 3 million measurements |
| Battery Power | Lithium battery, 6000 measurements in 8 hours |
| Dimension | 81×71×214 mm |
| Weight | 460 g |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Handheld Spectrophotometer LMHS-B100 | $ 2890 | Each of 1 |
Features
Camera locating
Dual apertures
Color display screen
Fast charging
Large storage
Data visualization
Protective base
Standard Accessories
Model No. | Accessory Name |
LMHS-B100-P1 | Power adapter |
LMHS-B100-D1 | Data cable |
LMHS-B100-S1 | SQCX quality management software |
LMHS-B100-C1 | Black and white calibration box |
LMHS-B10P2 | Protective cover |
LMHS-B100-W1 | Wrist strap |
LMHS-B100-A1 | Three apertures: Ø8mm + Ø4mm platform aperture |
LMHS-B100-A2 | MOBCCS APP |
Optional Accessories
Model No. | Accessory name |
LMHS-B100-M1 | USB micro printer |
LMHS-B100-M2 | Bluetooth micro printer |
LMHS-B100-T1 | Powder test box |
Applications
Handheld Spectrophotometer LMHS-B100 is applied to evaluate surface colors and color differences in plastics, textiles, coatings, printing, electronics, and packaging across quality control and R&D environments.
Similar Products
$ 2175 / Each of 1
Frequently Asked Questions
1 What is Handheld Spectrophotometer?
A Handheld Spectrophotometer is a portable apparatus designed measure the intensity of light in a part of the spectrum, primarily for analyzing color, absorbance, or transmittance of a sample.
2 How does Handheld Spectrophotometer work?
It works by measuring how much light a sample absorbs or reflects across different wavelengths.
3 What types of samples can be analyzed using Handheld Spectrophotometer?
It can analyze solids, liquids, powders, and surfaces like plastic, fabric, paper and paint.
4 How is Handheld Spectrophotometer used in pharmaceutical analysis?
It is used in pharmaceutical analysis to verify drug color, identify raw materials, and ensure consistency and quality of tablets and capsules.
5 Can Handheld Spectrophotometer be used for protein quantification?
It is commonly used to quantify proteins by measuring absorbance at 280 nm or using colorimetric assays like the Bradford method.
6 How is Handheld Spectrophotometer applied in environmental testing?
It is applied in environmental testing to measure water quality, detect pollutants, and analyze chemical concentrations in soil, air, and water samples.
7 Is Handheld Spectrophotometer useful in food quality analysis?
It is useful in food quality analysis for evaluating color, freshness, ripeness, and consistency of food products and ingredients.
8 How is Handheld Spectrophotometer applied in forensic science?
It is applied in forensic science to analyze trace evidence, identify substances, and compare colors of materials at crime scenes.
9 How is Handheld Spectrophotometer used in clinical diagnostics?
It is used in clinical diagnostics to measure blood analytes, monitor patient samples, and assist in detecting biomarkers through colorimetric assays.
10 How does Handheld Spectrophotometer benefit the automotive industry?
It helps the automotive industry by verifying paint colors on vehicles, detecting defects, and ensuring color uniformity in manufacturing.
