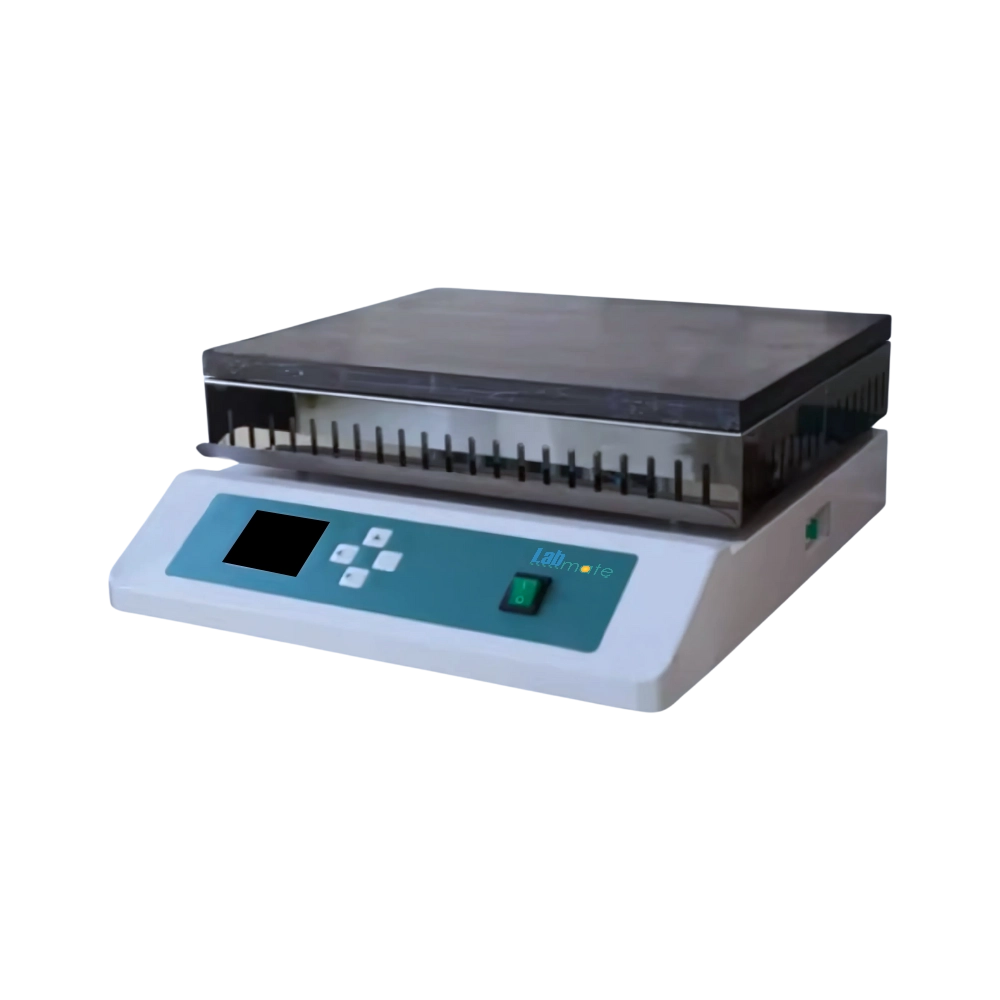

Graphite Hot Plate LMGH-203 is designed to hold large sample capacity up to 40 kg. Built from high-quality material for superior heat conductivity and durability. It features a robust cold-rolled steel exterior with a surface spray coating for enhanced protection. Incorporated with an advanced digital control system for efficient thermal regulation. Our Graphite Hot Plate provides maximum temperature of 400℃ for diverse experimental needs.
Specifications
| Heating Plate Material | Graphite plate |
| Outer Body Material | Cold-rolled Steel Plate, Surface Spray coated |
| Load Capacity | 40 kg |
| Operation Mode | Continuous |
| Temperature Control Mode | Digital |
| Temperature Range | 400℃ |
| Temperature Sensor | K type |
| Temperature Accuracy | ±1% |
| Heating Plate Surface Uniformity | ±10% |
| Power Consumption | 4500W |
| Power Supply | 220V, 50/60 Hz |
| Heating Plate Dimension | 400 × 600 mm |
| Dimension (W × L × H) | 470× 650× 220 mm |
| Package Dimension (W × L × H) | 700× 660×270 mm |
| Net Weight | 28 kg |
| Gross Weight | 30 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Graphite Hot Plate LMGH-203 | $ 3450 | Each of 1 |
Features
Continuous Operation Mode
K-Type Temperature Sensor
Lightweight Design
Corrosion Resistance
Non-Slip Flat base
Applications
Graphite Hot Plate LMGH-203 is vital for chemical synthesis and environmental testing, providing stable temperatures for reactions and simulating heat conditions for material exposure.
Similar Products
$ 3487.5 / Each of 1
$ 2737.5 / Each of 1
$ 1778.75 / Each of 1
Frequently Asked Questions
1 What is a Graphite Hot Plate?
A Graphite Hot Plate is an apparatus designed for heating and maintaining the temperature of samples in research as well as industrial environment.
2 What is the difference between a Graphite Hot Plate and an Electric Hot Plate?
Graphite Hot Plate uses graphite for superior thermal conductivity and high-temperature resistance whereas an Electric Hot Plate uses a metal coil or resistance heater to generate heat.
3 Can Graphite Hot Plate be used in high-humidity environments?
It is resistant to humidity and moisture therefore is suitable for high-humidity environments.
4 Can Graphite Hot Plate handle high heat over extended periods?
It can withstand high temperature over long periods therefore is suitable for applications that requires continuous or prolonged heating.
5 Is Graphite Hot Plate resistant to chemical reactions?
It is resistant to chemical reactions that involves acids, bases and organic solvents.
6 Is Graphite Hot Plate resistant to wear and tear?
It is highly resistant to wear and tear under normal operating conditions.
