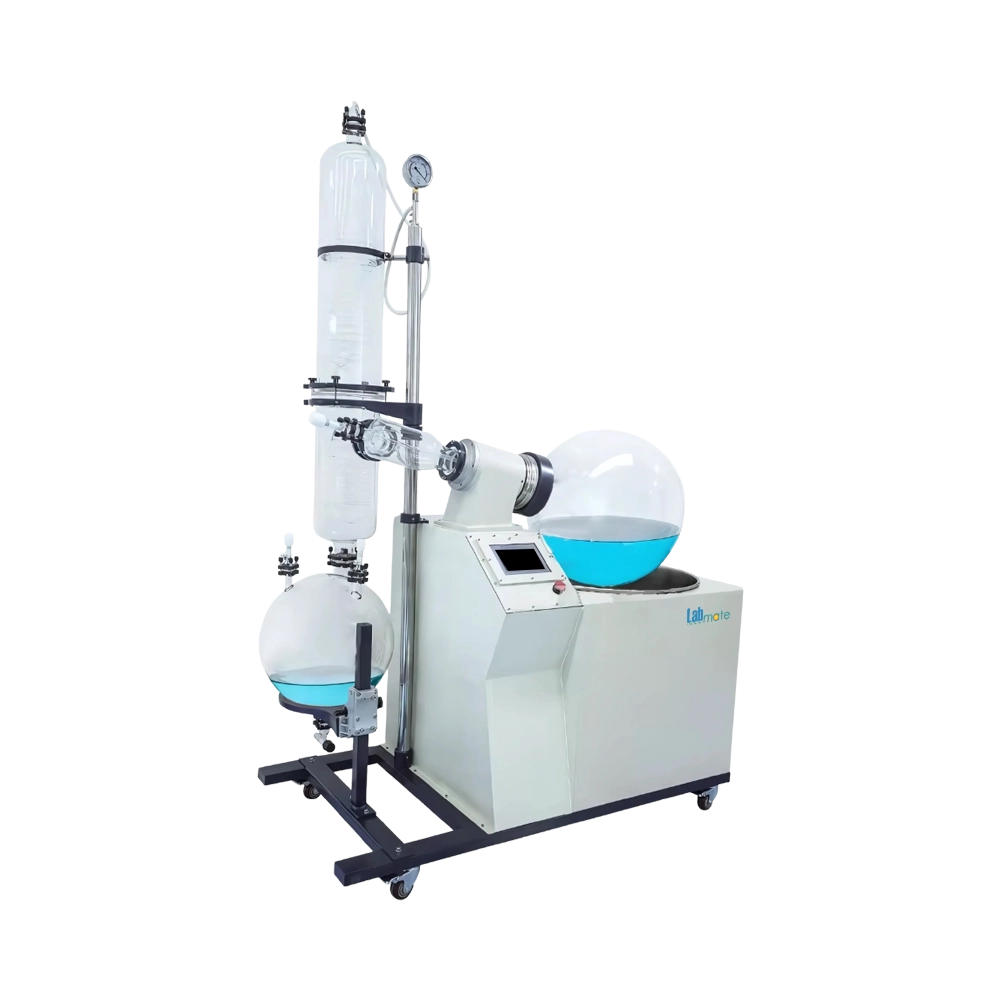

Explosion Proof Rotary Evaporator LMERE-A113 provides maximum rotary bottle capacity of 100 L. It combines main and auxiliary condenser with triple coil for higher solvent recovery rate. Equipped with feeding valve to enable controlled input of materials into system. Incorporates digital control panel for adjusting temperature, rotation, and vacuum settings. Our Rotary Evaporator is ideal for solvent concentration, crystallization, and drying.
Specifications
| Rotary Bottle Volume | 100 L |
| Collection Bottle Volume | 50 L |
| Bath Volume | 154 L |
| Speed Range | 20 to 90 rpm |
| Working Temperature Range | RT to 180°C |
| Glass Temperature Range | -80 to 250℃ |
| Temperature Control Accuracy | ±1°C |
| Vacuum Degree | 0.098MPa |
| Lifting Distance | 0 to 180mm |
| Feeding Valve Diameter | 45 mm |
| Air Release Valve Diameter | 45 mm |
| Discharge Valve Diameter | 45mm |
| Rotating Motor Power | 360W |
| Heating Power | 15kW |
| Heating Bath Power Supply | 380V/50Hz |
| Rotary Motor Power Supply | 220 to 240V/50Hz |
| Condenser Size (D×H) | Main condenser: 230×800 mm, Auxiliary condenser: 230×620 mm |
| Bath Size (D×H) | 700×400 mm |
| Bath Shell Size (L×W×H) | 710×620×700 nm |
| Bottom Plate Size (L×W) | 804×574 mm |
| Dimensions (W×D×H) | 1520×5200×2470 mm |
| Gross Weight | 191 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Rotary Evaporator LMERE-A113 | $ 17050 | Each of 1 |
Features
Fuse safety protection
Electric lift adjustment
Air nozzle attachment
Vacuum gauge display
Flask locking nut
Mobile caster base
Applications
Explosion Proof Rotary Evaporator LMERE-A113 supports concentration, drying, crystallization, separation, and recovery across chemical, biopharmaceutical, petroleum, environmental, food, and material research sectors.
