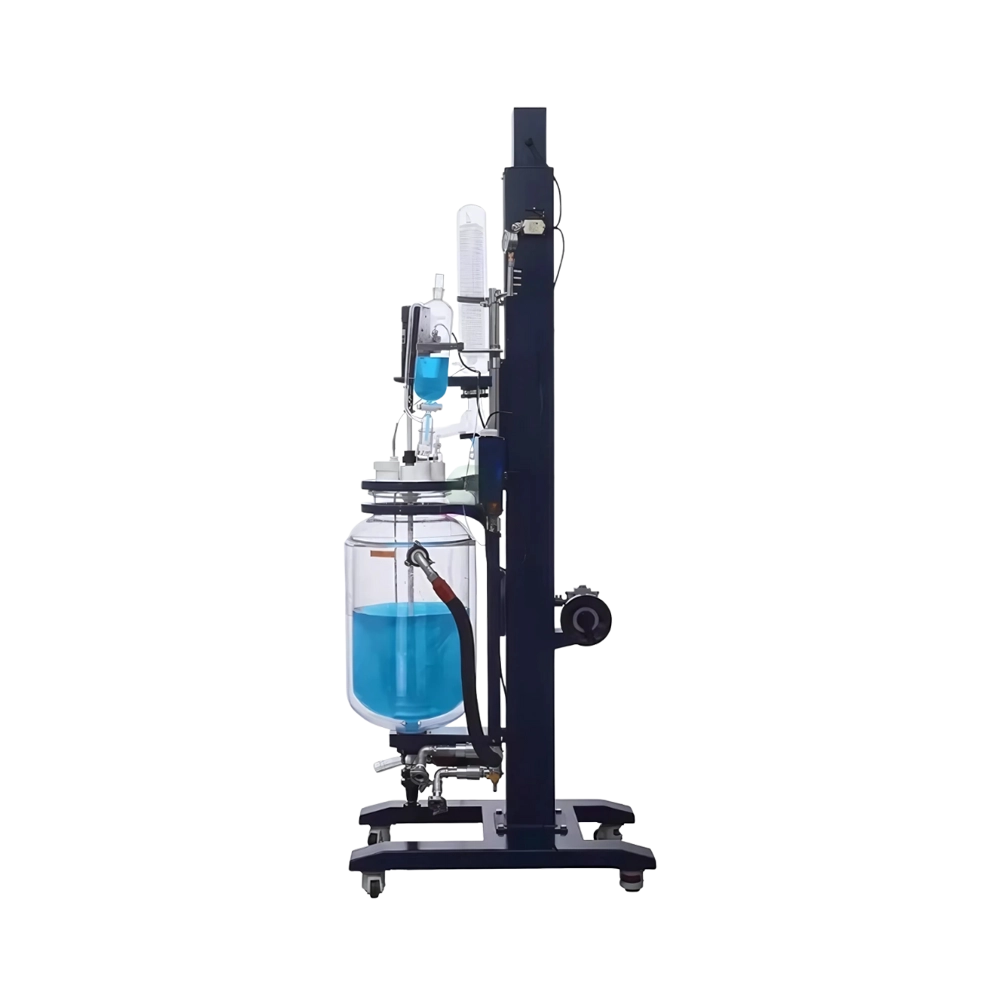

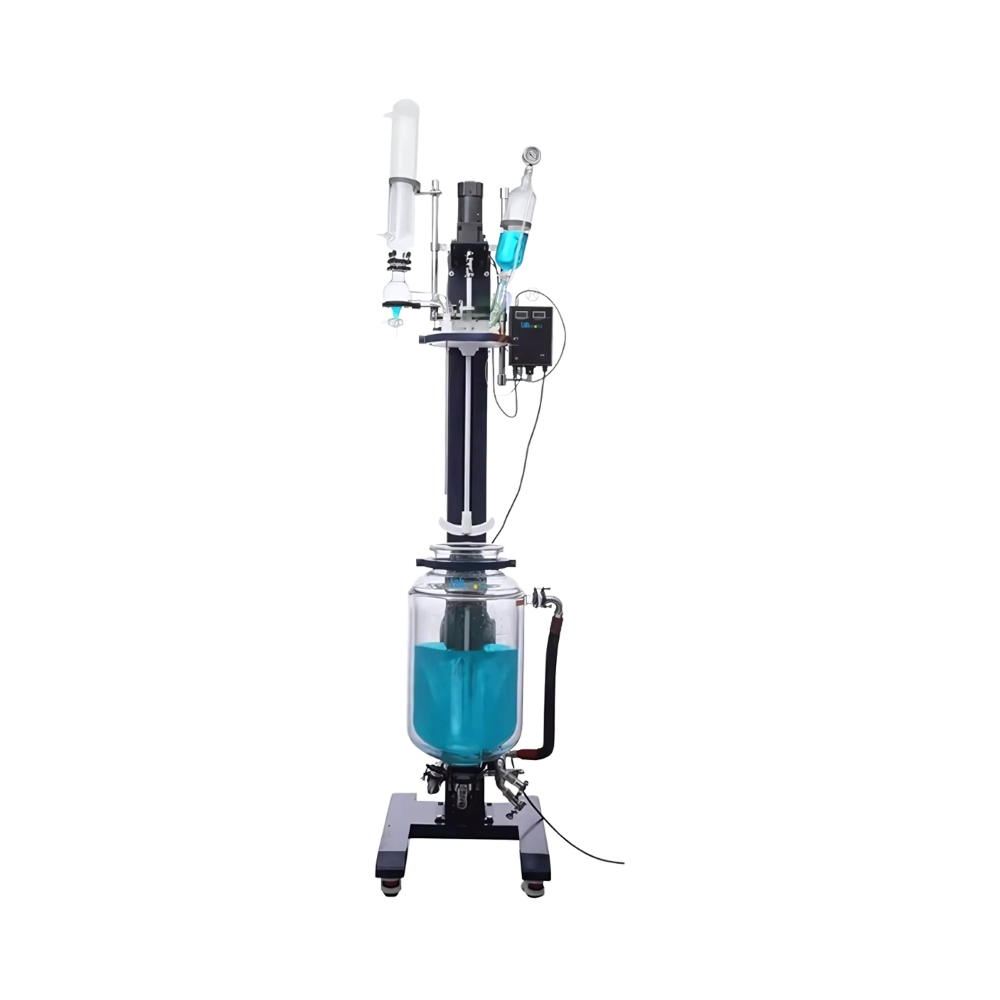

Explosion Proof Jacketed Reactor LMEJR-B104 provides generous 100-liter capacity. It features stirring motor and universal coupling for consistent mixing through an internal paddle. Equipped with solid charging port, it introduces powders or granules into reactor. Integrates constant-pressure funnel for controlled addition of liquids without system imbalance. Our Reactor ensures compound synthesis, solvent distillation, and crystallization.
Specifications
| Reactor Volume | 100 L |
| Jacket Volume | 25 L |
| Dropping Funnel Volume | 2 L |
| Operating Temperature Range | -80°C to 250°C |
| Vacuum Degree | 0.098 MPa |
| Rotation Speed Range | 0 to 1400 rpm |
| Temperature Measurement Accuracy | ±1°C |
| Lifting Distance | 920 mm |
| Lifting Power | 40W1/12.5 |
| Stirring Power | 370W |
| Power Consumption | 240W |
| Power Supply | 220V/50Hz |
| Glass Vessel Lid Diameter | 340 mm |
| Condenser Size (D×H) | 120×600 mm |
| Dimension (W×D×H) | 900×1100×(2700 to 3250) mm |
| Weight | 148 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Jacketed Reactor LMEJR-B104 | $ 11650 | Each of 1 |
Features
Speed regulator panel
Overflow protection
Temperature sensor port
Manual handwheel lift
High vacuum integrity
Effortless pouring angle
Applications
Explosion Proof Jacketed Reactor LMEJR-B104 is mostly applied for compound synthesis, solvent distillation, controlled mixing, crystallization, and concentration tasks in pharmaceutical labs and pilot-scale production.
Similar Products
$ 5237.5 / Each of 1
$ 2537.5 / Each of 1
$ 7512.5 / Each of 1
$ 4237.5 / Each of 1
$ 2912.5 / Each of 1
$ 21162.5 / Each of 1
$ 2825 / Each of 1
$ 3162.5 / Each of 1
$ 2412.5 / Each of 1
$ 10875 / Each of 1
$ 7837.5 / Each of 1
$ 7306.25 / Each of 1
$ 3662.5 / Each of 1
$ 3237.5 / Each of 1
$ 3300 / Each of 1
Frequently Asked Questions
1 What is an Explosion Proof Jacketed Reactor?
An Explosion Proof Jacketed Reactor is an apparatus designed with a jacket for temperature control and built to prevent ignition of flammable substances, ensuring safe operation in hazardous environments.
2 What kind of maintenance does Explosion Proof Jacketed Reactor require?
Routine maintenance includes regular inspections, cleaning, pressure testing, and checking the integrity of explosion-proof electrical fittings and jacket systems.
3 Why is Explosion Proof Jacketed Reactor ideal for petrochemical processes?
It is ideal for petrochemical processes because it safely handles reactions involving flammable hydrocarbons and maintains precise temperature control critical for refining operations.
4 How does Explosion Proof Jacketed Reactor improve safety in pesticide production?
It improves safety in pesticide production by preventing ignition of explosive vapors during chemical synthesis, while the jacket ensures stable reaction temperatures.
5 Can Explosion Proof Jacketed Reactor be used for biofuel production?
It is used in biofuel production for safe processing of volatile organic materials, with the jacketed design providing necessary thermal regulation.
6 How does Explosion Proof Jacketed Reactor benefit R&D labs working with reactive chemicals?
It benefits R&D labs by allowing small-scale testing of reactive or explosive compounds in a controlled, explosion-safe environment with precise thermal and mixing control.
7 Why is Explosion Proof Jacketed Reactor essential in solvent recovery systems?
It is essential in solvent recovery systems because it can withstand explosive vapors during distillation and condensation, while the jacket allows safe thermal management throughout the process.
8 How does Explosion Proof Jacketed Reactor handle vacuum distillation in hazardous environments?
It handles vacuum distillation by maintaining low pressures and temperatures safely, with explosion-proof fittings that prevent ignition in volatile atmospheres.
9 How does Explosion Proof Jacketed Reactor handle exothermic reactions in explosive environments?
It handles exothermic reactions by dissipating heat through the jacketed system, while its explosion-proof design prevents ignition in volatile or combustible atmospheres.
10 How is Explosion Proof Jacketed Reactor used in essential oil extraction?
It is used in essential oil extraction when flammable solvents like ethanol or hexane are involved, providing safe thermal control and explosion-proof operation throughout the process.
