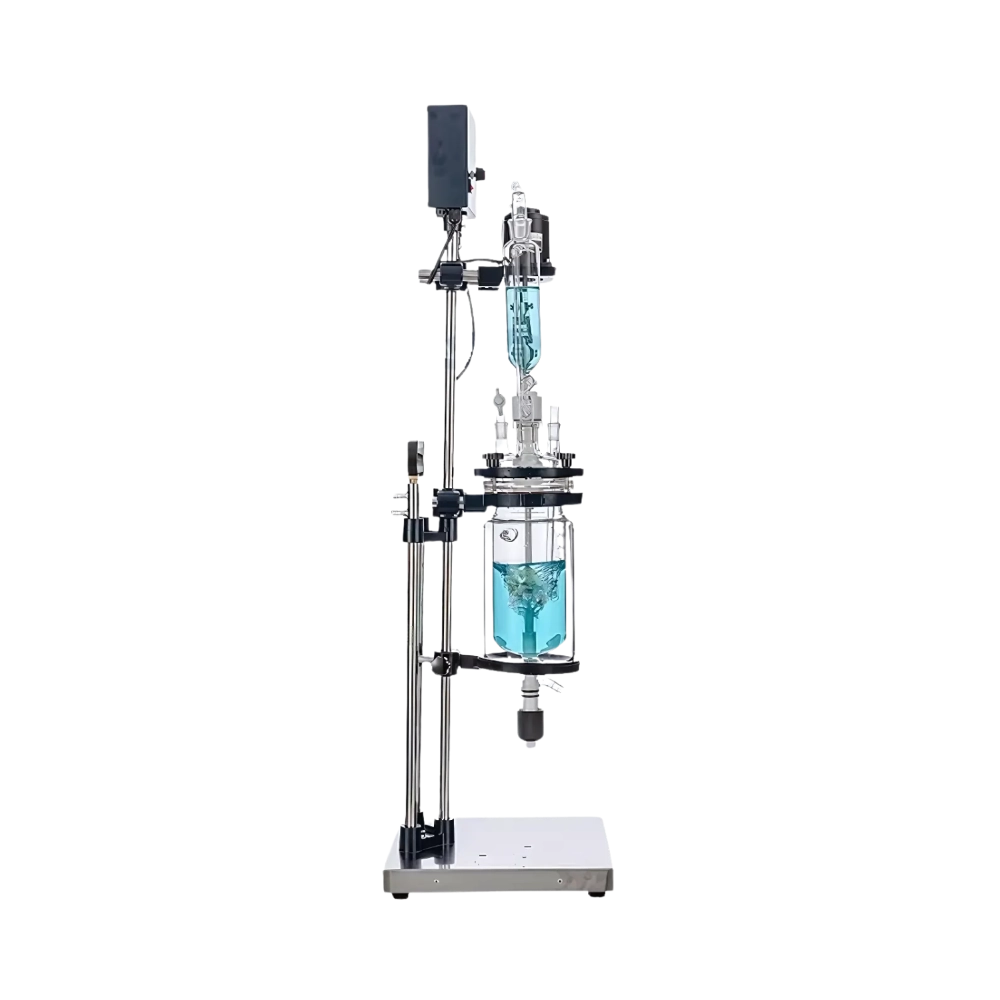

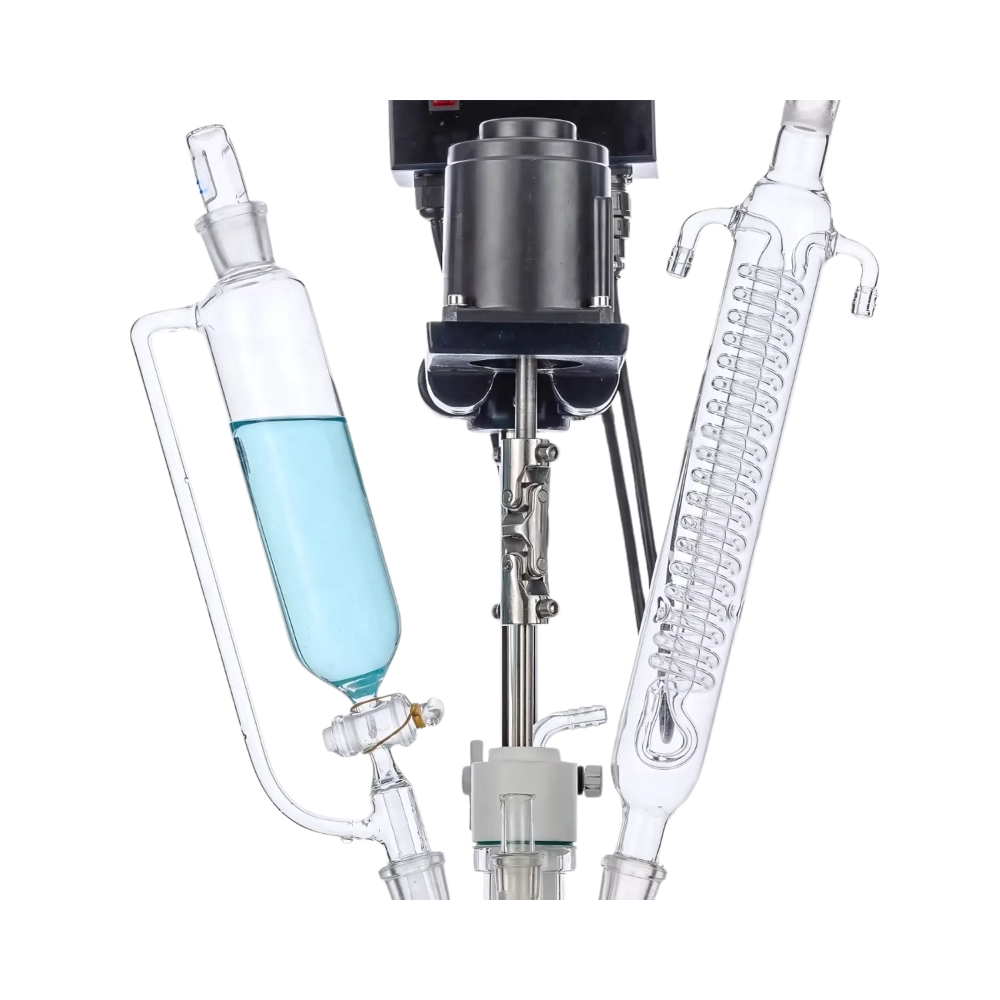

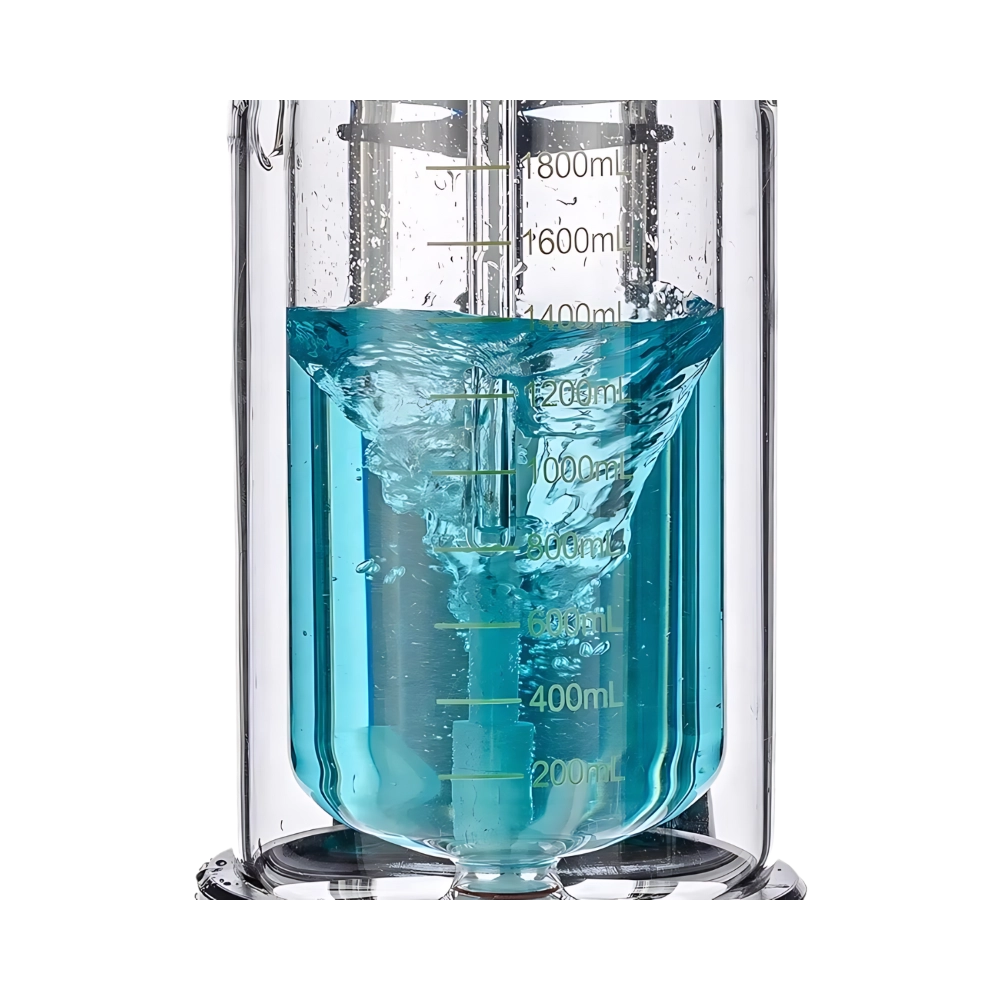

Explosion Proof Jacketed Reactor LMEJR-A102 provides reactor capacity of 3 liter. It features stirring paddle for effective agitation of materials within inner vessel. Equipped with temperature sensor port, it allows real-time monitoring and adjustment of internal conditions. Incorporates jacket circulation outlet that ensures discharge of thermal fluid. Our Glass Reactor is ideal for synthesis, distillation, concentration, heating, cooling, and liquid handling.
Specifications
| Reactor Volume | 3 L |
| Jacket Volume | 600 mL |
| Dropping Funnel Volume | 500 mL |
| Operating Temperature Range | -80°C to 250°C |
| Rotation Speed Range | 0 to 1400 rpm |
| Vacuum Degree | 0.098 MPa |
| Temperature Measurement Accuracy | ±1°C |
| Material | High borosilicate glass 3.3 |
| Stirring Power | 90 W |
| Power Supply | 220V/50Hz |
| Glass Vessel Lid Diameter | 205 mm |
| Condenser Size (D×H) | 60×450 mm |
| Dimension | 330×410×1450 mm |
| Weight | 30.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Jacketed Reactor LMEJR-A102 | $ 2825 | Each of 1 |
Features
Heat-resistant material
Vacuum-tight sealing
Stable external loop
Corrosion-proof surface
Pressure control
Gas inlet nozzle
Applications
Explosion Proof Jacketed Reactor LMEJR-A102 enables synthesis, distillation, concentration, heating, cooling, vacuum reactions, and liquid handling in chemical engineering, bio-pharmaceuticals, petroleum, metallurgy, medicine, healthcare, and aerospace.
Similar Products
$ 2912.5 / Each of 1
$ 11650 / Each of 1
$ 3662.5 / Each of 1
$ 5237.5 / Each of 1
$ 4237.5 / Each of 1
$ 3300 / Each of 1
$ 7306.25 / Each of 1
$ 2537.5 / Each of 1
$ 7512.5 / Each of 1
$ 21162.5 / Each of 1
$ 2412.5 / Each of 1
$ 10875 / Each of 1
$ 3237.5 / Each of 1
$ 7837.5 / Each of 1
$ 3162.5 / Each of 1
Frequently Asked Questions
1 What is an Explosion Proof Jacketed Reactor?
An Explosion Proof Jacketed Reactor is an apparatus designed with a jacket for temperature control and built to prevent ignition of flammable substances, ensuring safe operation in hazardous environments.
2 What kind of maintenance does Explosion Proof Jacketed Reactor require?
Routine maintenance includes regular inspections, cleaning, pressure testing, and checking the integrity of explosion-proof electrical fittings and jacket systems.
3 Why is Explosion Proof Jacketed Reactor ideal for petrochemical processes?
It is ideal for petrochemical processes because it safely handles reactions involving flammable hydrocarbons and maintains precise temperature control critical for refining operations.
4 How does Explosion Proof Jacketed Reactor improve safety in pesticide production?
It improves safety in pesticide production by preventing ignition of explosive vapors during chemical synthesis, while the jacket ensures stable reaction temperatures.
5 Can Explosion Proof Jacketed Reactor be used for biofuel production?
It is used in biofuel production for safe processing of volatile organic materials, with the jacketed design providing necessary thermal regulation.
6 How does Explosion Proof Jacketed Reactor benefit R&D labs working with reactive chemicals?
It benefits R&D labs by allowing small-scale testing of reactive or explosive compounds in a controlled, explosion-safe environment with precise thermal and mixing control.
7 Why is Explosion Proof Jacketed Reactor essential in solvent recovery systems?
It is essential in solvent recovery systems because it can withstand explosive vapors during distillation and condensation, while the jacket allows safe thermal management throughout the process.
8 How does Explosion Proof Jacketed Reactor handle vacuum distillation in hazardous environments?
It handles vacuum distillation by maintaining low pressures and temperatures safely, with explosion-proof fittings that prevent ignition in volatile atmospheres.
9 How does Explosion Proof Jacketed Reactor handle exothermic reactions in explosive environments?
It handles exothermic reactions by dissipating heat through the jacketed system, while its explosion-proof design prevents ignition in volatile or combustible atmospheres.
10 How is Explosion Proof Jacketed Reactor used in essential oil extraction?
It is used in essential oil extraction when flammable solvents like ethanol or hexane are involved, providing safe thermal control and explosion-proof operation throughout the process.
