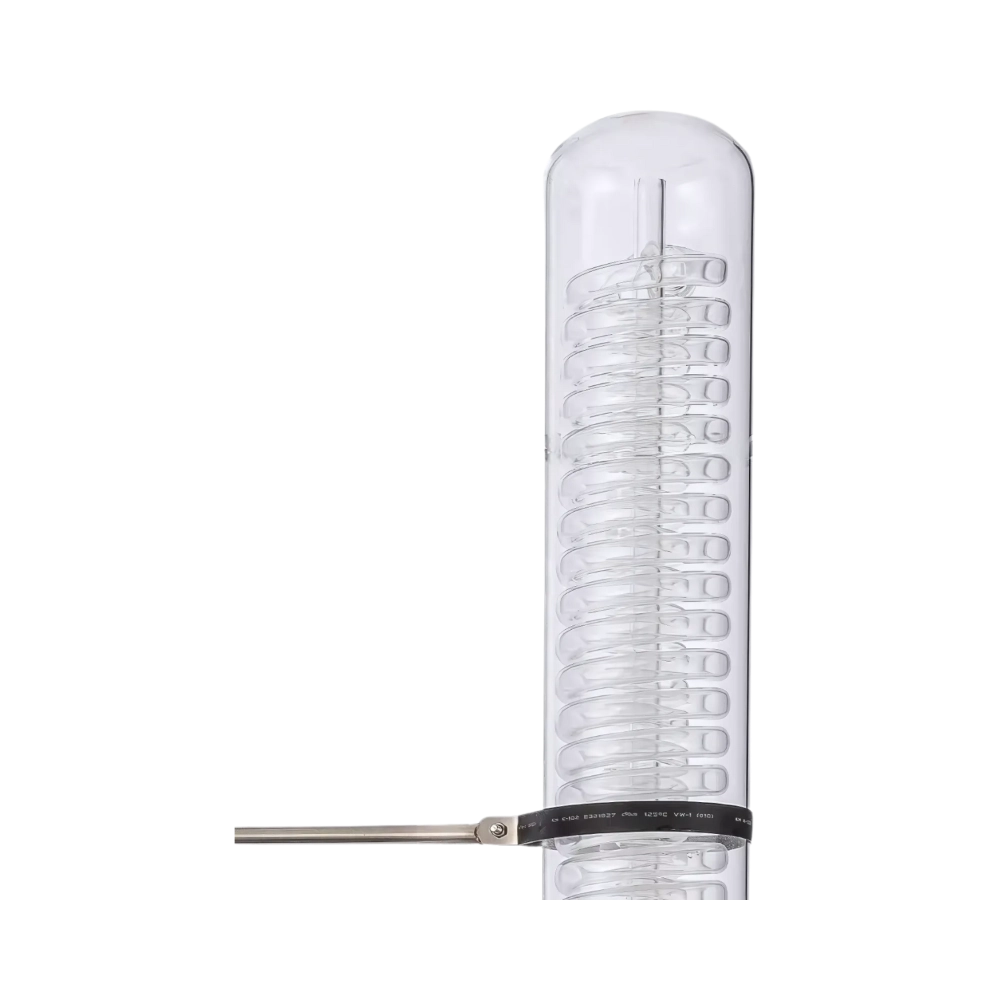

Explosion Proof Glass Reactor LMEGR-A108 boasts generous 100-liter capacity. It features real-time temperature monitoring for thermal regulation throughout operations. Equipped with vacuum port, it allows external vacuum connections for enhanced evaporation. Incorporates stainless steel reservoir for even heat distribution. Our Reactor is applied for crystallization, chemical synthesis, and solvent recovery reactions.
Specifications
| Capacity | 100 L |
| Dropping Funnel Volume | 2 L |
| Temperature Range | -80 to 250°C |
| Rotation Speed Range | 0 to 450 rpm |
| Vacuum Degree | 0.098 MPa |
| Temperature Measurement Accuracy | ±1°C |
| Stirring Motor Power | 370W |
| Heating Power | 15kW |
| Power Supply | 220V/50Hz (Stirrer) |
| Glass Vessel Diameter | 610 mm |
| Dimensions (W×D×H) | 880×800×1850 mm |
| Weight | 120 Kg |
Features
Stepless speed control
Controlled liquid feeding
Uniform substance agitation
Integrated process controller
Dual-seal protection
Applications
Explosion Proof Glass Reactor LMEGR-A108 is ideal for vacuum evaporation, crystallization, chemical synthesis, solvent recovery, pharmaceutical formulation, concentration, distillation, and reaction monitoring.
Similar Products
Frequently Asked Questions
1 What is an Explosion Proof Glass Reactor?
An Explosion Proof Glass Reactor is a chemical processing vessel designed with specialized materials and components that prevent ignition of flammable substances, making it safe for use in hazardous environments.
2 Can Explosion Proof Glass Reactor be used for solvent recovery?
It is ideal for solvent recovery processes where flammable solvents are involved, ensuring safety during heating, evaporation, and condensation.
3 Is Explosion Proof Glass Reactor suitable for pilot-scale chemical synthesis?
It is commonly used for pilot-scale chemical synthesis due to its ability to safely handle exothermic reactions and volatile compounds in controlled environments.
4 How does Explosion Proof Glass Reactor support pharmaceutical formulation?
It supports pharmaceutical formulation by allowing safe mixing, crystallization, and purification of active ingredients.
5 Is Explosion Proof Glass Reactor effective for essential oil extraction?
It is effective for essential oil extraction where ethanol or other flammable solvents are used, ensuring safety during distillation or reflux.
6 Is Explosion Proof Glass Reactor suitable for temperature-sensitive reactions?
It is highly suitable for temperature-sensitive reactions due to its double-jacketed design and precise temperature control.
7 Can Explosion Proof Glass Reactor be used for distillation processes?
It is frequently used for distillation processes, particularly when handling flammable solvents, as it ensures safe vapor handling and controlled heating.
8 Is Explosion Proof Glass Reactor suitable for acid-base reactions?
It is suitable for acid-base reactions, especially when the reaction involves corrosive reagents or generates heat and gas that requires safe venting and containment.
9 Can Explosion Proof Glass Reactor be used in petrochemical analysis?
It is widely used in petrochemical analysis for safely conducting reactions and sample testing involving volatile hydrocarbons and corrosive catalysts.
10 Can Explosion Proof Glass Reactor be used in waste treatment research?
It is used in waste treatment research to process hazardous or flammable waste streams under controlled, explosion-proof conditions.
