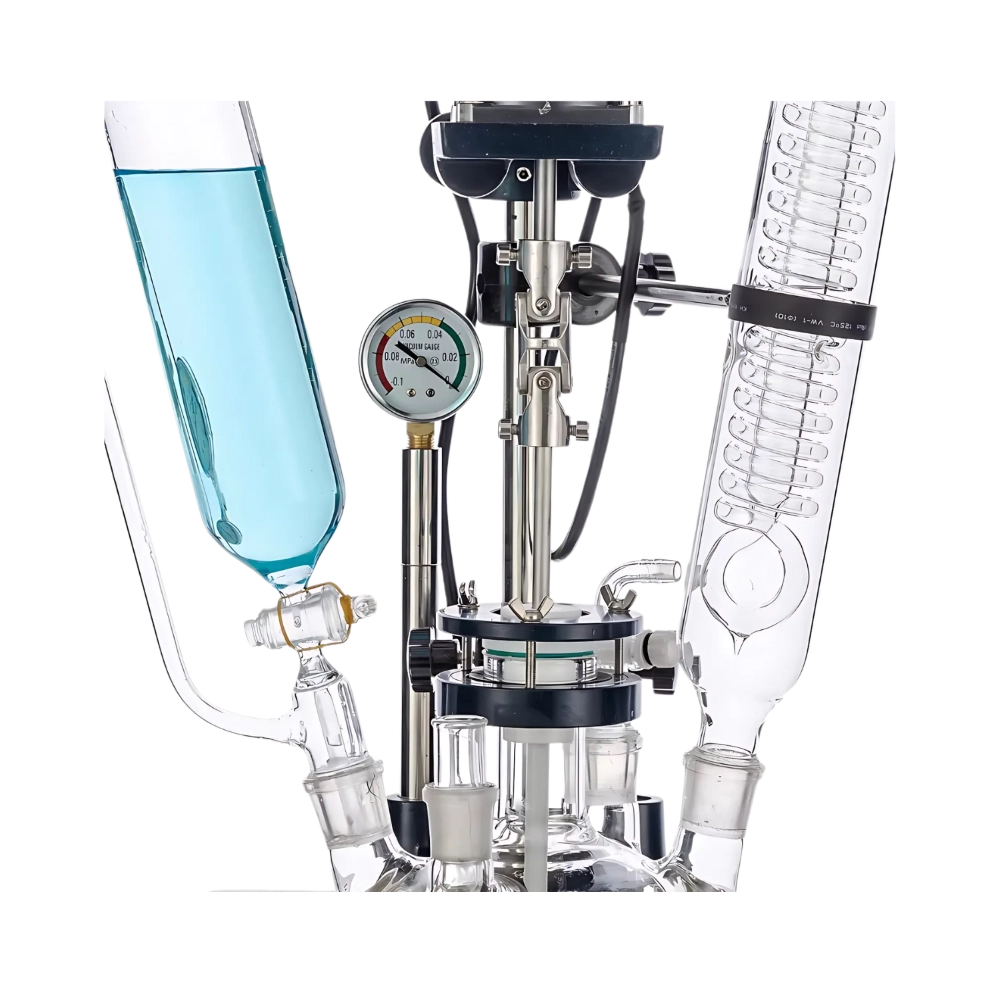

Explosion Proof Glass Reactor LMEGR-A103 is designed to offer 5-liter capacity. It features vacuum gauge for clear and reliable pressure evaluation. Equipped with speed regulator, it adjusts motor speed as per process requirements. Incorporates temperature sensor port for real-time monitoring of internal reactor conditions. Our Reactor is ideal for synthesis, evaporation, and distillation in pharmaceutical labs and industries.
Specifications
| Capacity | 5 L |
| Dropping Funnel Volume | 500 ml |
| Temperature Range | -80 to 250°C |
| Rotation Speed Range | 0 to 800 rpm |
| Vacuum Degree | 0.098 MPa |
| Bath Temperature Range | RT to 180°C |
| Temperature Measurement Accuracy | ±1°C |
| Stirring Motor Power | 90W |
| Heating Power | 1.5kW |
| Power Supply | 220V/50Hz |
| Glass Vessel Diameter | 230 mm |
| Dimensions (W×D×H) | (430 to 1030)×330×1150 mm |
| Weight | 25 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Explosion Proof Glass Reactor LMEGR-A103 | $ 2875 | Each of 1 |
Features
Air nozzle connection
Double sealing
Cooling water inlet
Uniform stirring paddle
Stable bottom base
Low noise operation
Applications
Explosion Proof Glass Reactor LMEGR-A103 is ideal for synthesis, reaction, mixing, evaporation, and distillation in chemical engineering, pharmaceuticals, biomedicine, environmental science, metallurgy, and material development.
Similar Products
$ 3625 / Each of 1
$ 3862.5 / Each of 1
$ 4893.75 / Each of 1
$ 7306.25 / Each of 1
$ 2662.5 / Each of 1
$ 3200 / Each of 1
$ 3262.5 / Each of 1
$ 2537.5 / Each of 1
$ 2456.25 / Each of 1
$ 3125 / Each of 1
Frequently Asked Questions
1 What is an Explosion Proof Glass Reactor?
An Explosion Proof Glass Reactor is a chemical processing vessel designed with specialized materials and components that prevent ignition of flammable substances, making it safe for use in hazardous environments.
2 Can Explosion Proof Glass Reactor be used for solvent recovery?
It is ideal for solvent recovery processes where flammable solvents are involved, ensuring safety during heating, evaporation, and condensation.
3 Is Explosion Proof Glass Reactor suitable for pilot-scale chemical synthesis?
It is commonly used for pilot-scale chemical synthesis due to its ability to safely handle exothermic reactions and volatile compounds in controlled environments.
4 How does Explosion Proof Glass Reactor support pharmaceutical formulation?
It supports pharmaceutical formulation by allowing safe mixing, crystallization, and purification of active ingredients.
5 Is Explosion Proof Glass Reactor effective for essential oil extraction?
It is effective for essential oil extraction where ethanol or other flammable solvents are used, ensuring safety during distillation or reflux.
6 Is Explosion Proof Glass Reactor suitable for temperature-sensitive reactions?
It is highly suitable for temperature-sensitive reactions due to its double-jacketed design and precise temperature control.
7 Can Explosion Proof Glass Reactor be used for distillation processes?
It is frequently used for distillation processes, particularly when handling flammable solvents, as it ensures safe vapor handling and controlled heating.
8 Is Explosion Proof Glass Reactor suitable for acid-base reactions?
It is suitable for acid-base reactions, especially when the reaction involves corrosive reagents or generates heat and gas that requires safe venting and containment.
9 Can Explosion Proof Glass Reactor be used in petrochemical analysis?
It is widely used in petrochemical analysis for safely conducting reactions and sample testing involving volatile hydrocarbons and corrosive catalysts.
10 Can Explosion Proof Glass Reactor be used in waste treatment research?
It is used in waste treatment research to process hazardous or flammable waste streams under controlled, explosion-proof conditions.
