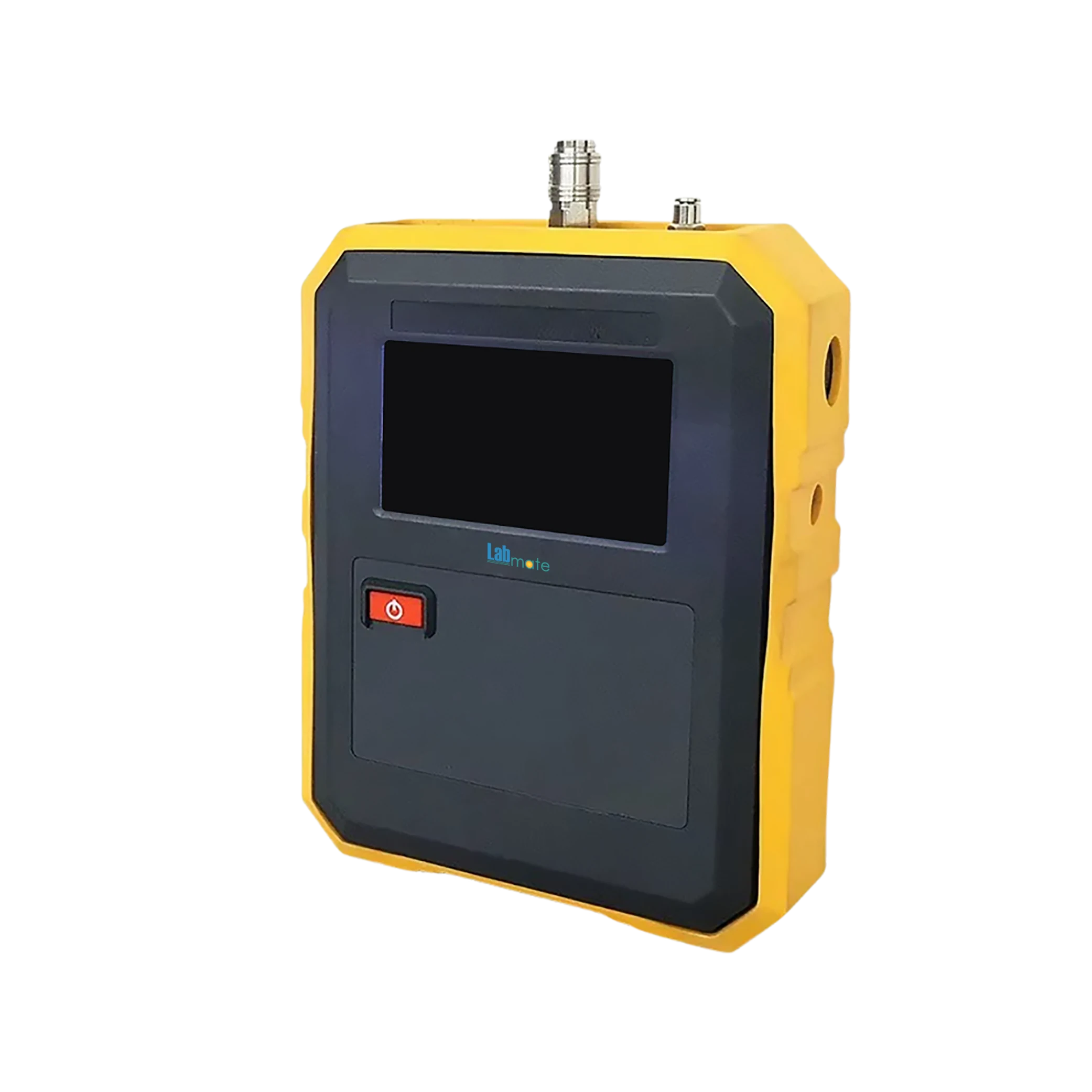

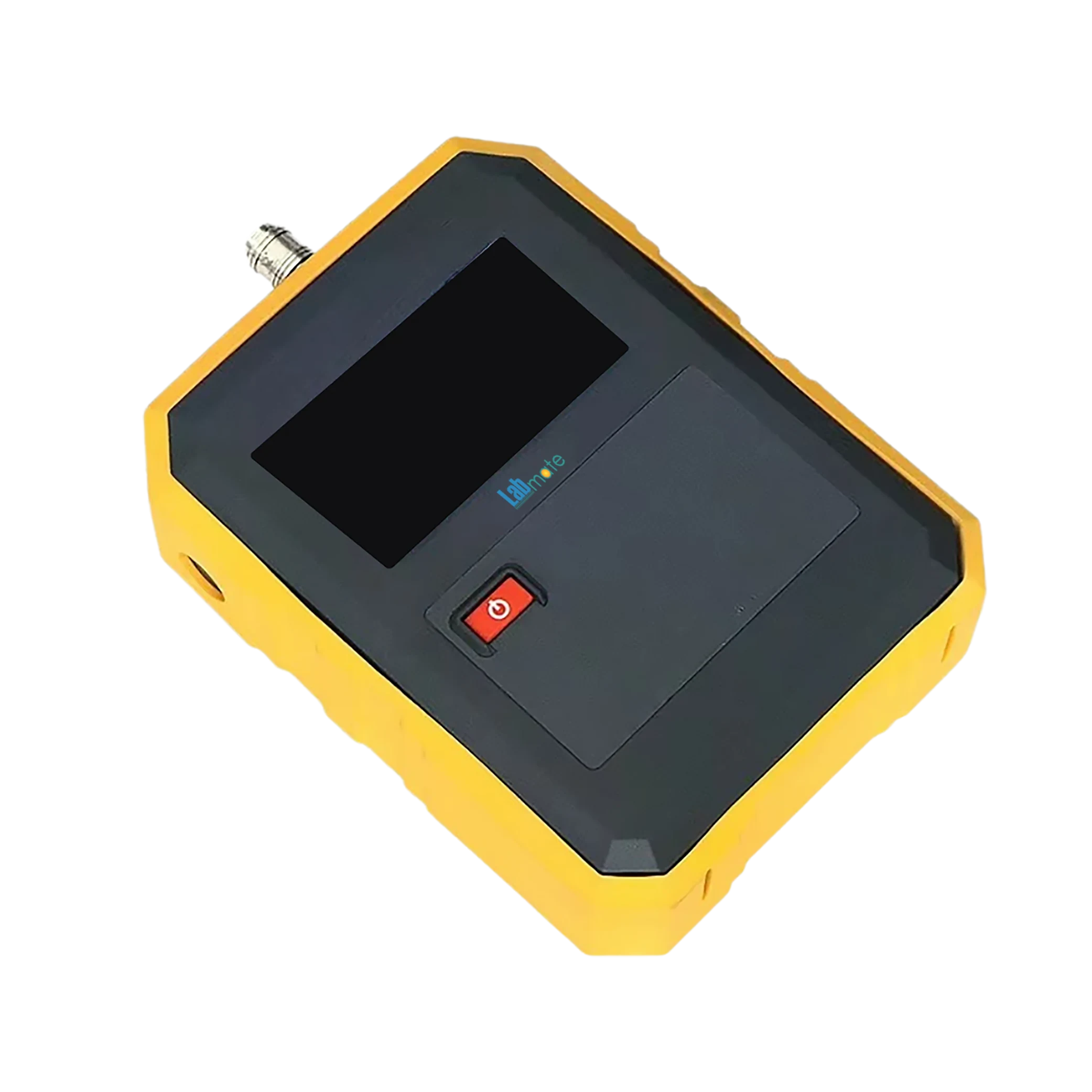

Dew Point Analyzer LMDPA-A100 ensures monitoring of Saturation temperature levels from -80℃ to 20℃. It features high-capacity storage accommodating up to 1000 test records for effective data management. Equipped with large-screen curve display, it visualizes real-time measurement. Integrates rechargeable lithium battery for continuous operation of up to 15 hours. Our Analyzer monitors dew point reading in gas systems for industrial, laboratory, and environmental settings.
Specifications
| Measurement Range | -80℃ to 20℃ (0.04ppm to 23700ppm) |
| Measurement Accuracy | ±1.0C (-60℃ to 20℃), ±2.0℃ (-80℃ to - 60°C) |
| Response Time | -60℃ to 20C: 5 seconds (63%), 45 seconds (90%) 20℃ to - 60℃:10 seconds (63%), 240 seconds (90%) |
| Display | 4.3-inch color touch screen |
| Power Display | Percentage of battery status |
| Date Display | Year, month, day |
| Time Display | Hour, minute, second |
| Operating Temperature | -40℃ to 60℃ |
| Storage Temperature | 40℃ to 80℃ |
| Ambient Temperature | 10℃ to 60℃ |
| Ambient Humidity | 0 to 100% RH |
| Battery Charging Time | 2 hours |
| Battery Run Time | ≥10 hours |
| Power Supply | AC 220V; Built-in rechargeable battery |
| Dimension | 250×100×300mm |
| Weight | 2 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Dew Point Analyzer LMDPA-A100 | $ 4975 | Each of 1 |
Features
Self-calibration
Fast result
Leak-proof
self-locking connector
USB port data transfer

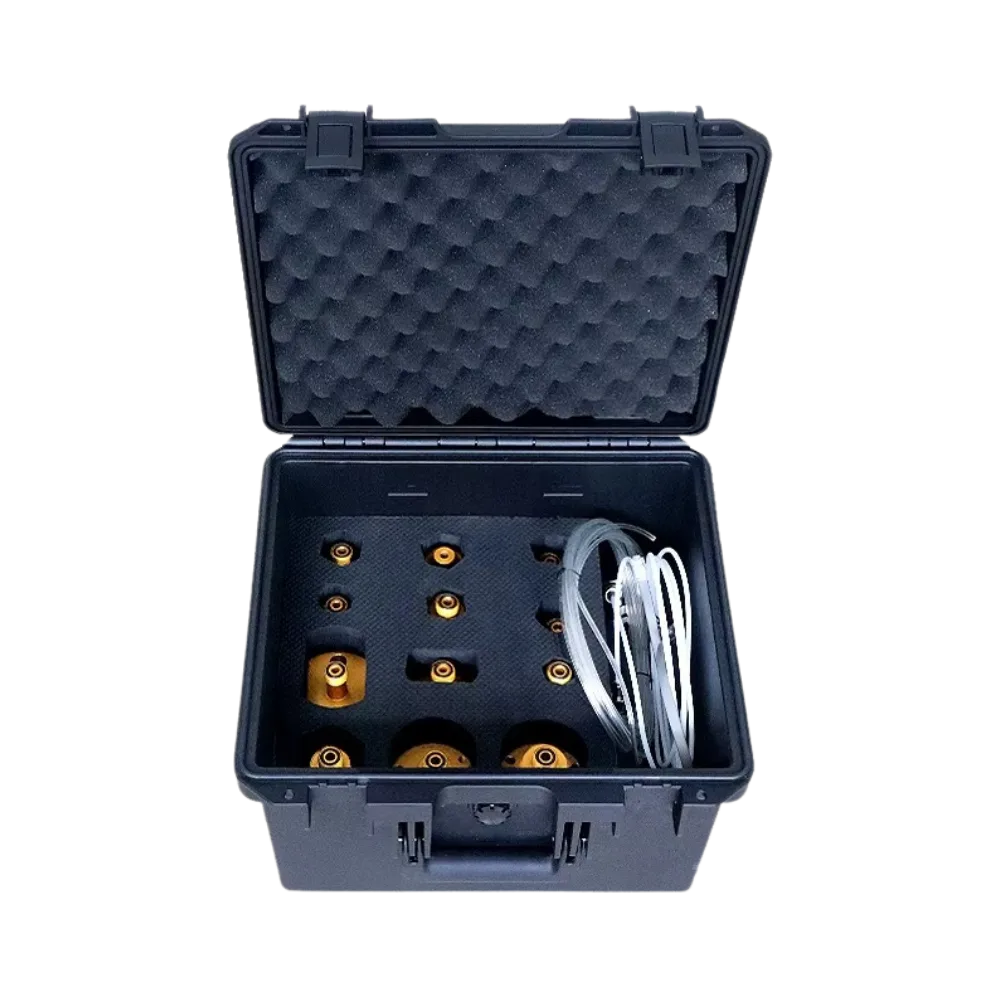

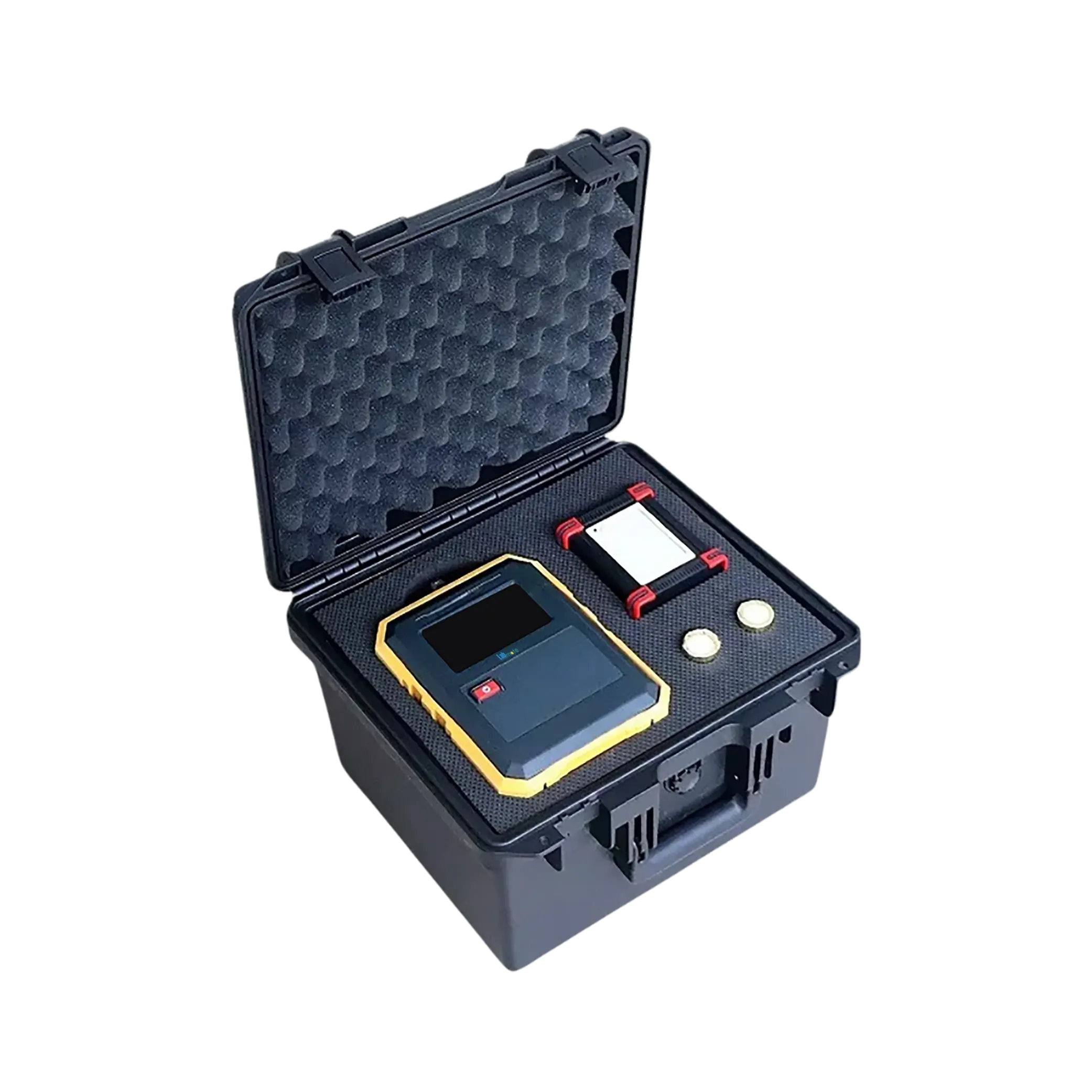

Standard Accessories
Accessory Name | Quantity | Unit |
Gas inlet pipe | 1 | Piece |
Gas outlet pipe | 1 | Piece |
PTFE TAPE | 1 | Piece |
Printing paper | 2 | Piece |
USB flash | 1 | Piece |
25.2V charger | 1 | Piece |
Network cable | 1 | Piece |
Optional Accessories
Model No | Accessory | Unit | Quantity |

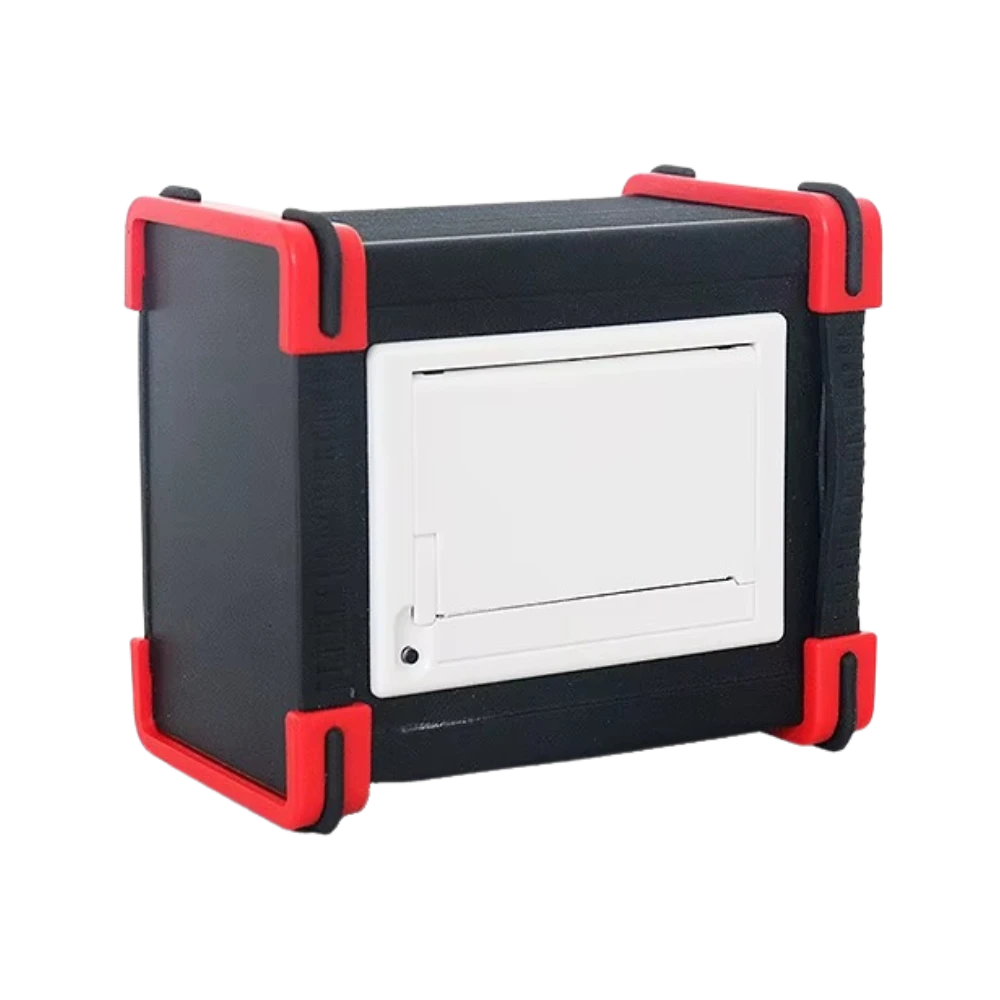

LMDPA-A100-P1 | Printer | Each | 1 |
LMDPA-A100-A1 | Aluminum adapter | Set | 1 |
LMDPA-A100-C1 | Copper adapter | Set | 1 |
Applications
Dew Point Analyzer LMDPA-A100 is ideal to monitors dew point levels in gas systems for industries and laboratories. It supports gas analysis in power plants, manufacturing, and environmental monitoring.
Frequently Asked Questions
1 What is a Dew Point Analyzer?
A Dew Point Analyzer is an apparatus designed to measure the temperature at which air or gas becomes saturated with moisture and starts to condense.
2 Can Dew Point Analyzer be used in high-humidity environments?
It is engineered to handle high-humidity environments.
3 What kind of maintenance does Dew Point Analyzer require?
Regular maintenance includes cleaning of sensors, proper calibration and replacement of worn out components.
4 4. What factors influence the accuracy of Dew Point Analyzer?
It is affected by environmental conditions such as temperature fluctuations, pressure changes, sensor degradation and calibration errors.
5 What is the difference between a Dew Point Analyzer and a Hygrometer?
A Dew Point Analyzer measures the specific temperature at which moisture condenses, whereas a Hygrometer measures the relative humidity of the air.
6 Can Dew Point Analyzer be used for gas mixtures?
It can be used to measure the dew point in gas mixtures.
7 Can Dew Point Analyzer be used in the pharmaceutical industry?
It is crucial in ensuring the proper storage and transportation conditions for sensitive pharmaceutical products.
8 Can Dew Point Analyzer be used to monitor moisture in fuels?
It can be used in fuel monitoring to measure moisture content.
9 Can Dew Point Analyzer be used in the automotive industry?
It is used in the automotive industry to monitor moisture levels in air conditioning systems.
10 Can Dew Point Analyzer be used to monitor atmospheric conditions?
It is used in meteorology and atmospheric studies to monitor the moisture content in the air.
