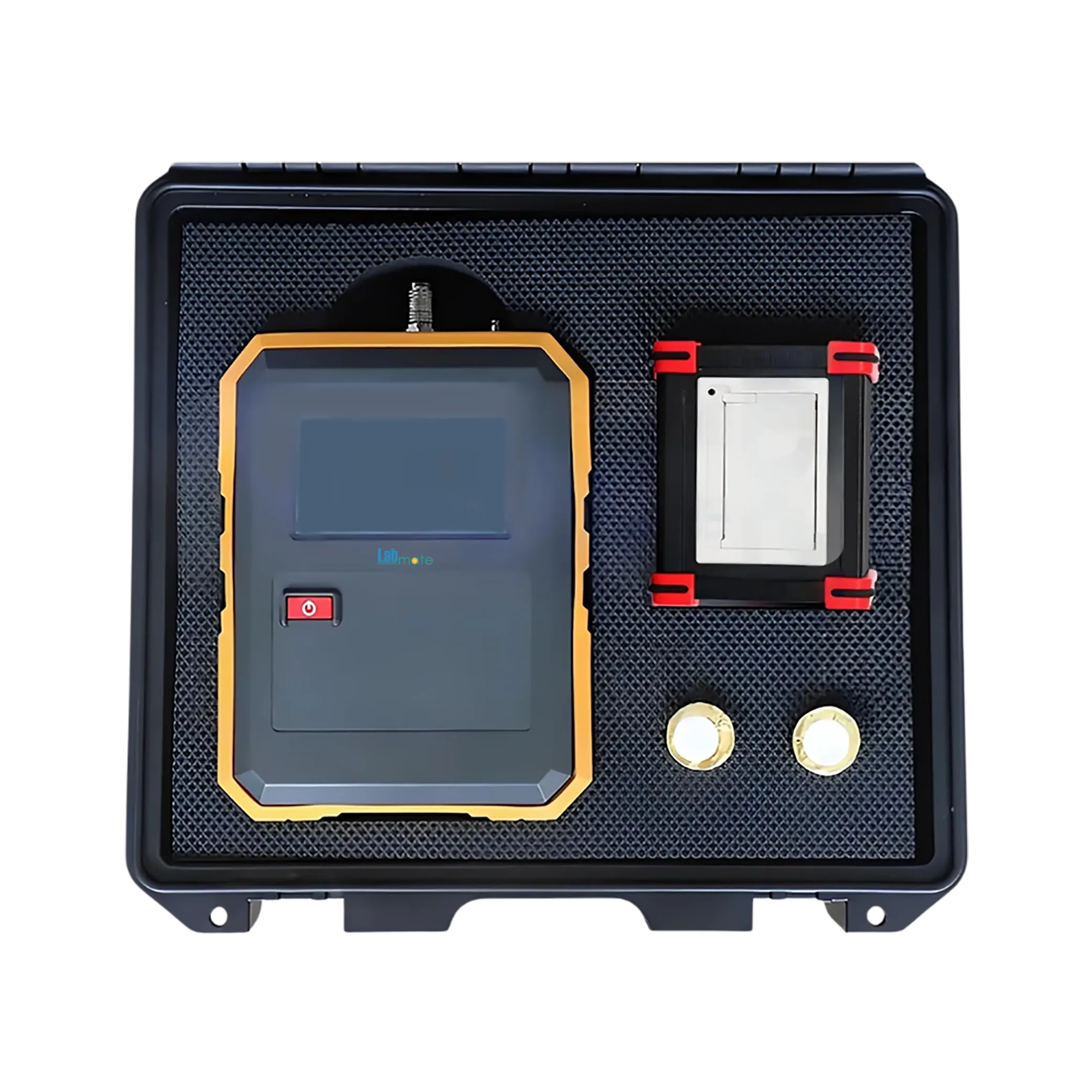

Dew Point Analyzer LMDPA-A100 Catalog

Overview

Dew Point Analyzer LMDPA-A100 ensures monitoring of Saturation temperature levels from -80℃ to 20℃. It features high-capacity storage accommodating up to 1000 test records for effective data management. Equipped with large-screen curve display, it visualizes real-time measurement. Integrates rechargeable lithium battery for continuous operation of up to 15 hours. Our Analyzer monitors dew point reading in gas systems for industrial, laboratory, and environmental settings.

Features :

Self-calibration

Fast result

Leak-proof

self-locking connector

USB port data transfer

Specifications :

Measurement Range	-80℃ to 20℃ (0.04ppm to 23700ppm)
Measurement Accuracy	±1.0C (-60℃ to 20℃), ±2.0℃ (-80℃ to - 60°C)
Response Time	-60℃ to 20C: 5 seconds (63%), 45 seconds (90%) 20℃ to - 60℃:10 seconds (63%), 240 seconds (90%)
Display	4.3-inch color touch screen
Power Display	Percentage of battery status
Date Display	Year, month, day
Time Display	Hour, minute, second
Operating Temperature	-40℃ to 60℃
Storage Temperature	40℃ to 80℃
Ambient Temperature	10℃ to 60℃
Ambient Humidity	0 to 100% RH
Battery Charging Time	2 hours
Battery Run Time	≥10 hours
Power Supply	AC 220V; Built-in rechargeable battery
Dimension	250×100×300mm
Weight	2 Kg

Standard Accessories :

Accessory Name	Quantity	Unit
Gas inlet pipe	1	Piece
Gas outlet pipe	1	Piece
PTFE TAPE	1	Piece
Printing paper	2	Piece
USB flash	1	Piece
25.2V charger	1	Piece
Network cable	1	Piece

Optional Accessories :



Model No	Accessory	Unit	Quantity
LMDPA-A100-P1	Printer	Each	1
LMDPA-A100-A1	Aluminum adapter	Set	1
LMDPA-A100-C1	Copper adapter	Set	1

Applications :

Dew Point Analyzer LMDPA-A100 is ideal to monitors dew point levels in gas systems for industries and laboratories. It supports gas analysis in power plants, manufacturing, and environmental monitoring.
