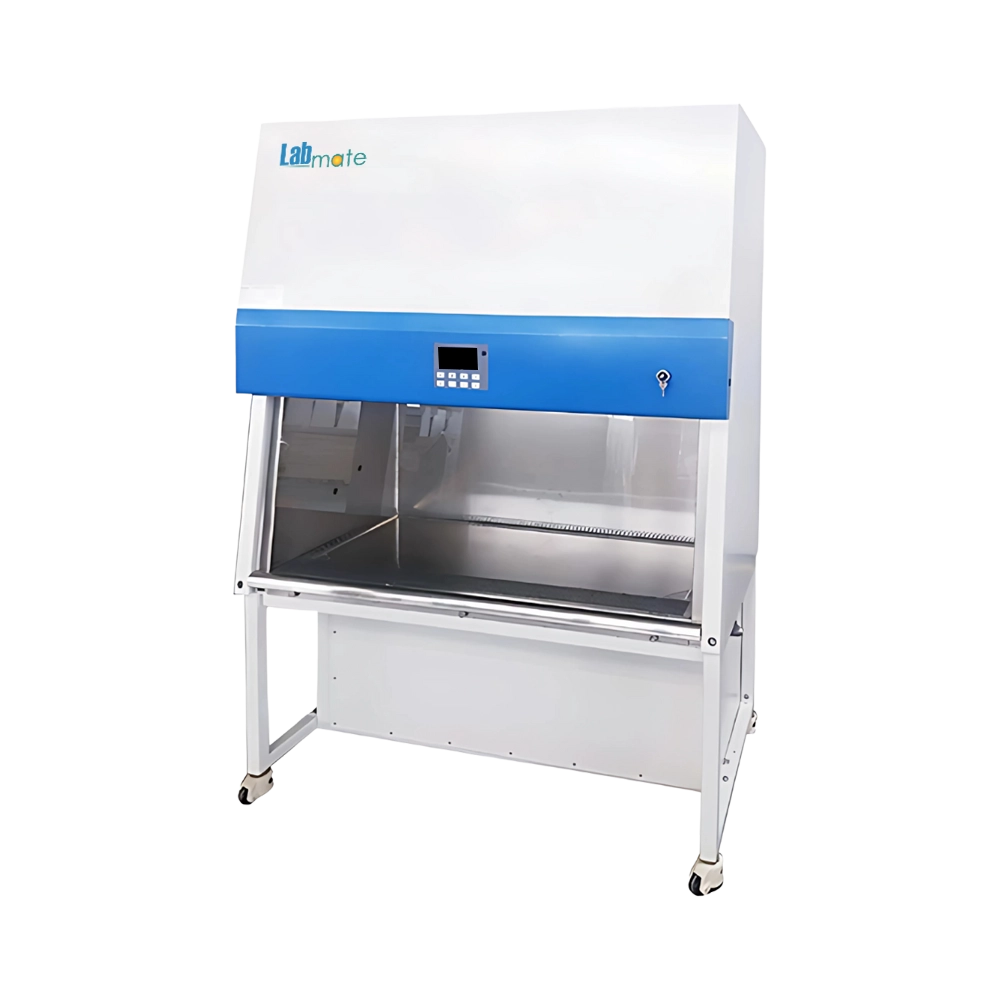

Cytotoxic Safety Cabinet LMCY-A101 is designed with a microprocessor control system that ensures accurate ventilation, temperature, and humidity adjustment for the safe handling of cytotoxic drugs. It features an inflow velocity of 0.55 m/s and a downflow velocity of 0.33 m/s making it an ideal for handling cytotoxic agents. Enhanced with a triple-layered glass pane with an anti-UV radiation layer provides visibility and protects operators from harmful radiation.
Get QuoteCabinet Size | 54 Inches |
Inflow Velocity | 0.55 m/s |
Down flow Velocity | 0.33 m/s |
Exhaust Volume | 465m³/h |
Internal Working Area | 0.73 m³/h |
Air Supply Filter | HEPA Filter (99.999 % efficiency at 0.12 µm) |
First Exhaust Filter | HEPA Filter (99.999 % efficiency at 0.3 µm) |
Second Exhaust Filter | HEPA Filter (99.999 % efficiency at 0.3 µm) |
Max. Door Opening Height | 440 mm (17") |
Safety Door Opening Height | 200 mm (8") |
UV Lamp | 30 W |
Illuminating Lamp | LED Lamp (16 W) |
Illumination | ≥ 1000 Lux |
Display | LCD Display |
Noise | EN 12469 ≤ 48 dB / NSF 49 ≤ 61 dB |
Power Consumption | 900 W |
Power Supply | AC 220 / 110 V ± 10 % ; 50 / 60 Hz |
Internal Dimension | 1220 × 600 × 660 mm |
External Dimension | 1380 × 760 × 2100 mm |
Weight | 371 kg |
Intuitive LCD display centrally placed at eye level for easy monitoring
Efficient sterilization is performed at 253.7 nm UV emission
Alarm system for abnormal pressure, unsafe door height, and filter life
Memory function ensures constant operation when power-failure
The remote-control function makes operation easier and more convenient
PVC bags make the transfer process convenient and quick
Waterproof sockets for using small devices

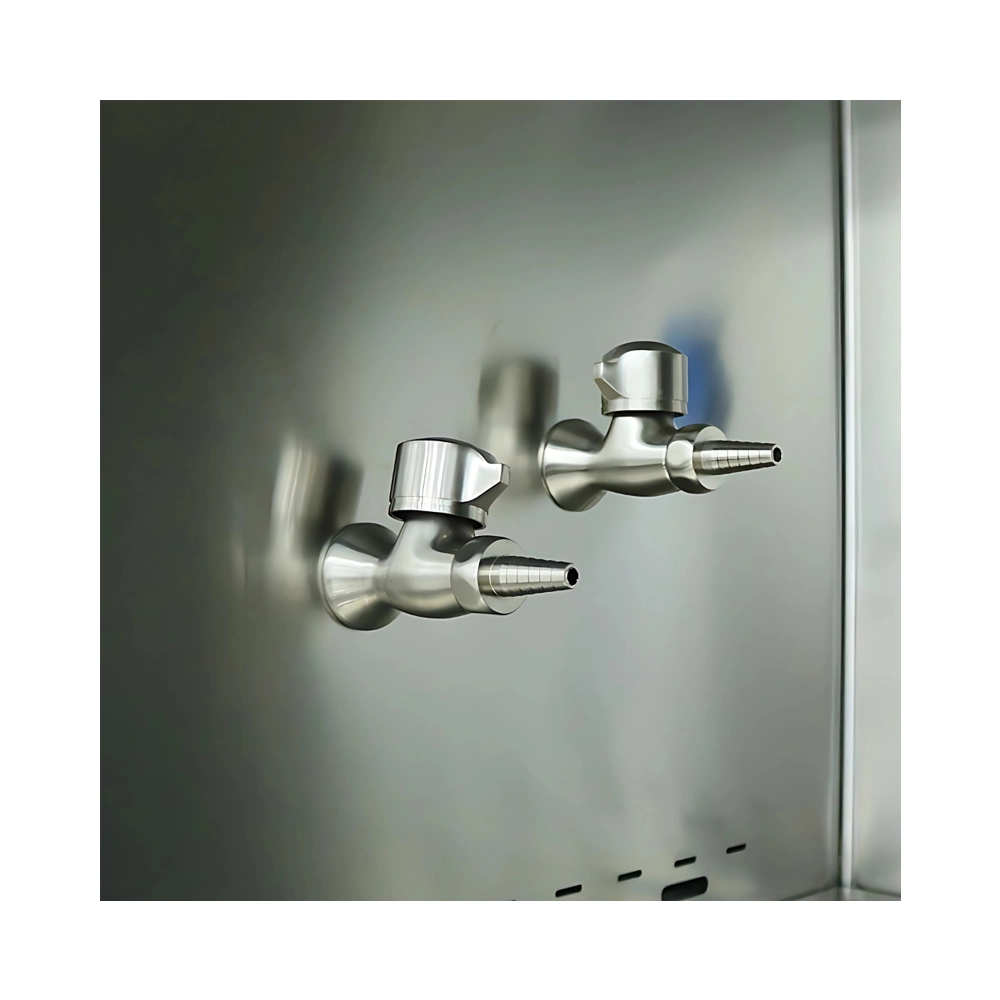

High-quality stainless-steel water tap and gas tap
Non-corrosive 304 stainless steel workbench
Cold-rolled steel body construction with anti-bacteria powder coating
Model No | Name | Quantity | Image |
---|---|---|---|
LFHC-04 | Bag In and Bag Out Filter | 1 | |
LFHC-06 | Base Stand | 1 | |
LFHC-09 | Drain Valve | 1 | |
LFHC-22 | LED Lamp | 2 (12 W) | |
LFHC-25 | Remote Control | 1 | |
LFHC-29 | UV Lamp | 2 (18 W) | |
LFHC-30 | Water and Gas Tap | 1 | |
LFHC-34 | Waterproof Socket | 2 (Total Load: ≤ 500 W) |
Model No | Name | Quantity | Image |
---|---|---|---|
LFHC-02 | Airflow Tester | 1 | |
LFHC-03 | Arm-rest | 1 | |
LFHC-23 | Infrared Sterilizer | 1 |
It is extensively used in research institutes and laboratories for culturing and manipulating microorganisms, analyzing biological samples, and disinfecting and decontaminating equipment and surfaces.
