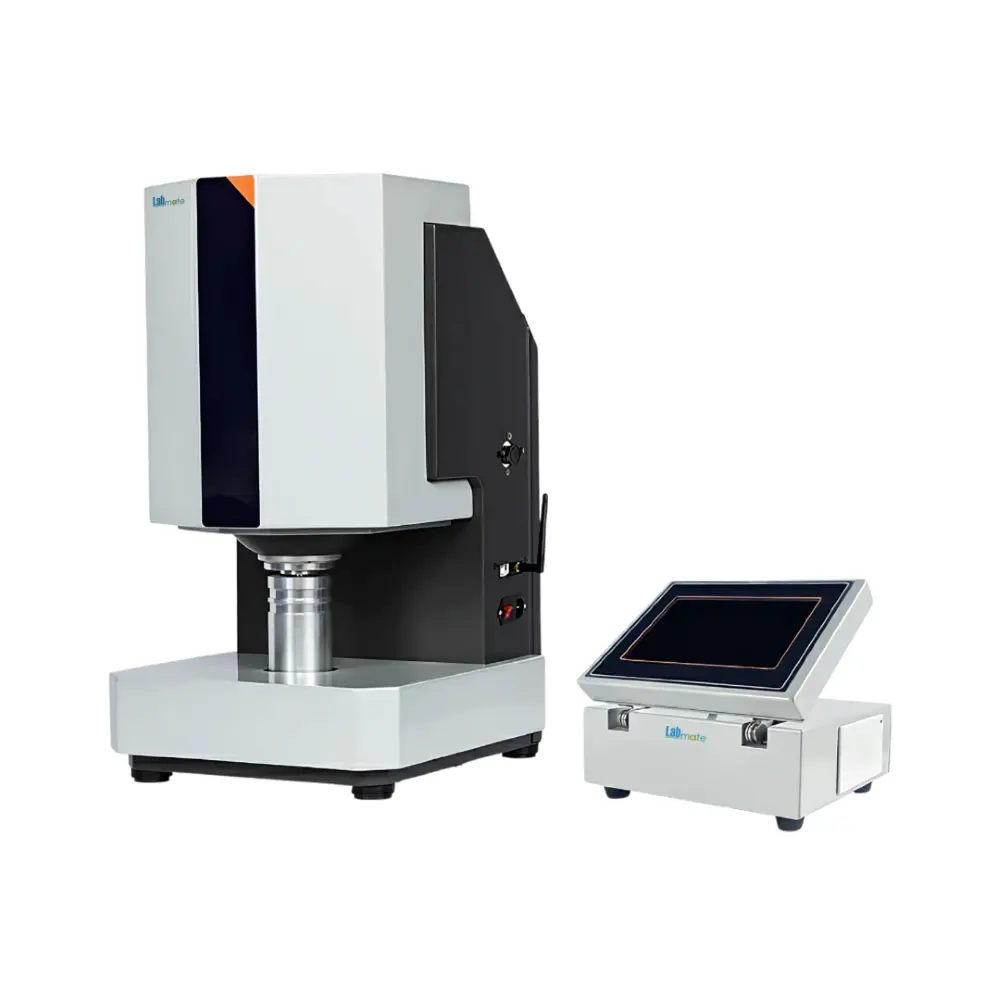

Color Spectrophotometer LMCLS-A100 offers wavelength range of 400 to 700 nm. It features high-performance Cortex-M4 ARM processor for rapid processing and stable test results. Integrates built-in touchscreen for fast standalone operation without needing connected computer. Equipped with pulsed xenon lamp, it delivers consistent, high-intensity illumination for reliable testing. Our Spectrophotometer is ideal for analyzing whiteness, color, and difference in solids across paper, textiles, and materials.
Specifications
| Wavelength Range | 400 to 700 nm |
| Spectral Bandwidth | 10nm |
| Measuring Range | 0 to 200% |
| Measurement Time | 4 to 20 seconds |
| Light Source | Pulsed Xenon lamp, D65 and C light source correction |
| Measuring Area | Φ28 mm / Φ 34 mm |
| Display | 7-inch IPS HD touch screen |
| Display Resolution | 1024×600 pixels |
| Photometer Linear Error | 0.3% |
| Receiver | 128 cell photo arrays |
| Repeatability | Less than or equal to 0.05 CIELAB |
| Reproducibility | Less than or equal to 0.30 CIELAB |
| Visual Angle | 2°,10° |
| Spectral Data Interval | 10nm |
| UV Cut-Off Filter | 395, 420nm |
| Communication Interface | USB2.0, WIFI (2.4G) |
| Working Temperature | 10 to 35℃ |
| Humidity | Less than or equal to 85% |
| Power Consumption | 50W |
| Power Supply | 100 to 240V, 50/60 Hz |
| Removable Touchscreen Dimension | 225×170×120 mm |
| Host Dimension | 310×340×540 mm |
| Packing Dimension | 600×400×610 mm |
| Net Weight | 23.5kg |
| Gross Weight | 40 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Color Spectrophotometer LMCLS-A100 | $ 36137.5 | Each of 1 |
Features
Flat field grating
Photoelectric sensor
UV stepper control
USB data export
QMS system support
Historical data access
Print-ready reports
Applications
Color Spectrophotometer LMCLS-A100 determines whiteness, color, and color difference of solids in paper, printing, textiles, ceramics, chemicals, grains, salts, and construction materials.
