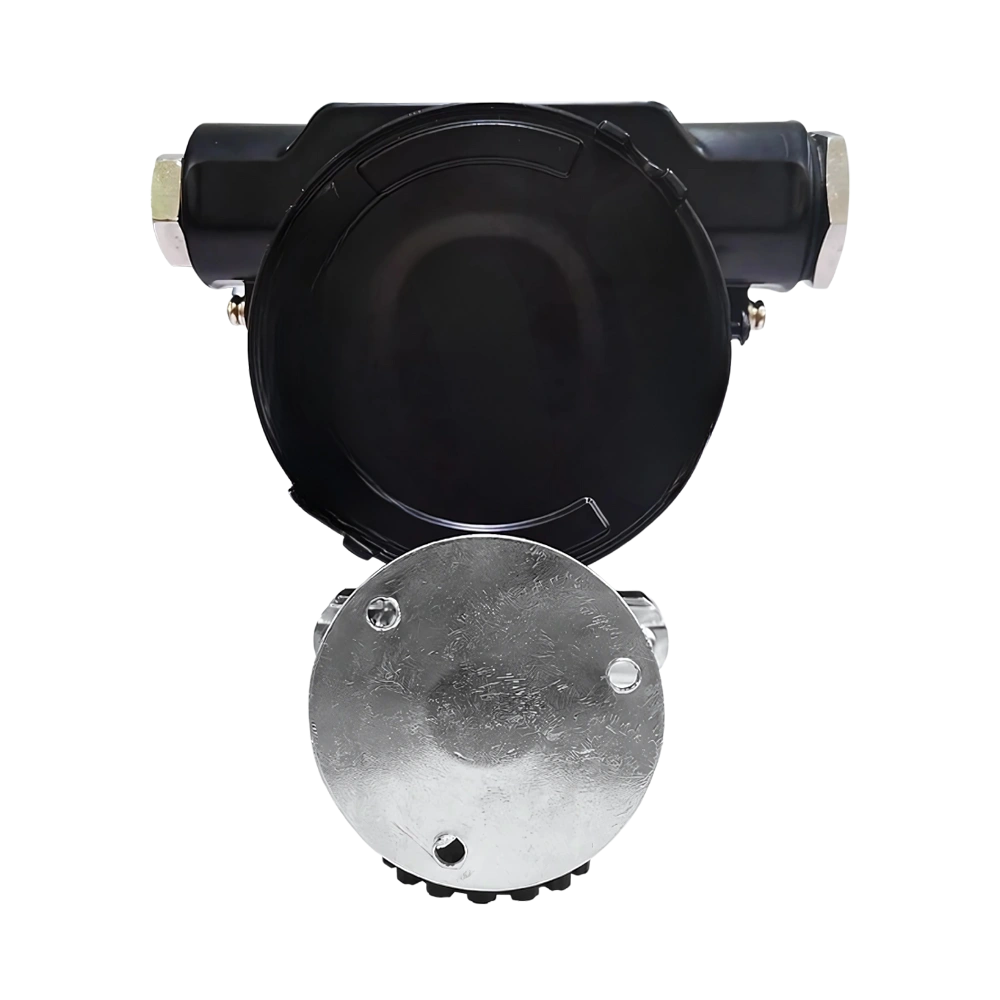

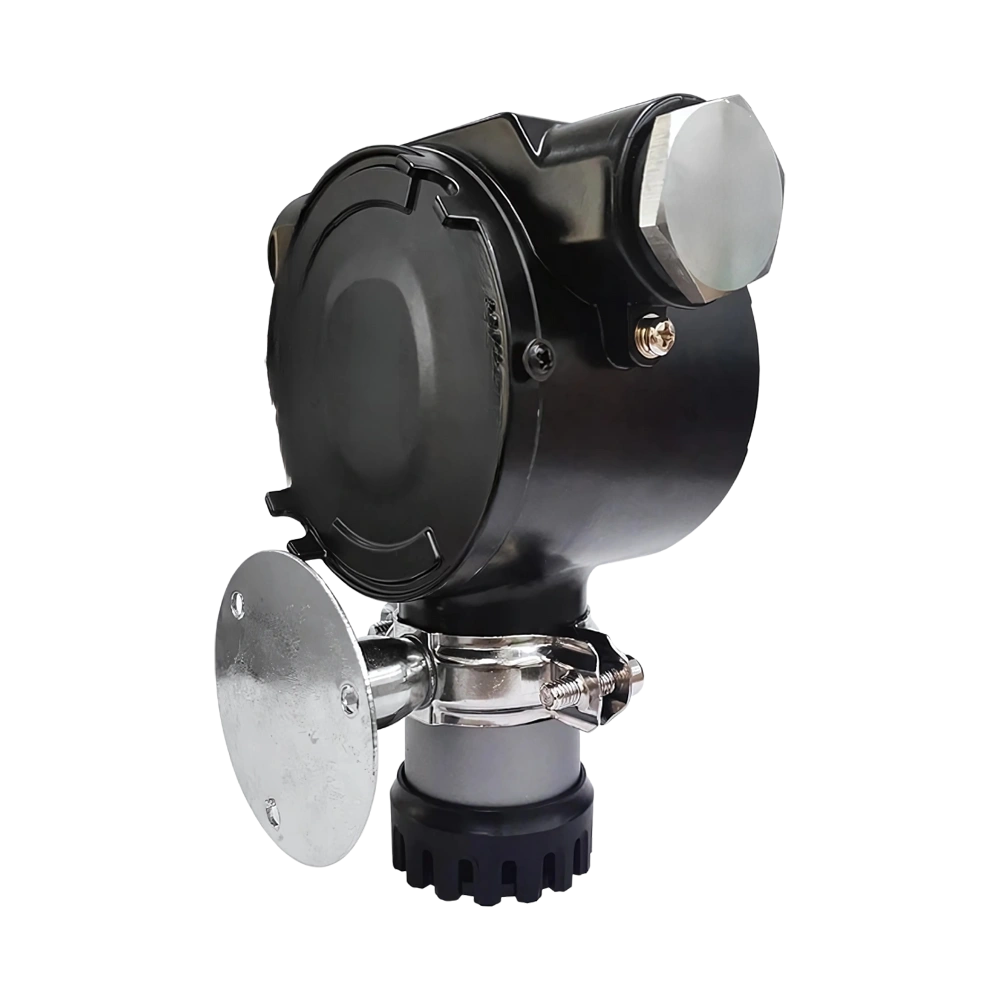

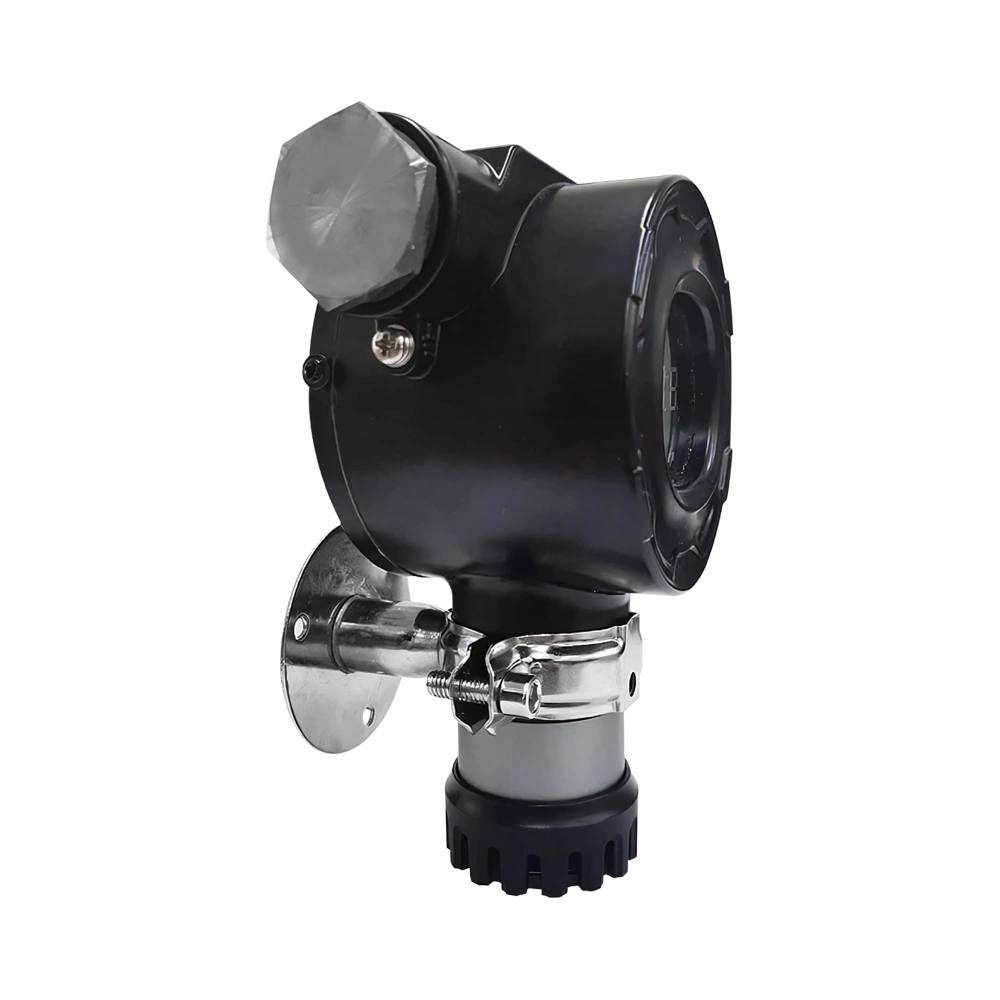

CO Gas Detector LMCOD-A100 detects carbon monoxide with 0 to 1000 ppm range. It features hot-pluggable design for easy maintenance after installation and continuous gas detection. Equipped with magnetic wand, it enables safe and simple menu navigation in explosive areas. Incorporates relay output set for direct communication with control systems or alarms. Our Gas Detector ensures gas level monitoring in industrial plants, confined spaces, and gas processing units.
Specifications
| Gas Detected | Carbon monoxide |
| Measurement Range | 0 to 1000 ppm |
| Detection Principle | Electrochemistry |
| Resolution | 1 ppm |
| Accuracy | Less than or equal to ±2 to 5% FS |
| Display | LED display |
| Working Temperature Range | -20 to 55℃ |
| Working Pressure | 86 to 106 kPa |
| Power Dissipation | Toxic gas: Less than or equal to 2.5W, Flammable gas: Less than or equal to 4W |
| Communication Mode | 4 to 20mA, RS485 |
| Wireless Transmission | LORA |
| Housing Material | Die-cast aluminium |
| Electrical Interface | Standard internal screw thread M20 × 1.5 |
| Protection Grade | IP66/68 |
| Explosion-Proof Grade | IECEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb ；ATEX：Ex db IIC T6 Gb，Ex db ia IIC T6 Gb |
| Power Supply | 24VDC |
| Dimension | 157.8×128.8×69.6 mm |
| Net Weight | 1 Kg |
| Gross Weight | 1.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| CO Gas Detector LMCOD-A100 | $ 1450 | Each of 1 |
Features
Explosion-proof protection
Water-dust resistant
Modular sensor chamber
Lightweight body
Quick installation
Analog signal output
Applications
CO Gas Detector LMCOD-A100 enables carbon monoxide monitoring in confined areas, industrial zones, garages, boiler rooms, and gas facilities, ensuring workplace safety and protection in hazardous environments.
