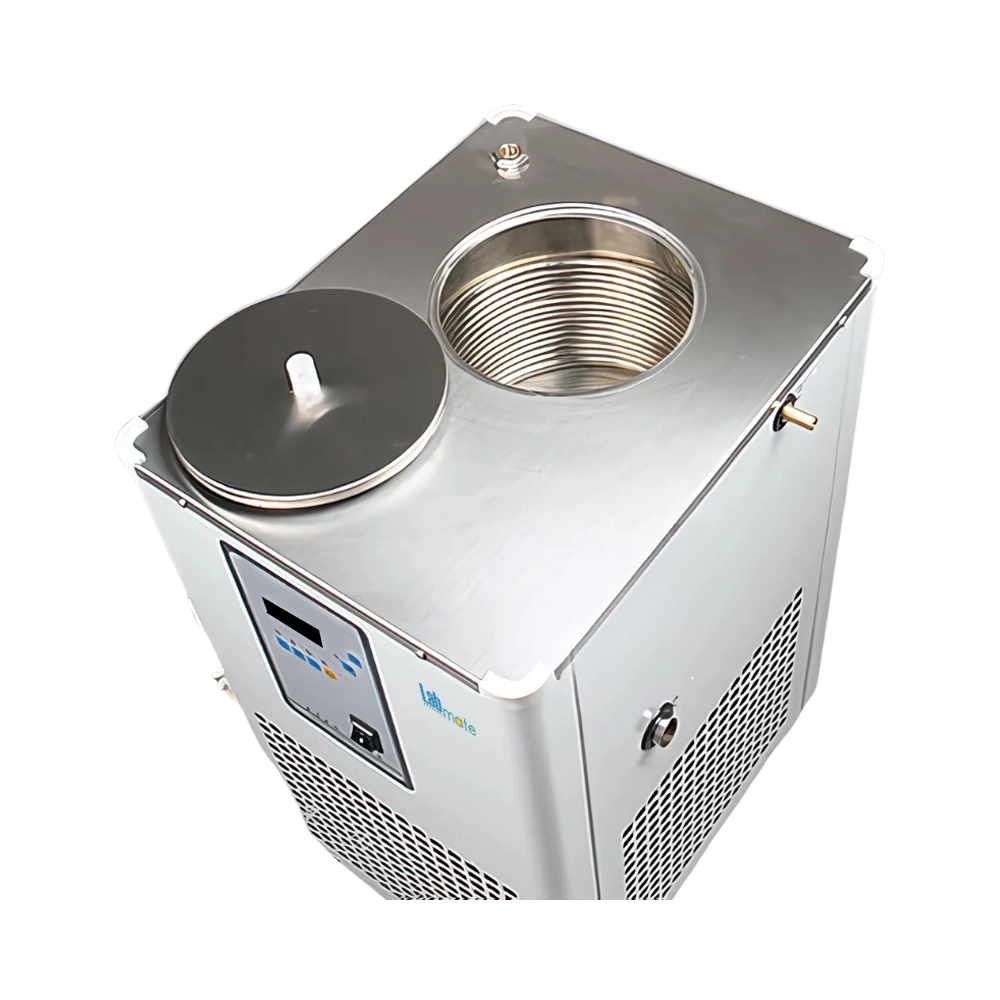

Circulating Chiller LMCC-502 is routine cooling equipment used within the laboratory and industry offering a temperature range of -50 ℃ to 30 ℃. Featured with multifunctional controller, controlling the temperature. It is equipped with RS 485 Interface and 7-inch color touch screen with temperature curve record and excel-format export. Featured with safety devices for freezer overload protection, high-pressure switch, overload relay and thermal protection device etc.
CatalogSpecifications
| Capacity | 5 L |
| Lowest Temperature | Minus 30 ℃ |
| Medium Temperature Range | Minus 50 ℃ to 30 ℃ |
| Temperature Control | multifunctional controller |
| Display | Digital |
| Alarm System | yes |
| Evaporator | Copper tube |
| Refrigerant | R-404A |
| Material | High quality stainless-steel bath vessel |
| Voltage | 220 V/60 HZ |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Circulating Chiller LMCC-502 | $1,956.00 | Pack of 1 |
Features
Integrated with multifunctional controller for controlling the temperature
Heat-conducting medium outlet temperature controller as optional
Featured with RS 485 Interface as communication protocol
Provided with 7-inch color touch screen with temperature curve record and excel-format export
Heat-conducting medium temperature feedback PT100
Adopts self-diagnosis system during freezer overload and high pressure
Security system is provided for overload relay and thermal protection
Circulation Pump of 35 L/min 2.5 bar, 50 L/min 2.5 bar and 110 L/min 2.5 bar and Pressure maximum of 6 bar circulating pump are provided optionally if required
Applications
They are ideal equipment’s used in the laboratory and industry for cooling equipment’s like rotary evaporators, glass reactors and wiped film evaporators etc.,
