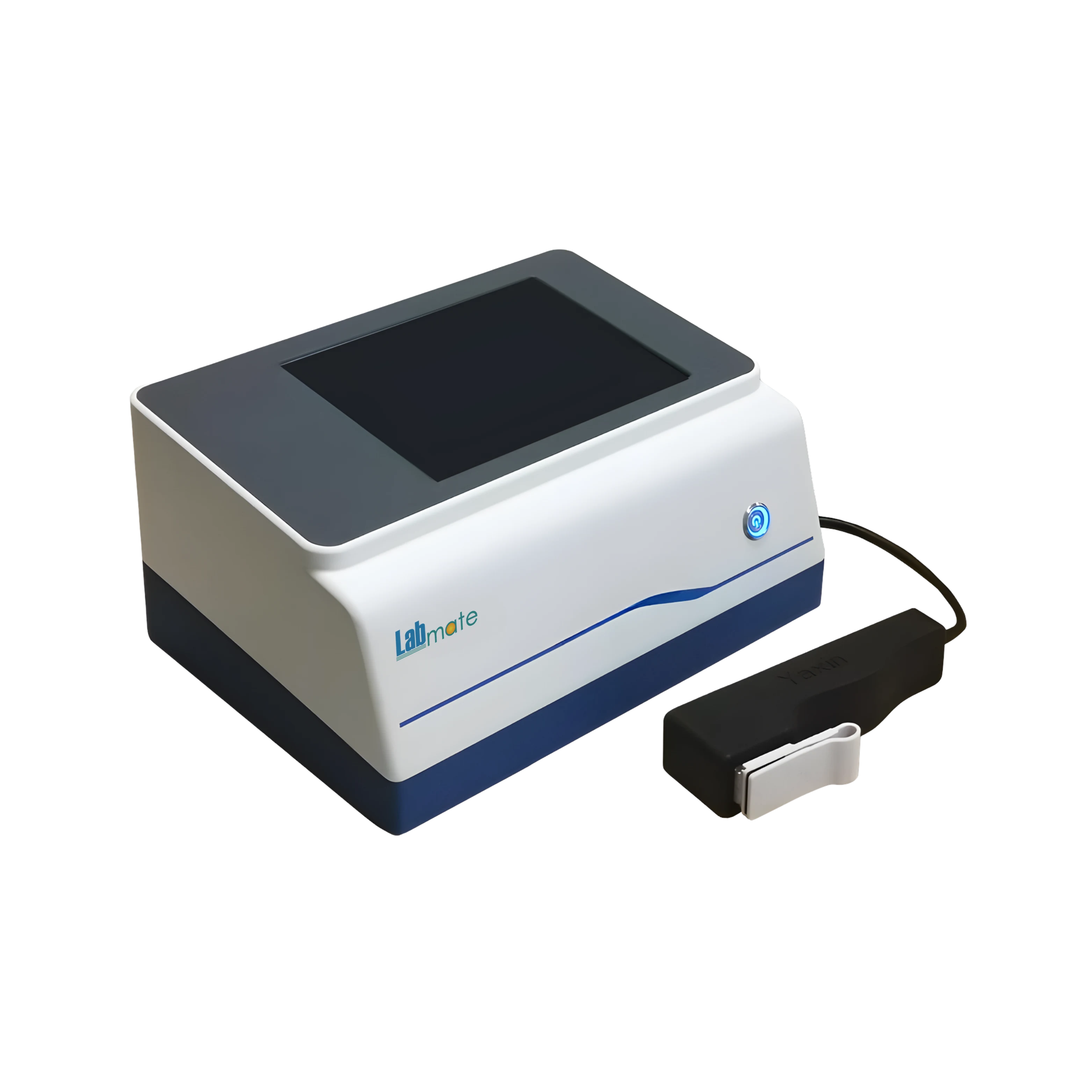

Chlorophyll Fluorometer LMCFR-A101 offers a shortest sampling interval of 5 μs for high resolution kinetics analysis. It features a PIN silicon photodiode to capture fluorescence signals under varying illumination conditions. Built-in 256 MB memory with support for external 32 GB SD card for extended data storage. Integrated with versatile export modes including raw binary, tables, and graphical output formats. Our Chlorophyll Fluorometer includes a capacitive touch keyboard for smooth input and menu selection.
Specifications
| Blue Light Source | LED 470 nm |
| Blue Light Intensity Range | 0 to 8000 μmol·m⁻²s⁻¹ (adjustable) |
| Red Light Source | LED 630 nm |
| Red Light Intensity Range | 0 to 8000 μmol·m⁻²·s⁻¹ (adjustable) |
| Far Red-Light Source | LED 730 nm |
| Far Red-Light Measurement Range | 0 to 60 seconds |
| Far Red-Light Narrow Pulse | 1 to 200Hz frequency |
| Far Red-Light Intensity Range | 0 to 5000 μmol·m⁻²·s⁻¹ |
| Actinic Light Source | 470nm,650nm |
| Actinic Light Intensity Range | 0 to 3500 μmol·m⁻²·s⁻¹ |
| Actinic Light Measurement Time | l to 10 minutes |
| Light Adaptation Source | 470nm,650nm |
| Light Adaptation Intensity Range | 0 to 2000 μmol·m⁻²·s⁻¹ |
| Light Adaptation Measurement Time | l to 10 minutes |
| Detector | PIN Silicon Photodiode |
| Shortest Sampling Interval | 5 μs each time, continuous pulse |
| Measurement Function | OJP Mode (OJIP); Slow Kinetics (SP); Rapid Light Response Curve (RLC); Dark Relaxation (DR); After Steady-state Mode; PIFR Mode (PIFR); Multi-pulse-OJIP (MP-OJP); Fo' Mode; Chlorophyll Concentration Measurement |
| Storage Capacity | Built-in 256 MB + external SD card 32GB |
| Data Transfer | Virtual USB Stick mode or SD card export |
| Data Formats | Raw Binary Data, Tables, And Graph Formats |
| Display | 8-inch 800 × 600 color touch screen |
| Keyboard | Capacitive Touch Keyboard |
| Working Environment | 0 to 50°C temperature, 0 to 90% RH |
| Storage Temperature | -20 to 50°C |
| Battery Type | Rechargeable Lithium Battery |
| Battery Run Time | 12 hours |
| Power Supply | 8.4V, 7Ah |
| Dark Leaf-Clip Dimension | 70 × 25 × 5 mm |
| Dimension | 280 × 200 × 140 mm |
| Net Weight | 2.0 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Chlorophyll Fluorometer LMCFR-A101 | $ 49000 | Each of 1 |
Features
Advanced Multi-Spectral Light Sources
PIN Silicon Photodiode Detector
Comprehensive Measurement Functions
Touchscreen Display
Dark Leaf-Clip
Rechargeable Lithium Battery
Standard Accessories
| Model No. | Accessory |
| LMCFR-A101-M1 | Main Unit |
| LMCFR-A101-H1 | Handheld Detectors |
| LMCFR-A101-L1 | Leaf Clips |
| LMCFR-A101-D1 | Data Transmission Line |
| LMCFR-A101-C1 | Charger |
| LMCFR-A101-U1 | USB Flash Drive (Including Software) |
| LMCFR-A101-S1 | SD Card |
| LMCFR-A101-R1 | Card Reader |
| LMCFR-A101-I1 | Instrument Case |
Applications
Chlorophyll Fluorometer LMCFR-A101 is employed for detailed evaluation of photosynthetic performance and early identification of stress factors in agricultural, forestry, and aquatic plant systems.
