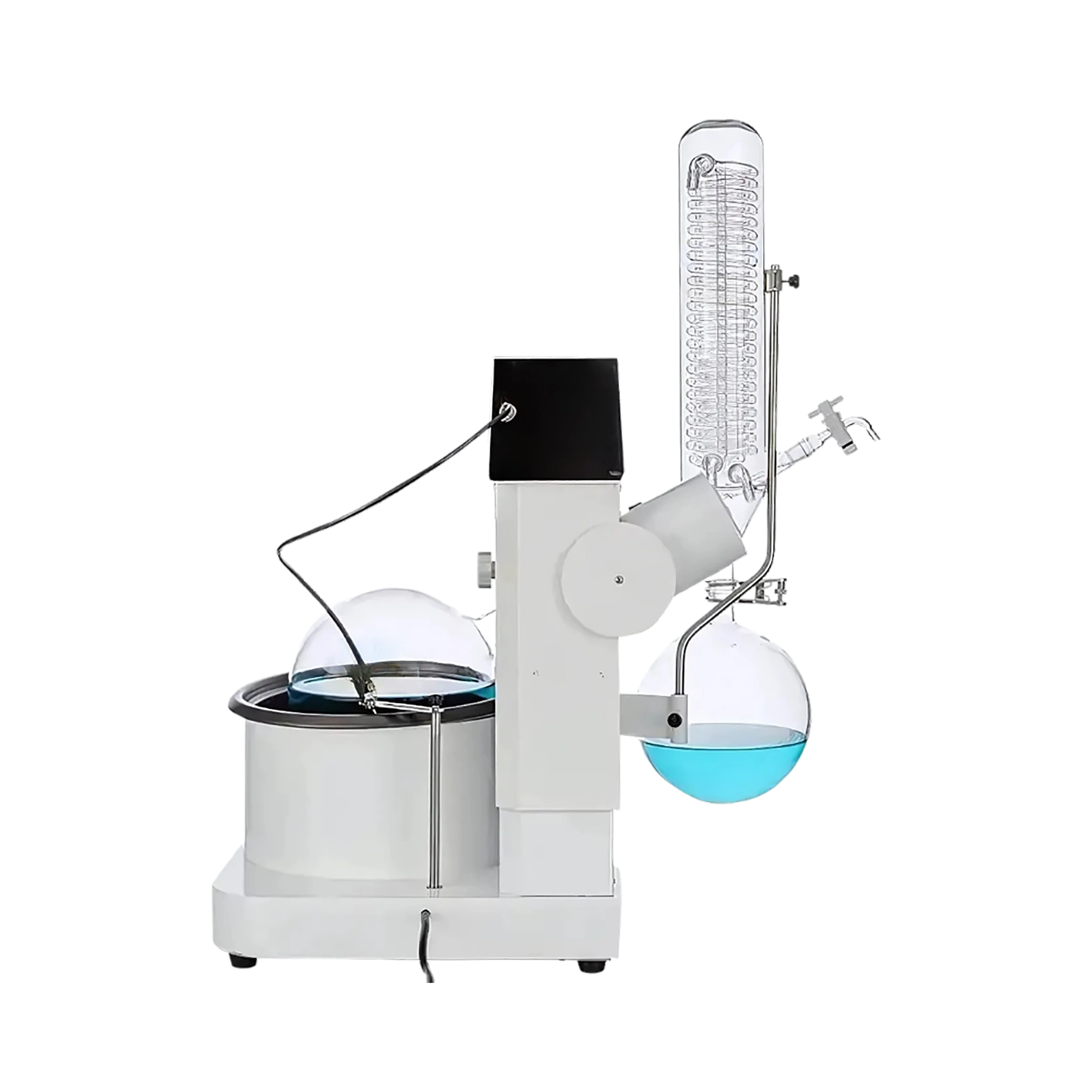

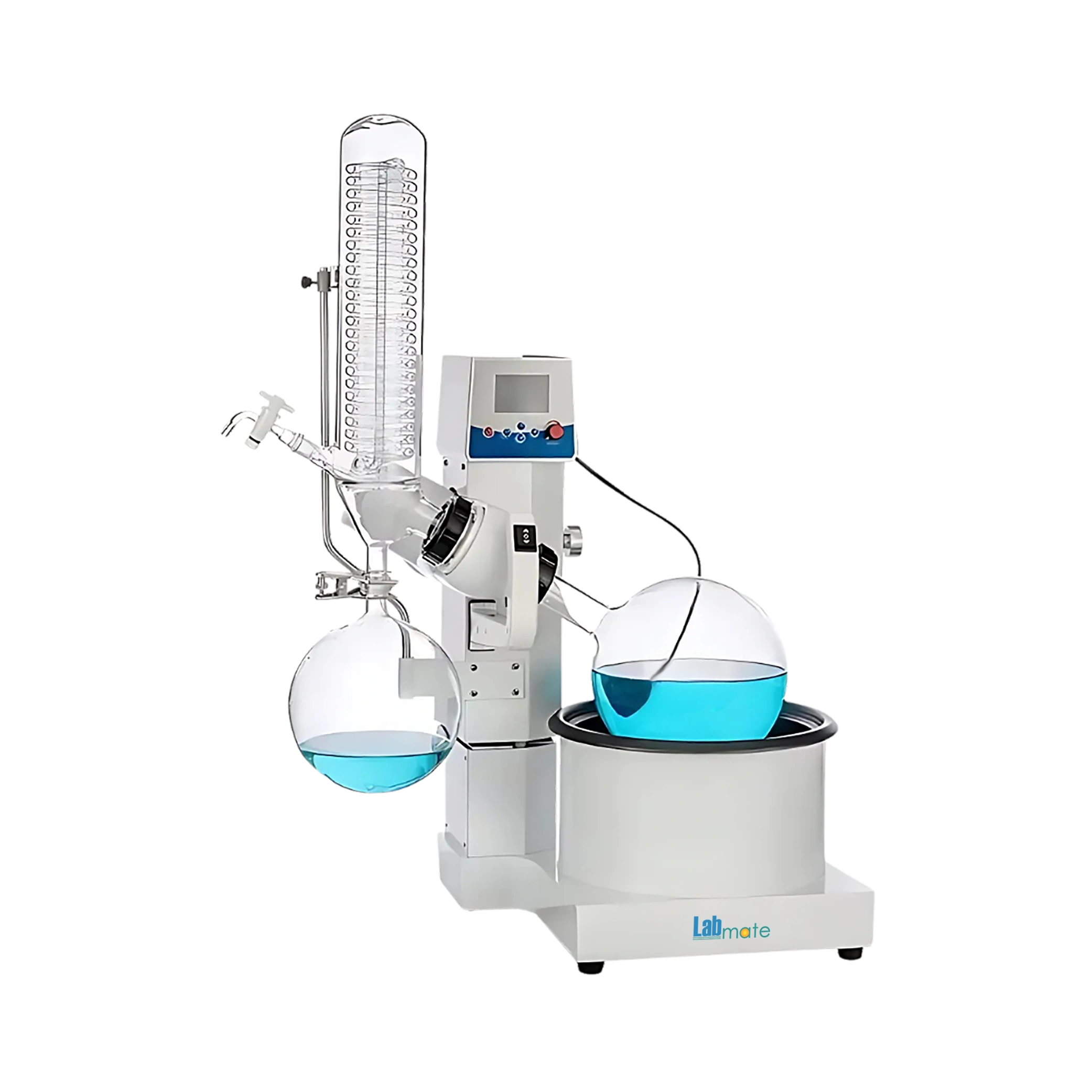

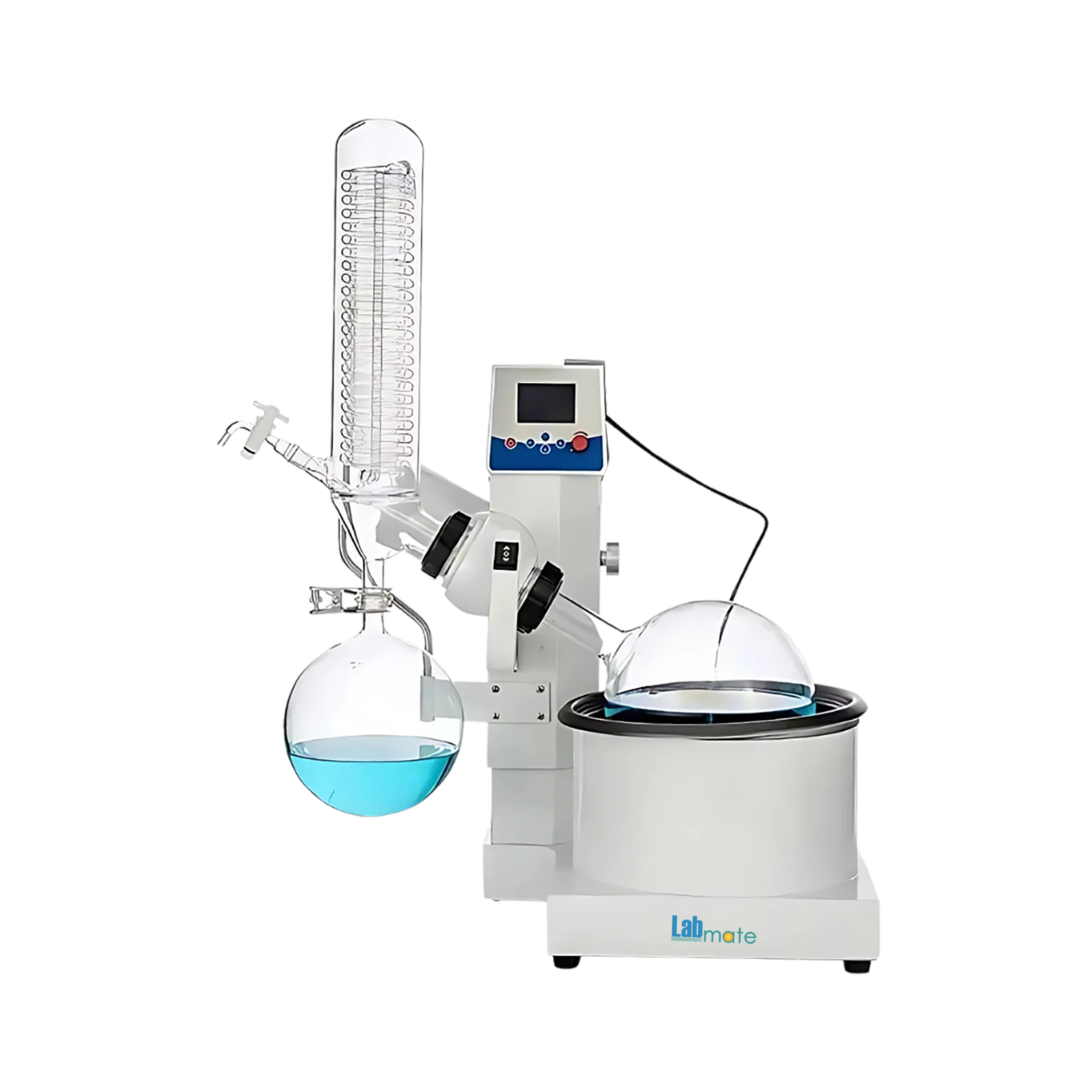

Automatic Rotary Evaporator LMRE-A101 is designed with 2-liter rotary bottle. Equipped with auto-lift functionality, it allows smooth vertical movement and reliable adjustment. Incorporates digital displays for rotation speed and heating bath temperature, ensuring optimal control. Water and oil heating bath features ergonomic handles for comfortable and safe handling during procedure. Our Rotary Evaporator ensures distillation, solvent recovery, and sample concentration of chemicals and solvents.
Specifications
| Rotary Bottle Volume | 2L |
| Collecting Bottle Volume | 1L |
| Stirring Speed | 0 to 200rpm/min |
| Temperature Control Range | Ambient to 99℃ |
| Rotary Bottle Diameter | 166 mm |
| Rotary Bottle Neck Diameter | 24 mm |
| Collecting Bottle Diameter | 131mm |
| Collecting Bottle Neck Diameter | 35 mm |
| Temperature Accuracy | ±1℃ |
| Motor Lift Stroke Distance | 120mm |
| Condensing Area | 0.17m2 |
| Feeding Valve | 19 mm standard plug valve |
| Vacuum Suction Nozzle | 10 mm pagoda joint |
| Condensing Pipe Circulation Nozzle | 12 mm pagoda joint |
| Heating Pot Capacity | 6.2L |
| Vacuum Degree | 0.098Mpa |
| Heating Power | 1200W |
| Lifting Motor Power | 20W |
| Rotating Motor Power | 40W |
| Power Consumption | 1260W |
| Power Supply | 220V/50Hz |
| Heating Pot Size | 235×140 mm |
| Condenser Size | 85×430 mm |
| Dimensions | 630×400× (690 to 810) mm |
| Net Weight | 20.5Kg |
| Gross Weight | 25Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Automatic Rotary Evaporator LMRE-A101 | $ 2881.25 | Each of 1 |
Features
Clamp mechanism
Key-button lock
Adjustable angle
Single-hand operation
Glassware compatible
Standard Accessories
Model No | Accessory Name | Unit | Quantity |
LMRE-A101-M1 | Machine head with motor | Set | 1 |
LMRE-A101-G1 | Gauge outfit | Each | 1 |
LMRE-A101-G2 | Glass Tube | Set | 1 |
LMRE-A101-W1 | Water bath | Set | 1 |
LMRE-A101-B1 | Ball milling mouth clip | Each | 1 |
LMRE-A101-T1 | Tetrafluoro tube | Each | 1 |
LMRE-A101-T2 | Threaded joint | Each | 1 |
LMRE-A101-H1 | Heating wire | Each | 1 |
LMRE-A101-L1 | Locking handwheel | Each | 1 |
LMRE-A101-L2 | Luo hat with cushion | Set | 2 |
LMRE-A101-O1 | Oil seal | Set | 1 |
LMRE-A101-O2 | Φ43 O- ring | Each | 1 |
LMRE-A101-R1 | Rotary Flask | Each | 1 |
LMRE-A101-C1 | Collecting Flask | Each | 1 |
LMRE-A101-C2 | Condenser | Each | 1 |
LMRE-A101-F1 | Feed valve | Each | 1 |
LMRE-A101-F2 | 10A FUSE | Each | 2 |
LMRE-A101-S1 | Stop pin | Each | 1 |
Applications
Automatic Rotary Evaporator LMRE-A101 is ideal for distillation, solvent recovery, and sample concentration of chemicals, solvents, extracts, and biological samples in chemical, pharmaceutical, and research laboratories.
Similar Products
$ 3600 / Each of 1
$ 3000 / Pack of 1
$ 3012.5 / Each of 1
Frequently Asked Questions
1 What is an Automatic Rotary Evaporator?
An Automatic Rotary Evaporator is an apparatus designed to efficiently remove solvents from samples through controlled evaporation, rotation and vacuum.
2 How does Automatic Rotary Evaporator work?
It applies heat, rotation and vacuum to evaporate solvents, while a condenser is used to captures the vapor.
3 What types of samples can be processed with Automatic Rotary Evaporator?
It is used to process liquid samples containing solvents that need to be removed.
4 Is it necessary to use a vacuum pump with Automatic Rotary Evaporator?
Vacuum Pump is used to reduce the pressure in the system, lowering the boiling point of the solvent and speeding up the evaporation process.
5 Can Automatic Rotary Evaporator be used for solvent recovery?
It is widely used for solvent recovery.
6 Can Automatic Rotary Evaporator be used for distillation?
It can be used for distillation.
7 What types of solvents can be used with Automatic Rotary Evaporator?
It is ideal for volatile organic solvents such as ethanol, acetone, methanol, hexane and toluene.
8 What is the role of condenser in Automatic Rotary Evaporator?
It is used for cooling the vaporized solvent and converting it back into liquid form.
9 Can Automatic Rotary Evaporator be used for crystallization process?
It can be used in crystallization process.
10 Can Automatic Rotary Evaporator be used in pharmaceutical manufacturing?
It is commonly used in pharmaceutical manufacturing to purify compounds, remove solvents and recover active ingredients.
