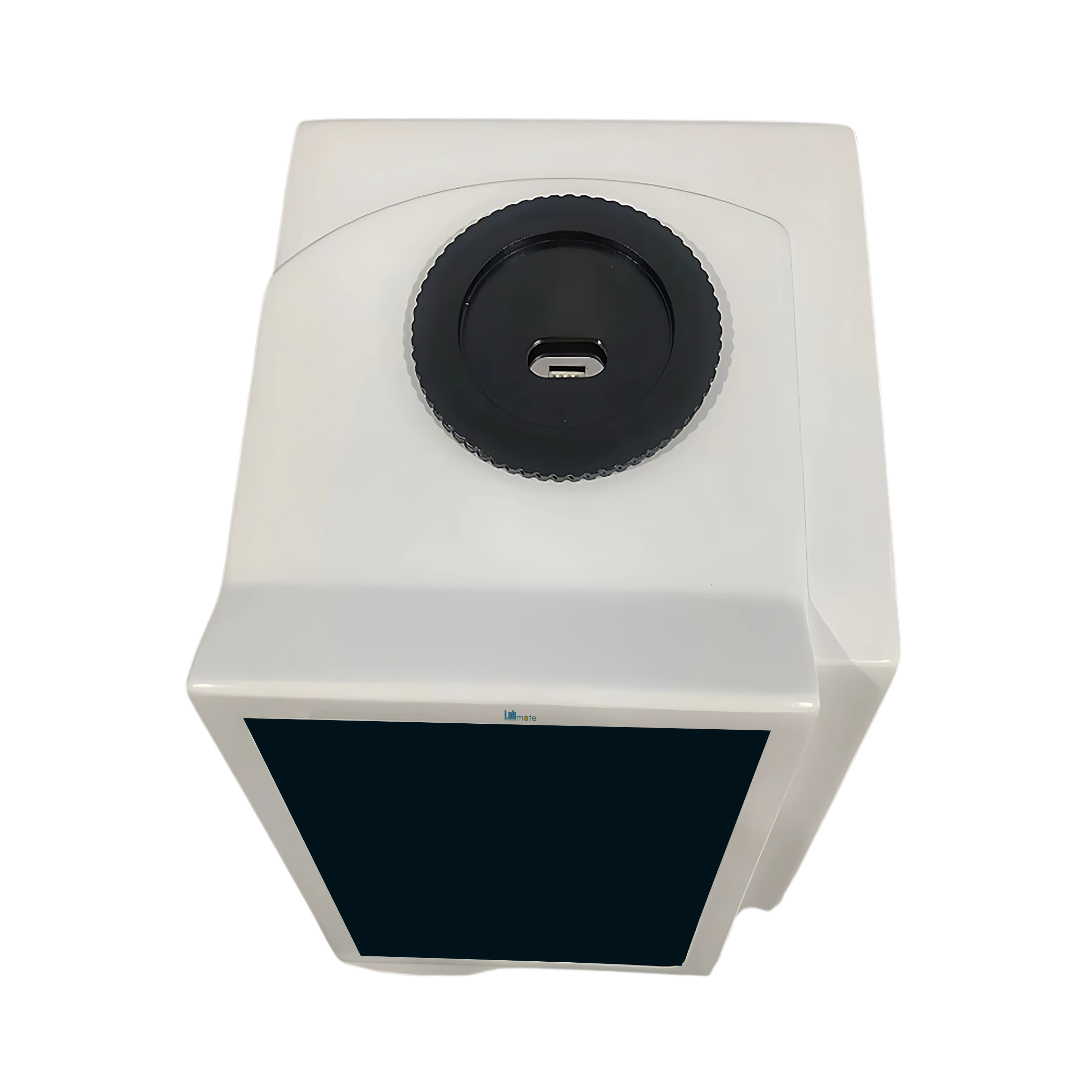

Automatic Melting Point Apparatus LMMA-A202 works between room temperature to 360℃. Its PID temperature control ensures stable heating and consistent temperature management. Its HD video provides clear visual inspection and reliable observation of the process. Its fully enclosed furnace design ensures safe operation, stable performance, and efficient heat retention. Our Melting Point Apparatus is ideal for chemical industry and medical research.
Specifications
| Temperature Range | Room Temperature to 360℃ |
| Resolution | 0.01℃ |
| Control Mode | body |
| Detection Method | Fully - Automatic |
| Processing Capacity | 4 pcs per batch |
| Heating Rate | 0.1℃ - -20℃ |
| Accuracy | ± 0.3℃ (Less than 250℃) ±0.5℃ (Greater than 250℃) |
| Repeatability | ± 0.1℃ at 0.1℃/ min |
| Magnification | 9 times |
| Storage | 32 GB |
| Map Save | 200 groups |
| Printing Method | Wi-Fi serial port |
| Export in multiple file formats | PDF and EXCEL |
| Data Interface | USB RS232 SD Wi-fi, RJ45, U disk |
| Small Capillary Size | Outer Diameter: ⏀1.3 mm; Inner Diameter: ⏀1.1 mm |
| Power Consumption | 120 W |
| Power Supply | 110 to 230 V, 50/ 60 Hz |
| Dimensions | 400 × 280 × 330 mm |
| Weight | 4.1 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Automatic Melting Point Apparatus LMMA-A202 | $ 9375 | Each of 1 |
Features
FTF Colour Touch Screen
HD Recording Function
Custom Method Libraries
Export File Verification
Audit Trails
Direct Data Printing
Applications
Automatic Melting Point Apparatus LMMA-A202 plays a vital role in the chemical industry and medical research, in the production of food, drugs, spices, dyes, and other organic crystalline substances.
Selection Guide
Automatic Melting Point Apparatus LMMA-A202 is best suited for research laboratories, pharmaceutical quality control, and academic institutions requiring accurate and automated melting point determination. This model is commonly used in chemical purity testing, drug formulation studies, and research experiments involving thermal characterization of compounds. Its fully automatic operation with visual or digital detection makes it suitable for high-throughput environments. Certified for ISO and GLP compliance, it ensures traceable and reliable results essential for regulated labs. With features like high-resolution temperature control, sample processing capacity of up to 4 samples per batch, and data storage capabilities, this model is a reliable choice for users seeking accuracy, efficiency, and compliance with international testing standards.
Similar Products
$ 5875 / Each of 1
$ 10375 / Each of 1
$ 5375 / Each of 1
$ 11500 / Each of 1
Frequently Asked Questions
1 What is an Automatic Melting Point Device?
An Automatic Melting Point Device is an apparatus designed to determine the precise melting point of substances.
2 How does an Automatic Melting Point Device work?
It works by gradually heating a sample while monitoring it with a camera or sensor to detect the exact temperature at which it changes from solid to liquid.
3 What types of samples can be tested using Automatic Melting Point Device?
It is suitable for testing a variety of solid samples, including organic compounds, pharmaceuticals, and chemicals.
4 How is Automatic Melting Point Device used in pharmaceutical quality control?
It is used in pharmaceutical quality control to verify the purity and identity of raw materials and final products by measuring their melting points according to pharmacopeial standards.
5 Is Automatic Melting Point Device useful in food quality testing?
It is used in food quality testing to analyze fats and oils, ensuring they meet specific melting characteristics important for processing and shelf life.
6 How is Automatic Melting Point Device applied in forensic analysis?
In forensic analysis, it is used to identify unknown substances or verify the consistency of drug samples by comparing their melting points with known standards.
7 What is role of Automatic Melting Point Device in regulatory compliance?
It plays a critical role in regulatory compliance by providing traceable and documented melting point data required by pharmacopeias and quality assurance programs.
8 How does Automatic Melting Point Device support R&D in material science?
It supports R&D in material science by accurately measuring melting transitions of newly developed compounds, helping to characterize their thermal properties.
9 Can Automatic Melting Point Device be used for polymorphism studies?
It is a valuable tool for polymorphism studies as it can detect different crystalline forms of a substance based on their unique melting points.
10 What role does Automatic Melting Point Device play in API characterization?
It plays a key role in active pharmaceutical ingredient (API) characterization by confirming compound identity and assessing purity through melting behavior.
