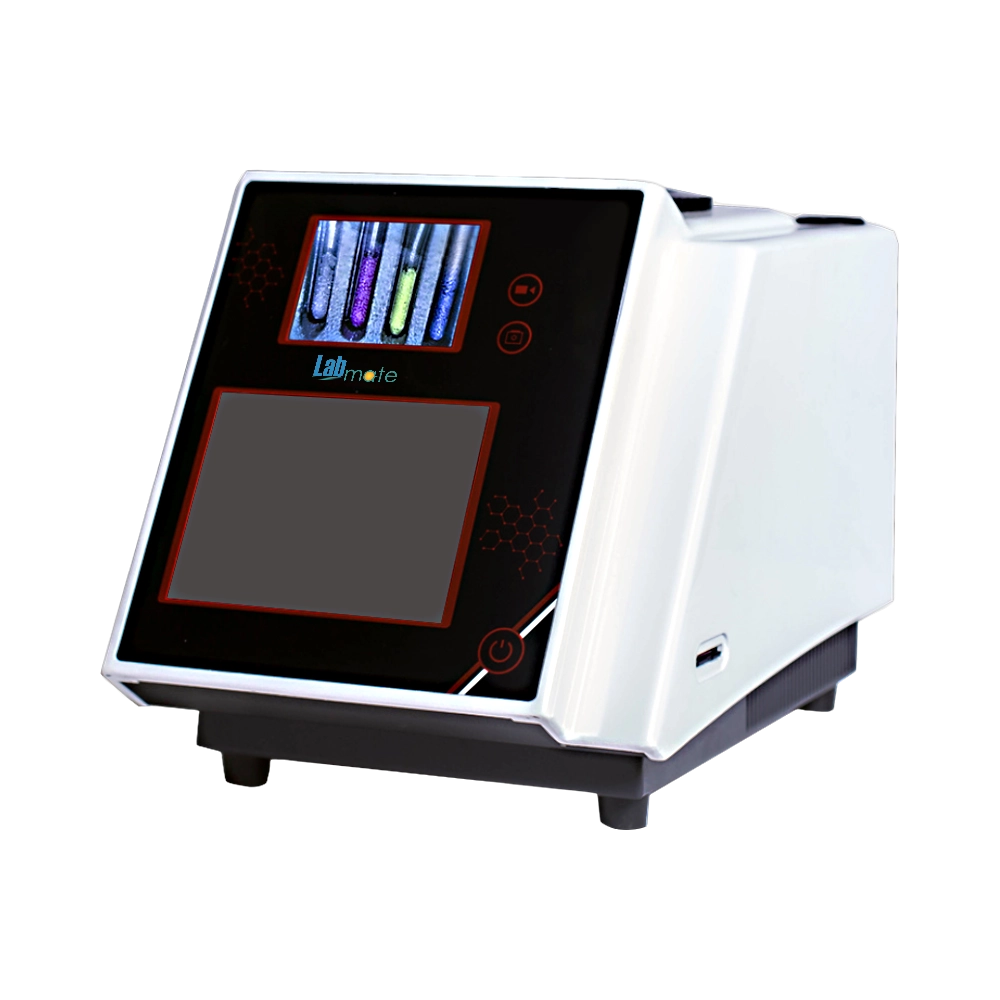

Automatic Melting Point Apparatus LMMA-A201 processing capacity of 4 samples per batch. It enables direct data printing through connected printer, ensuring quick and convenient record keeping. Its HD recording function enables clear documentation and easy playback of process. It features fully enclosed structure of furnace body, ensuring safety, stability, and efficient heat retention. Our Melting Point Apparatus is ideal for chemical industry and medical research
Specifications
| Temperature Range | Room Temperature to 420℃ |
| Resolution | 0.01℃ |
| Detection Method | Semi- Automatic |
| Processing Capacity | 4 pcs per batch |
| Heating Rate | 0.1℃ to -20℃ |
| Accuracy | ± 0.2℃ (250℃) |
| Repeatability | ± 0.1℃ at 0.1℃/ min |
| Magnification | 9 times |
| Display Method | 10.4-inch FTF color touch screen |
| Storage | 64 GB |
| Map Save | 400 groups |
| Printing Method | Wi-Fi serial port |
| Export in multiple file formats | PDF and EXCEL |
| Data Interface | USB RS232 SD Wi-fi, RJ45, U disk |
| Small Capillary Size | Outer Diameter: ⏀1.3 mm; Inner Diameter: ⏀1.1 mm |
| Power Consumption | 120 W |
| Power Supply | 110 to 230 V, 50/ 60 Hz |
| Dimensions | 400 × 280 × 330 mm |
| Weight | 4.1 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Automatic Melting Point Apparatus LMMA-A201 | $ 5875 | Each of 1 |
Features
PID temperature control
HD video
FTF colour touch screen
Custom Method Libraries
Export File Verification
Audit Trails
Applications
Automatic Melting Point Apparatus LMMA-A201 is ideal for pharmaceutical, chemical, food, and research industries for melting point determination and quality analysis
Selection Guide
Automatic Melting Point Apparatus LMMA-A201 is a semi automated system designed for precise and efficient melting point determination, widely used in pharmaceutical research, quality control, chemical analysis, and academic laboratories. With a high temperature range of up to 400°C and a resolution of 0.01°C, it ensures accurate detection of melting points, especially in substances with narrow melting ranges. The device supports the simultaneous processing of four samples per batch, enhancing productivity in routine testing. Equipped with PID temperature control and a fully enclosed furnace design, it provides uniform heating and operational safety. This device is suitable for experiments and research studies that demand reliable and repeatable thermal analysis and comply with industry certifications such as GLP/GMP and 21 CFR Part 11, making it suitable for regulated environments. Its application spans across forensic labs, polymer testing, and academic demonstrations, particularly where automated, traceable, and high-accuracy results are essential.
Similar Products
$ 5375 / Each of 1
$ 10375 / Each of 1
$ 9375 / Each of 1
$ 11500 / Each of 1
Frequently Asked Questions
1 What is an Automatic Melting Point Device?
An Automatic Melting Point Device is an apparatus designed to determine the precise melting point of substances.
2 How does an Automatic Melting Point Device work?
It works by gradually heating a sample while monitoring it with a camera or sensor to detect the exact temperature at which it changes from solid to liquid.
3 What types of samples can be tested using Automatic Melting Point Device?
It is suitable for testing a variety of solid samples, including organic compounds, pharmaceuticals, and chemicals.
4 How is Automatic Melting Point Device used in pharmaceutical quality control?
It is used in pharmaceutical quality control to verify the purity and identity of raw materials and final products by measuring their melting points according to pharmacopeial standards.
5 Is Automatic Melting Point Device useful in food quality testing?
It is used in food quality testing to analyze fats and oils, ensuring they meet specific melting characteristics important for processing and shelf life.
6 How is Automatic Melting Point Device applied in forensic analysis?
In forensic analysis, it is used to identify unknown substances or verify the consistency of drug samples by comparing their melting points with known standards.
7 What is role of Automatic Melting Point Device in regulatory compliance?
It plays a critical role in regulatory compliance by providing traceable and documented melting point data required by pharmacopeias and quality assurance programs.
8 How does Automatic Melting Point Device support R&D in material science?
It supports R&D in material science by accurately measuring melting transitions of newly developed compounds, helping to characterize their thermal properties.
9 Can Automatic Melting Point Device be used for polymorphism studies?
It is a valuable tool for polymorphism studies as it can detect different crystalline forms of a substance based on their unique melting points.
10 What role does Automatic Melting Point Device play in API characterization?
It plays a key role in active pharmaceutical ingredient (API) characterization by confirming compound identity and assessing purity through melting behavior.
