Get Quote
Contact us now to receive a detailed quotation.

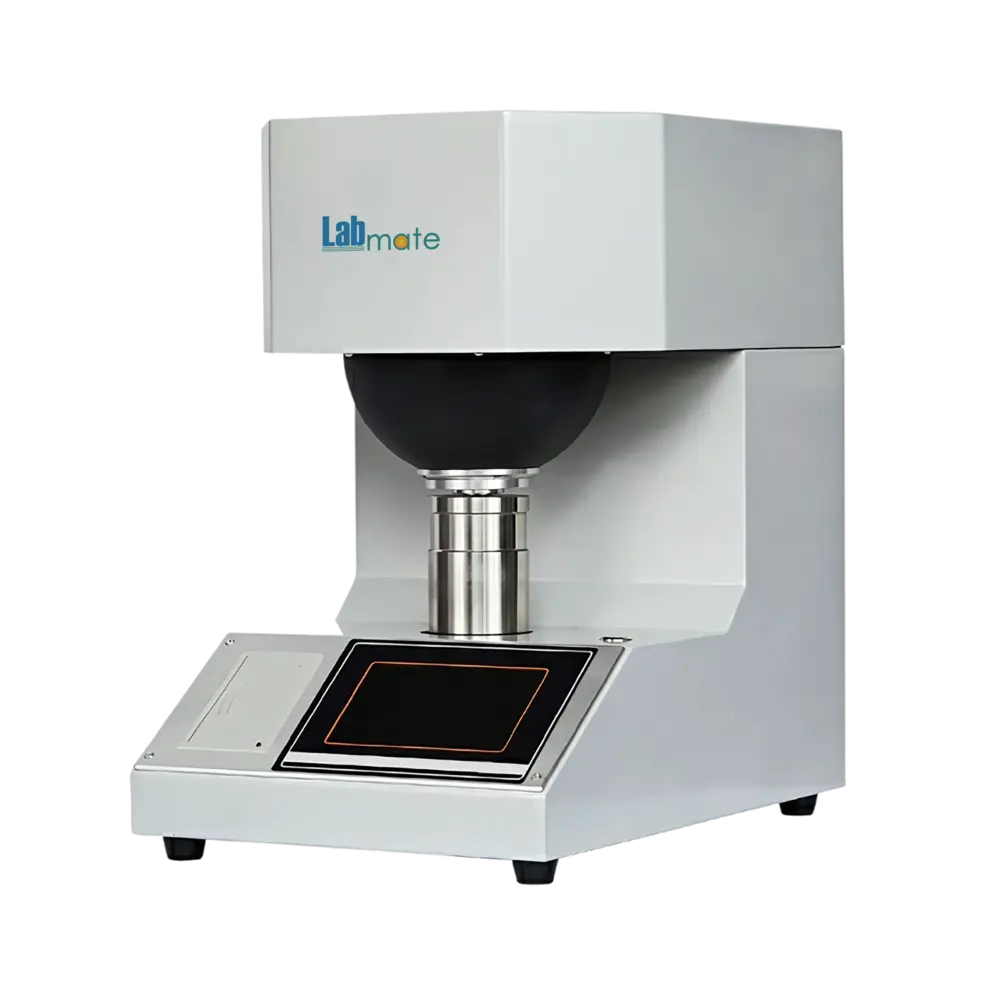

Automatic Colorimeter LMACO-A101 accommodates samples with diameter of at least 30 mm and thickness up to 40 mm. It features electromechanical integration that removes manual wheel rotation, enabling one-click whiteness and chromaticity measurement. Equipped with color LCD touch screen, it ensures an intuitive and user-friendly interface. Incorporates 32-bit ARM processor for faster data processing. Our Colorimeter checks whiteness, color, and properties in powders, fibers, coatings, and materials.
Specifications
| Sample Size | Test plate diameter greater than or equal to 30mm |
| Indication Accuracy | Chromaticity coordinate: less than or equal to 0.0001, others: 0.01 |
| Data Stability | 30 minutes after preheating, within ±5℃ temperature range |
| Repeatability Accuracy | Rx 、 Ry 、 Rz less than or equal to 0.03 ， chromaticity coordinates less than or equal to 0.003，R457 less than or equal to 0.03 |
| Specular Reflectance Accuracy | Less than or equal to 0.1 |
| Display | 5-inch TFT true color LCD touch screen |
| Printer | Built-in thermal printer |
| Working Temperature | 10 to 35℃ |
| Humidity | Less than or equal to 85％ |
| Power Consumption | 50W |
| Power Supply | 100 to 240V, 50/60 Hz |
| Dimension | 380×260×410 mm |
| Packing Dimension | 460×360×520 mm |
| Net Weight | 12.5 Kg |
| Gross Weight | 21 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Automatic Colorimeter LMACO-A101 | $ 6750 | Each of 1 |
Features
Positioning error-free
Quick learning curve
Historical data view
Dual reference mode
Ten reference slots
Power-off memory retention
Optional Accessories
| Model No. | Accessory name |
| LMACO-A101-R1 | RS232 interface and Computer software |
| LMACO-A101-C1 | Constant Powder Holder |
Applications
Automatic Colorimeter LMACO-A101 is applied to measure whiteness, color, and optical properties in powders, fibers, coatings, and building materials across quality control and material testing environments.
Similar Products
$ 5625 / Pack of 1
Frequently Asked Questions
1 What is an Automatic Colorimeter?
An Automatic Colorimeter is an apparatus designed to automatically measure the concentration of substances in a solution by analyzing light absorption.
2 How does an Automatic Colorimeter work?
It works by passing light through a solution and measuring the amount of light absorbed to determine the concentration of substances.
3 What kind of maintenance does Automatic Colorimeter require?
Routine maintenance includes regular cleaning of cuvettes, periodic calibration, and proper storage in a dry, dust-free environment.
4 Can Automatic Colorimeter be used in water quality testing?
It is used in water quality testing to measure parameters like chlorine, pH, turbidity, and various contaminants by analyzing the absorbance of light at specific wavelengths.
5 Can Automatic Colorimeter be used for food and beverage quality control?
It is commonly used in food and beverage industry to monitor color consistency, measure the concentration of ingredients like sugars or acids, and ensure product quality.
6 Can Automatic Colorimeter be used in pharmaceutical research?
It is used in determining the concentration of Active Pharmaceutical Ingredients (APIs) and monitoring the quality of formulations during development.
7 Can Automatic Colorimeter help in clinical diagnostics?
It is used to measure the concentration of substances like glucose, hemoglobin, or bilirubin in blood and urine samples for diagnostic purposes.
8 What role does Automatic Colorimeter play in environmental monitoring?
It is used in environmental monitoring to analyze soil and water samples, measuring pollutants or nutrients like nitrates and phosphates to ensure compliance with environmental standards.
9 Can Automatic Colorimeter be used in dairy product analysis?
It can analyze milk and other dairy products for fat content, protein concentration, and added vitamin levels by measuring light absorption after reagent reactions.
10 Is Automatic Colorimeter applicable in forensic science?
It is used for chemical analysis of bodily fluids or substances, aiding in toxicology or substance identification.
