Walk-In Fume Hood LMWH-A102

Walk-In Fume Hood LMWH-A102 is designed to protect sensitive biological applications against environmental pollution and cross-contamination by powder aerosol. Enhanced with an external exhaust blower for fast and quick operation with low power consumption. It stimulates an 1850 m³/h exhaust volume that works within the airflow velocity range between 0.3 to 0.8 m/s. A user-friendly control panel with an LCD screen allows intuitive operation for clear observation.

Catalog

Specifications

Cabinet Size	70 Inches
Inflow Velocity	0.3 to 0.8 m/s
Exhaust Volume	1850 m³/h
Max. Door Opening Height	1300 mm
Blower	External Blower
Glass Door Orientation	Front Glass: Manual, Sliding type
Illumination Lamp	LED Lamp (16 W)
Illumination	≥ 800 Lx
Noise	62 dB
Vibration	≤ 4 µm
Power Consumption	800 W
Power Supply	AC 220 / 110 V ± 10 % ; 50 / 60 Hz
Internal Dimension	1580 × 600 × 1650 mm
External Dimension	1800 × 800 × 2200 mm
Gross Weight	350 kg

Pricing

Product	Price	Unit	Action
Walk-In Fume Hood LMWH-A102	$3,170.00	Pack of 1	Add to cart Buy now

Features

User-friendly digital LED screen displayed all parameters of operational status
Energy-efficient microprocessor controller ensures temperature and humidity control
Supplied with resistance to weak acid and alkali
Improved with backside air compensation, to avoid turbulence in work area
Built-in centrifugal blower with adjustable air speed of about 9 levels
Configured with efficient UV sterilization with 253.7 nm emission
Integrated with activated carbon filter with working time of 3500 hrs
Include memory function for power-failure conditions
Chemical-resistant phenolic resin work bench
Reduced contamination risk with anti-bacteria powder-coated steel body

Standard Accessories

Model No	Name	Quantity	Image
LFHC-11	Exhaust Blower	1 (970 x 810 x 720 mm)
LFHC-12	Exhaust Duct (PVC)	1 (4 meters)
LFHC-17	Gas Remote Control	1

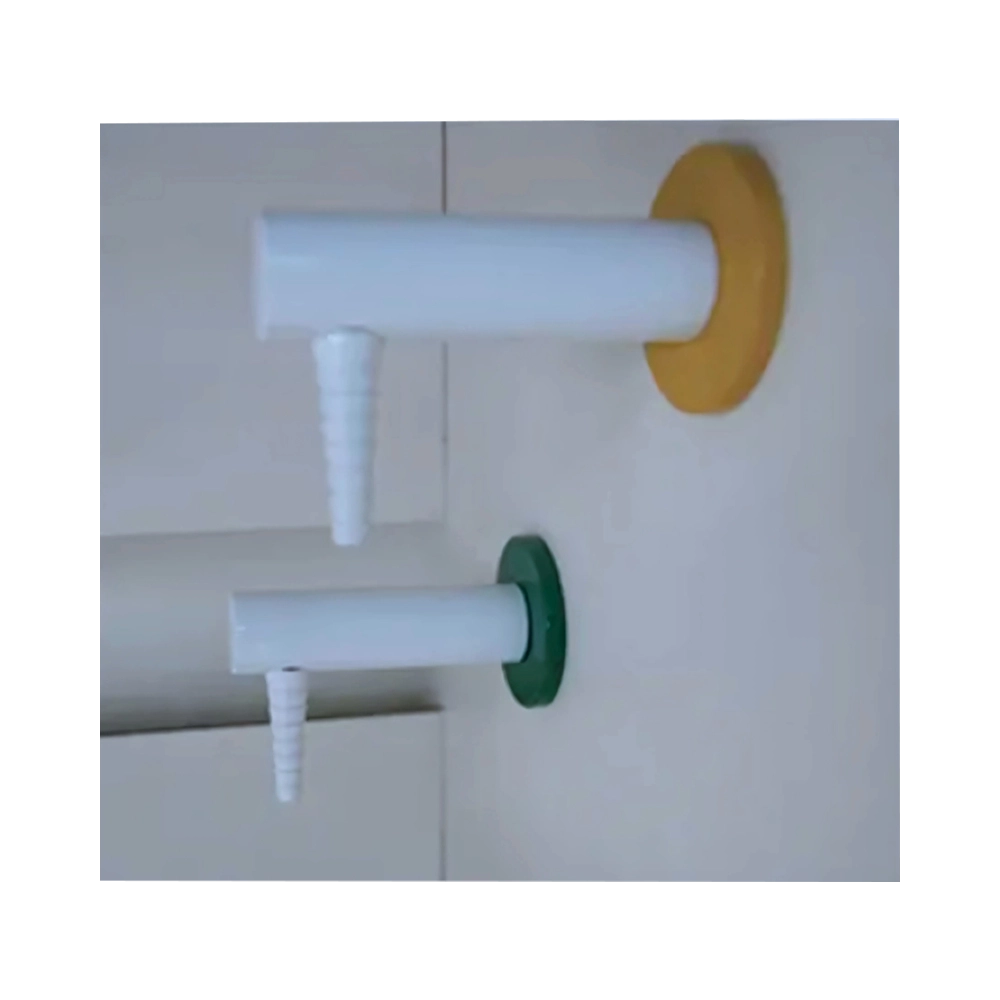

LFHC-18	Gas Tap	1
LFHC-22	LED Lamp	2 (16 W)
LFHC-31	Water Remote Control	1

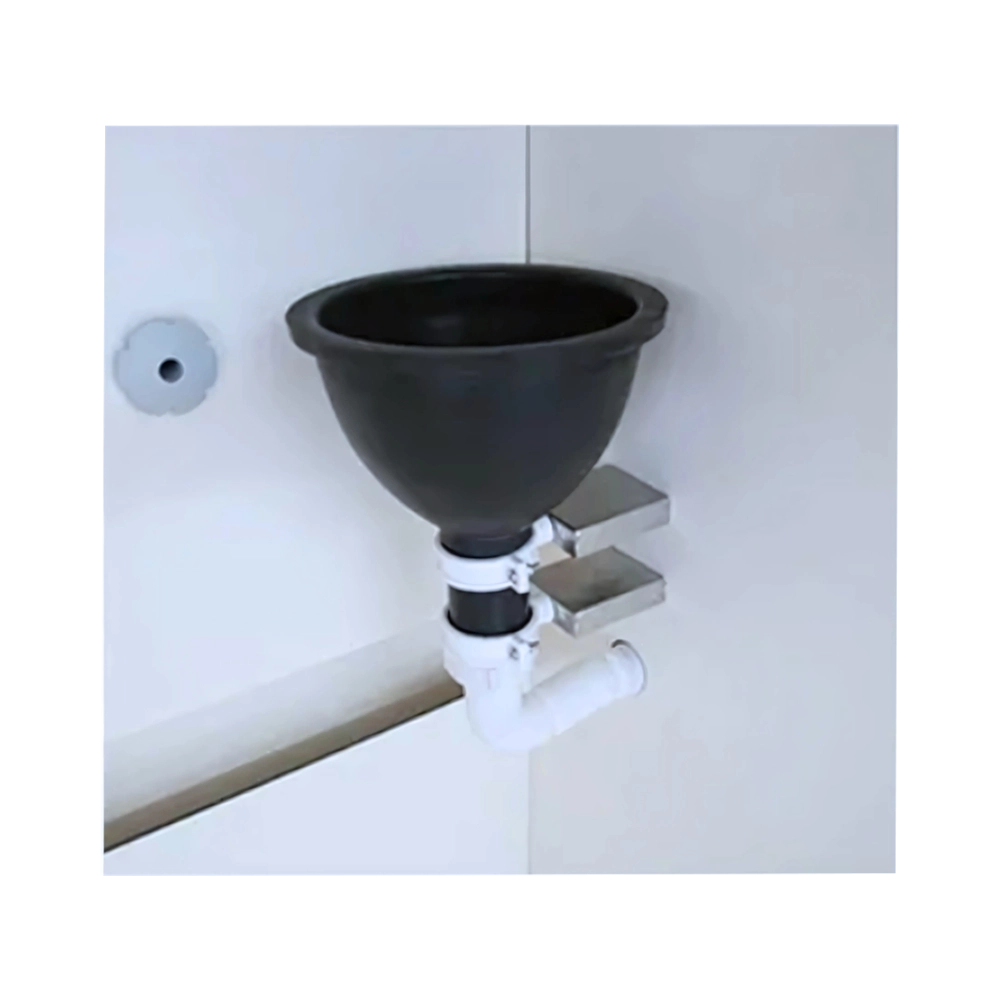

LFHC-32	Water Sink (PP Cup sink)	1
LFHC-33	Water Tap	1
LFHC-34	Water proof socket	4 (≤ 500 W)

Applications

It is used to protect lab samples and equipment from contamination. Commonly used in medical laboratories, medical industrial services, and food processing plants.
