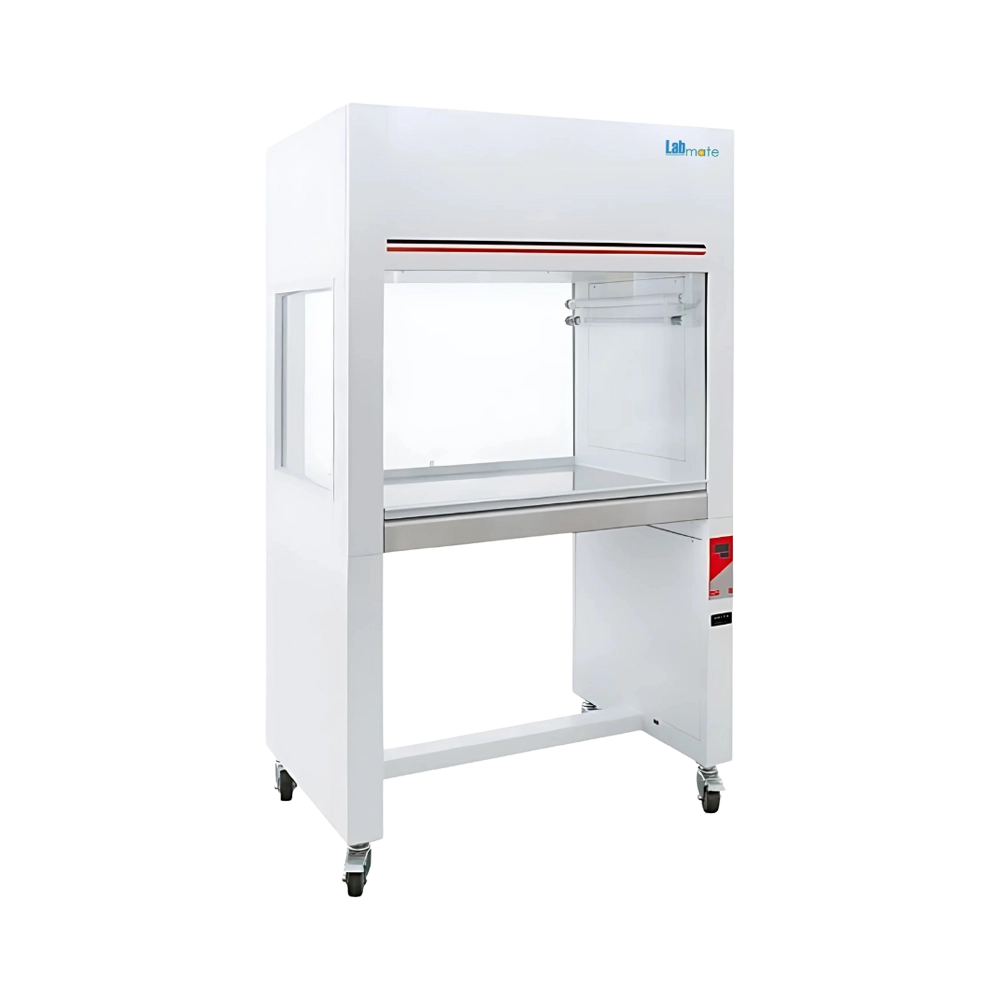

Vertical Laminar Flow Cabinet LMLV-D105 incorporates two working sides. Its low-noise centrifugal fan maintain quiet airflow system. Its UV light and lamp are independently controlled, allowing flexible workspace illumination. Its cold-rolled steel structure with anti-static powder coating and stainless steel worktable, offers durability. Our Vertical Laminar Flow Cabinet suits drug formulation, tissue culture, lens assembly, and food processing.
Specifications
| Working Sides | 2 |
| Operator Capacity per Side | 1 |
| Cleanliness Class | 100 |
| Wind Speed | 0.3 to 0.6 m/s |
| Noise | Less than or equal to 67 dB |
| Vibration Half Peak Value | Less than or equal to 5 µm |
| Illuminance | Greater than or equal to 300 Lux |
| Number of HEPA | 1 |
| Sterilization Timing Range | 0 to 999 min |
| Lamp Power | 20 W |
| UV Light | 20 W |
| Power Consumption | 0.15 kW |
| Power Supply | 220 V, 50/60 Hz |
| Internal Dimension | 830×650×520mm |
| External Dimension | 990×700×1650 mm |
| Net Weight | 145 kg |
| Gross Weight | 167 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Vertical Laminar Flow Cabinet LMLV-D105 | $ 3625 | Each of 1 |
Features
LCD display
Touch-controlled switch
Six-step speed adjustment
High-efficiency HEPA filter
Medium-efficiency pre-filter
Quasi-closed table
Applications
Vertical Laminar Flow Cabinet LMLV-D105 is ideal for drug formulation, tissue culture research, to maintain sterility of medical equipment and implant devices, to avoid impurities on sensitive electronics and lens, for small-scale food processing and packaging.
Similar Products
$ 3537.5 / Each of 1
$ 3275 / Pack of 1
$ 3875 / Each of 1
$ 2487.5 / Each of 1
$ 2925 / Pack of 1
$ 3775 / Each of 1
$ 3500 / Each of 1
$ 5000 / Each of 1
$ 3187.5 / Pack of 1
$ 2312.5 / Pack of 1
$ 3775 / Pack of 1
$ 2662.5 / Pack of 1
$ 4000 / Each of 1
$ 2350 / Pack of 1
$ 3437.5 / Pack of 1
Frequently Asked Questions
1 What is a Vertical Laminar Flow Cabinet?
A Vertical Laminar Flow Cabinet is a clean air workstation designed to provide a sterile environment by directing filtered air in a vertical, unidirectional flow to protect samples from contamination.
2 How does Vertical Laminar Flow Cabinet work?
It works by drawing air through a HEPA filter and directing the clean, filtered air vertically over the work surface to maintain a sterile workspace.
3 Can Vertical Laminar Flow Cabinet be used in pharmaceutical compounding?
It is commonly used in pharmaceutical compounding to provide a sterile environment for mixing, filling, and packaging non-hazardous drugs.
4 Is Vertical Laminar Flow Cabinet suitable for tissue culture work?
It is ideal for tissue culture work as it minimizes contamination by directing filtered air vertically over cultures, protecting them from airborne particulates.
5 How is Vertical Laminar Flow Cabinet used in microbiology laboratories?
In microbiology labs, it is used to safely handle and transfer microbial cultures by creating a sterile workspace that prevents contamination from external sources.
6 Can Vertical Laminar Flow Cabinet be used in food quality testing labs?
It is used in food quality testing labs to ensure that samples are tested in a contamination-free environment, particularly during microbial testing.
7 Is Vertical Laminar Flow Cabinet suitable for working with sterile instruments in surgery prep rooms?
It is used in surgery prep rooms to keep surgical instruments sterile while they are being handled or packaged.
8 Is Vertical Laminar Flow Cabinet useful in herbal medicine or natural product research?
It is useful in herbal and natural product research to ensure that plant extracts and organic compounds are prepared and tested under clean conditions.
9 How is Vertical Laminar Flow Cabinet used in cell line development?
It is used in cell line development to create a contamination-free zone for handling cells, reagents, and culture media during cloning, transfection, or expansion.
10 Can Vertical Laminar Flow Cabinet be used in forensic laboratories?
It is used in forensic laboratories to process biological evidence like hair, blood, or DNA in a sterile setting to prevent cross-contamination.
