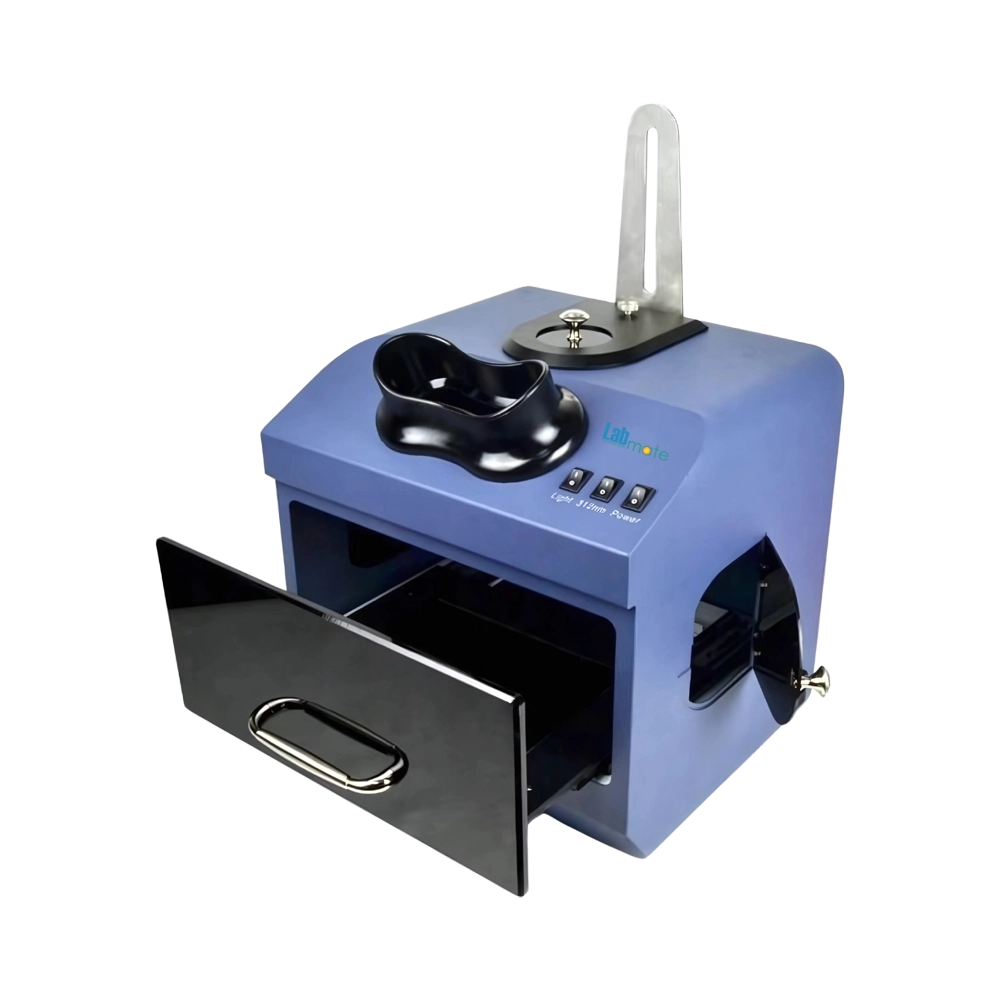

UV Analyzer LMUVA-A100 is equipped with 302 nm, 254 nm and 365nm wavelength options. Its fully enclosed build offer safety from high-intensity UV exposure. Its metal black-box construction eliminates the need for darkroom. It offers simple operation while ensuring minimal sample damage. Our UV Analyzer LMUVA-A100 is ideal for genetic engineering, molecular genetics, and pharmaceutical drug research.
Specifications
| Standard Transmission Wavelength | 302nm |
| Optional Transmission Wavelength | 254nm, 365nm |
| Camera Lens Aperture | 54 mm |
| Power Consumption | 8W × 6 |
| Power Supply | AC 220V, 50Hz |
| Fuse | 250V, 3A |
| Observation Window Size | 140 × 60 mm |
| Transmission Filter Size | 200 × 150 mm |
| Dimensions | 350 × 315 × 520 mm |
| Net Weight | 13 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| UV Analyzer LMUVA-A100 | $ 2300 | Each of 1 |
Features
Drawer-Style Sample Table
Left And Right Viewing Doors
Digital Camera Integration
Multi-Spectrum Selection
Applications
UV Analyzer LMUVA-A100 is ideal for DNA/RNA gel analysis, protein detection, fluorescence imaging, forensic analysis, and pharmaceutical research.
Frequently Asked Questions
1 What is a UV Analyzer?
A UV Analyzer is a laboratory instrument used to measure the concentration of substances, identify components and analyze various materials by detecting their interaction with Ultra-Violet (UV) light.
2 How does a UV Analyzer work?
It works by detecting the UV radiation emitted or absorbed by the sample thereby determining its concentration and molecular structure.
3 Is UV Analyzer utilized in water treatment process?
It is used to monitor the intensity of UV lamps in disinfection system to ensure effective water treatment.
4 What is the difference between a UV Analyzer and a Spectrophotometer?
UV Analyzer measures UV radiation in a specific context such as water treatment whereas Spectrophotometer analyzes light absorbance across a broad range of wavelengths.
5 Is UV Analyzer used in biological contamination detection?
It is effective at destroying pathogens like bacteria and viruses.
6 What kind of maintenance does the UV Analyzer require?
Regular maintenance includes cleaning of optical components & proper calibration of the apparatus to ensure accuracy of readings over time.
