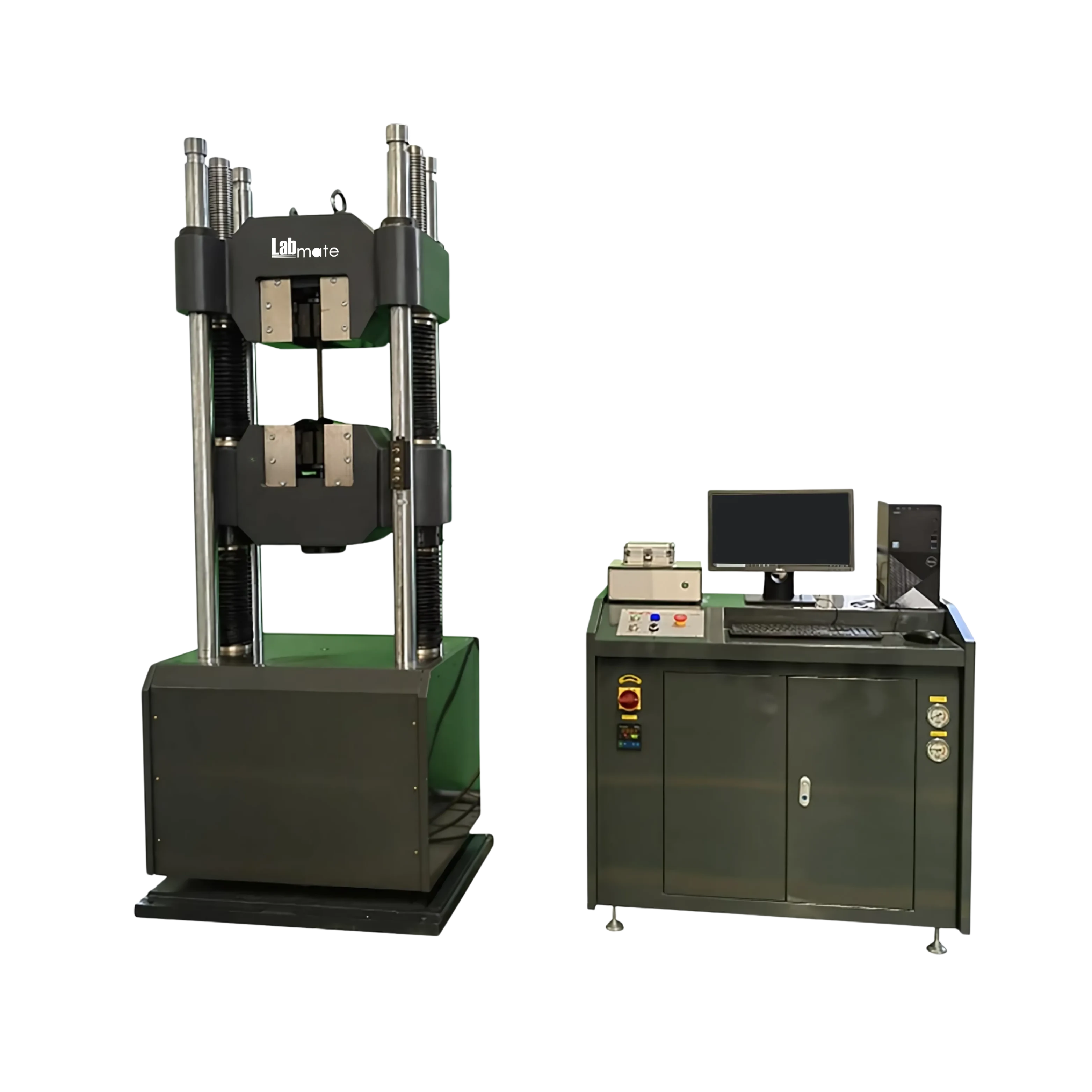

Universal Testing Machine LMUTM-A101

Name: Universal Testing Machine LMUTM-A101
Brand: Labmate
SKU: LMUTM-A101
Rating: 4.8 (485 reviews)

Universal Testing Machine LMUTM-A101 offers a test force of 500 kN, enabling the testing of both metal and non-metal materials. It is designed with four columns and two screws to ensure uniform load distribution and structural integrity. Our testing machine operates with a stress rate ranging from 1 to 60 MPa/s, ensuring accurate and reliable results. It features closed-loop control software, which determines key measurements such as Rm, ReH/ReL, Fm, Rp0.2, A%, Agt, E, etc.

Catalog Send Mail Whatsapp

Specifications

Maximum Test Force	500 kN
Measurement Accuracy	1% to 100%
Testing Force Accuracy	±0.5%
Stress Rate Range	1 to 60MPa/S
Test Strain Rate Range	0.00025/S to 0.0025/S
Deformation Measurement Precision	±0.5%
Displacement Measurement Precision	±1%
Displacement Rate Range	0.5 to 100mm/min
Tensile Space	850mm
Compression Space	750mm
Clamping Diameter of Rebar	8 to 26 mm
Clip-On Extensometer	Gauge length: 50mm Maximum extension: 25mm
Diameter Of Upper and Lower Plate	200 mm
Piston Stroke	250mm
Standards	ISO15630, ISO6892, ASTM A615, ASTM E8, BS4449 and other
Power	3-phase, 380V, 50 Hz
Host Machine Dimension	920 × 650 × 2300 mm
Power Pack Dimension	1100 × 640 × 1000 mm
Power Pack Weight	200 kg
Host Machine Weight	3000 kg

Pricing

Product	Price	Unit	Action
Universal Testing Machine LMUTM-A101	$ 34500	Pack of 1

Features

High-accuracy load cell
Equipped with a half-opened tensile jaw seat
Clearance sealing of oil cylinder
Overload protection
Supports data storage
Complies with various standards

Standard Accessories

Host Machine

Power Pack

ATOS Servo Valve

Gear Pump

High-Precision Load Cell

High Precision Photoelectric Encoder

DELL Computer, LCD Monitor

Maxtest Testing Software, Servo Control Box

Testing Fixture for Tensile, And Compression Tests Clip-On Extensometer

Optional Accessories

Tensile jaw for round specimen Φ8 to Φ13mm

Tensile jaw for round specimen Φ13 to Φ26mm

Tensile jaw for round specimen Φ26 to Φ40mm

Tensile jaw for flat specimen 0 to 15mm

Tensile jaw for flat specimen 15 to 30mm

Three-point bend test fixture

Full enclosed protect cover (aluminium alloy frame + PC board)

Applications

Universal Testing Machine is ideal for material testing, quality control, research and development, automotive and aerospace, medical devices etc.

Universal testing machine LMUTM-A100

Maximum force: 100 KN (10 T)
Load accuracy: 0.5 % F.S
Force reading units: kgf, lbf, N, K N, T
Motor: AC Servo motor with variable speed drive system, high-precision mechanical ball screw rod
Stretching stroke: 600 mm

$ 11012.5 / Pack of 1

1 What is a Universal Testing Machine?

A Universal Testing Machine is an apparatus designed to evaluate mechanical properties such as strength, durability and flexibility of materials.

2 How does a Universal Testing Machine work?

It works by applying a controlled force to a sample material while measuring its response to stress and strain.

3 What is the difference between a Universal Testing Machine & a Mechanical Testing Machine?

Universal Testing Machine is used to test a variety of mechanical properties of materials whereas Mechanical Testing Machine is designed for specific tests like hardness, impact, or fatigue testing.

4 What types of tests can be executed using Universal Testing Machine?

It can perform wide range of mechanical tests including tensile test, compression test, flexural test, shear test and puncture test.

5 What materials can be tested by Universal Testing Machine?

It can test wide variety of materials such as polymers, ceramics, metals, composites and biological materials.

6 What kind of maintenance does the Universal Testing Machine require?

Regular maintenance includes cleaning of apparatus, lubrication of moving parts, checking for wear and tear and proper calibration of the system.
