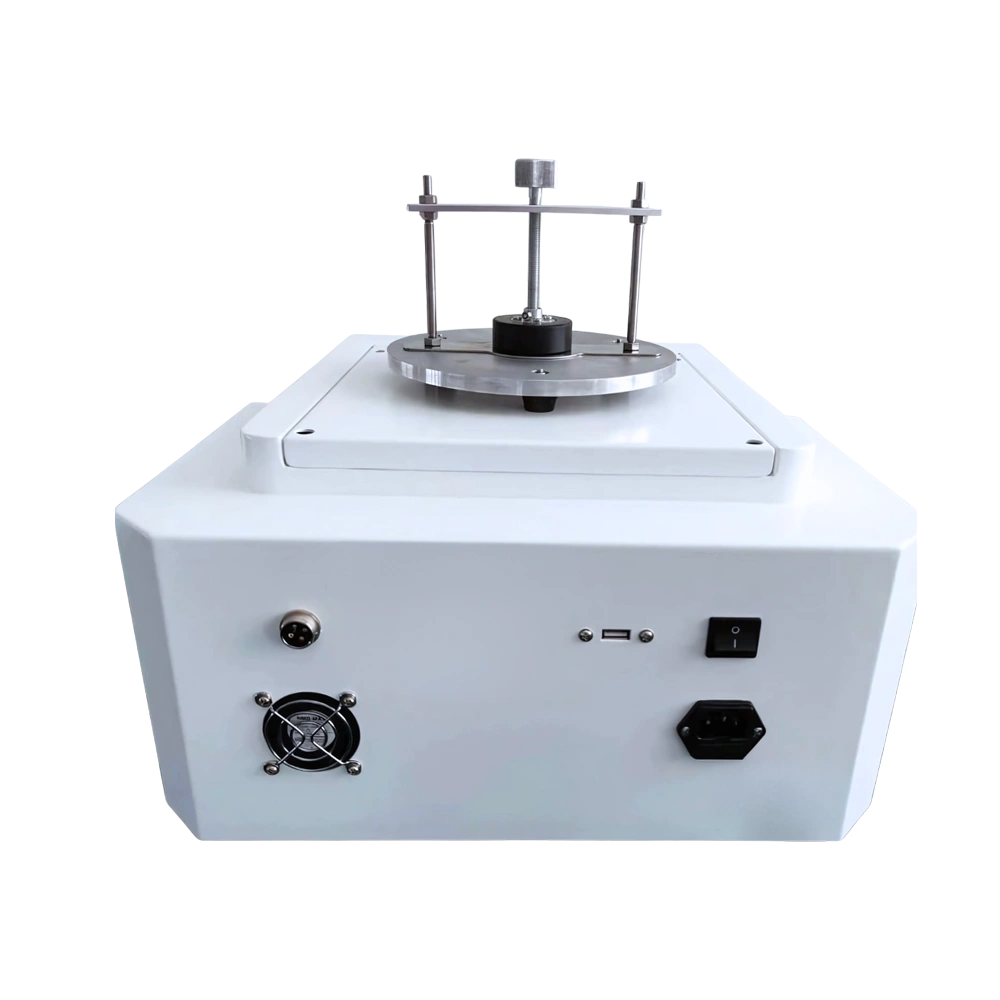

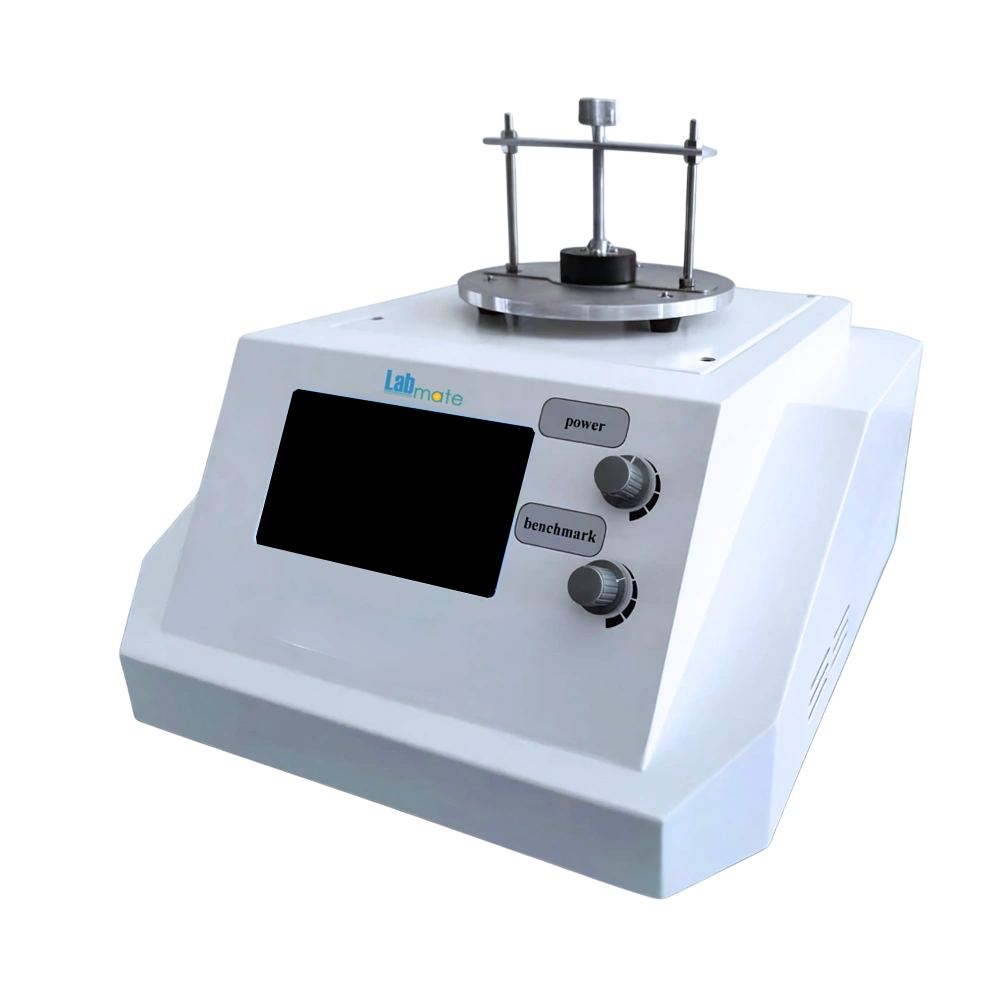

Thermal Conductivity Tester LMTCT-A100 is designed with a transient plane heat source with a testing range from 0.005 to 300W/mK. It operates at a maximum temperature of up to 130°C, measuring various material's thermal resistance and diffusivity. Our tester features a time range of 5 to 160 seconds and provides accurate results. It is integrated with an LCD display for easy operation and real-time monitoring of parameters.
Specifications
| Measure Method | Transient Plane Heat Source, Unsteady Status |
| Test Range | 0.005 to 300W/(mK) |
| Measurement Physical Properties | Direct access the thermal conductivity and thermal diffusivity |
| Test Object | Solid, liquid, powder, paste, colloid, granule |
| Sample Temperature Range | Room temperature to 130℃ |
| Probe Diameter | 15mm/7.5mm |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Measuring Time | 5 to 160 seconds |
| Power Consumption | 500w |
| Power Supply | AC 220V |
| Dimension | 62 × 53 × 58cm |
| Weight | 28 kg |
| Gross Weight | 55 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Thermal Conductivity Tester LMTCT-A100 | $ 13812.5 | Pack of 1 |
Features
Double helix structured probe
Utilizes ARM microprocessor
Suitable for a wide range of materials
Automated data processing
Applications
Thermal Conductivity Tester is used for analyzing the thermal properties of various materials. It is widely utilized in material research, quality control, construction materials testing, energy efficiency studies, and the electronics industry.
Frequently Asked Questions
1 What is a Thermal Conductivity Tester?
A Thermal Conductivity Tester is an apparatus designed to measure the ability of a material to conduct heat.
2 How does Thermal Conductivity Tester work?
It works by measuring the rate of heat transfer through a material by analyzing the temperature gradient in response to a controlled heat input.
3 What materials can be tested using Thermal Conductivity Tester?
It can measure a wide variety of materials such as metals, ceramics, polymers, composites, foams and liquids.
4 Can Thermal Conductivity Tester be used for insulation materials?
It is used to test the effectiveness of insulation materials.
5 What factors affect Thermal Conductivity Tester measurements?
Sample size, temperature, humidity and the homogeneity of material impact the accuracy of Thermal Conductivity Tester.
6 Can Thermal Conductivity Tester be used for heat transfer experiments?
It is used in heat transfer experiments to study flow of heat through different materials.
7 How does temperature change affect Thermal Conductivity Tester measurements?
Temperature change affects the structure of material and its ability to conduct heat.
8 Can Thermal Conductivity Tester be used for research?
It is widely used in research for material science, engineering and thermodynamics in order to understand the behavior of materials under different thermal conditions.
9 Can Thermal Conductivity Tester be used in an industrial setting?
It is commonly used in industrial environments such as manufacturing, construction and materials testing labs.
10 Can Thermal Conductivity Tester measurement help with designing heat exchangers?
Thermal conductivity of material is crucial for designing heat exchangers, as material with high conductivity improves heat transfer efficiency.
