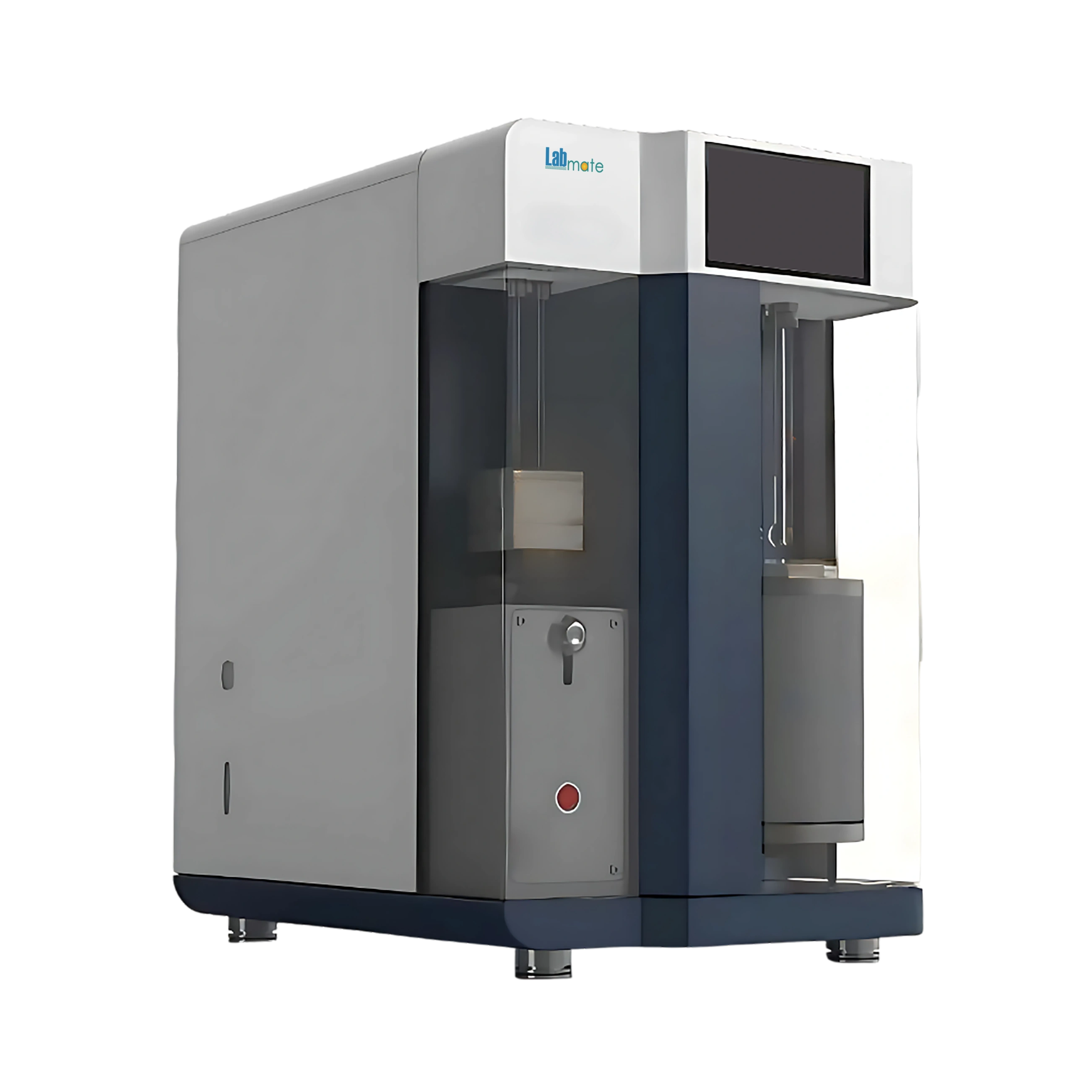

Automatic Surface Area Analyzer LMSAA-103 measures surface area from 0.0005 m²/g with pore size analysis ranging from 0.35 nm to 500 nm. It features advanced gas adsorption technology and ensures rapid sample analysis. Equipped with high-sensitivity detector that delivers consistent and reliable results. It supports multiple analysis modes for enhanced flexibility. Our Analyzer is ideal for research, material science, and industrial quality control.
Specifications
| Test Range | 0.0005 m²/g to no upper limit (surface area), 2 nm to 500 nm (mesopore & macropore), 0.35 nm to 2 nm (micropore) |
| Surface Area Repeatability | Less than or equal to ±1 percent |
| Micropore Accuracy | Less than or equal to 0.02nm |
| Analysis Principle | BET surface measurement, Langmuir surface, BJH pore size distribution, DR micropore analysis, HK, MP, and t-plot methods |
| Operating Temperature Range | 5 to 35℃ |
| Operating Humidity | Less than or equal 85% |
| Power Supply | 220V, 50Hz/60Hz |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Automatic Surface Area Analyzer LMSAA-103 | $ 33337.5 | Each of 1 |
Features
User-friendly interface
Durable and robust build
Static Volume Method
Real-time data processing
Standard Accessories
Accessory | Quantity | Unit |
Two-stage high performance vacuum pump | 1 | Piece |
Liquid nitrogen Dewar cup | 1 | Piece |
PS static degassing furnace | 2 | Piece |
3L Dewar lid | 1 | Piece |
Hanging lid | 1 | Piece |
Liquid nitrogen level measuring tape | 1 | Piece |
Vacuum pump bellows | 1 | Piece |
Clamp with steel ring | 2 | Piece |
Stainless steel pipe | 2 | Piece |
Serial data cable | 1 | Piece |
Serial data extension cable | 1 | Piece |
Instrument power cable | 1 | Piece |
Wiring board | 1 | Piece |
Mesoporous standard sample | 1 | Piece |
Magnetic hook | 1 | Piece |
Saturated vapor pressure spiral P0 tube | 1 | Piece |
Serial port card | 1 | Piece |
Protective glasses | 1 | Piece |
Bester spherical sample tube | 10 | Piece |
Spherical sample tube filling rod | 5 | Piece |
Funnel clamp | 3 | Piece |
Metal loading funnel | 2 | Piece |
External funnel | 1 | Piece |
Glass plug | 5 | Piece |
Degassing level anti Contamination bottle | 2 | Piece |
Cone type sample tube silicone plug | 5 | Piece |
PS sample tube seal ring Ø8 (12.0×7.6×2.2) | 20 | Piece |
Seal ring between Bottle and tube jacket (25×15×5 ) | 2 | Piece |
Seal ring between PS Tube jacket and module(17×13×2) | 5 | Piece |
P0 sealing ring (8.08×2.84×2.6) | 2 | Piece |
Dust filter bag | 2 | Piece |
Tube jacket filter element | 30 | Piece |
Sample tube filter element | 1 | Pack |
Safety tube | 2 | Piece |
Sample weighing bucket | 1 | Piece |
Sample tube cleaning brush | 2 | Piece |
Dewar cup cleaning brush | 1 | Piece |
Sample nozzle grease | 1 | Box |
Cleaning cloth | 20 | Piece |
Stainless steel sample filling spoon | 1 | Piece |
Tee Joint | 3 | Piece |
Sealing components, including four 1/16 tubes with a length of 10cm | 9 | Piece |
Needle for filter cartridge replacement | 3 | Piece |
Simple toolset | 1 | Piece |
Applications
Automatic Surface Area Analyzer LMSAA-103 is employed in material science, pharmaceuticals, and nanotechnology for surface area and pore analysis. It supports research, quality control, and catalyst development in various industries.
Similar Products
$ 43750 / Each of 1
$ 43537.5 / Each of 1
Frequently Asked Questions
1 What is a Surface Area Analyzer?
A Surface Area Analyzer is an apparatus designed to measure the surface area of sample materials.
2 What materials can be analyzed using Surface Area Analyzer?
It is used to analyze a wide range of materials such as powders, granules, activated carbon, nanomaterials and pharmaceuticals.
3 Can Surface Area Analyzer be used for pore size distribution analysis?
It is equipped to measure pore size distribution using techniques like the BJH (Barrett-Joyner-Halenda) method alongside surface area measurements.
4 On what factors does the accuracy of Surface Area Analyzer depend upon?
Its accuracy depends on various factors such as the type of material, gas used for adsorption and sample preparation method.
5 How does Surface Area Analyzer measure micropores and macropores?
Surface Area Analyzer distinguishes between micropores and macropores through specific gas adsorption measurements.
6 Is Surface Area Analyzer affected by environmental factors?
Environmental factors such as temperature, humidity and atmospheric pressure affect the adsorption process and the accuracy of surface area measurements.
7 Can Surface Area Analyzer be used in Quality Control (QC)?
It is commonly used in Quality Control (QC) to ensure consistency and conformity of materials for products like powders, catalysts and pharmaceuticals.
8 Can Surface Area Analyzer provide real-time data during analysis?
It is equipped with real-time data acquisition system that allows to monitor adsorption or desorption in real-time.
9 Can Surface Area Analyzer measure surface area over time?
It is used for time-dependent studies to track changes in surface area over time.
10 Can Surface Area Analyzer be used to analyze carbon-based materials?
It is used in analyzing carbon-based materials such as activated carbon, carbon nanotubes and graphene.
