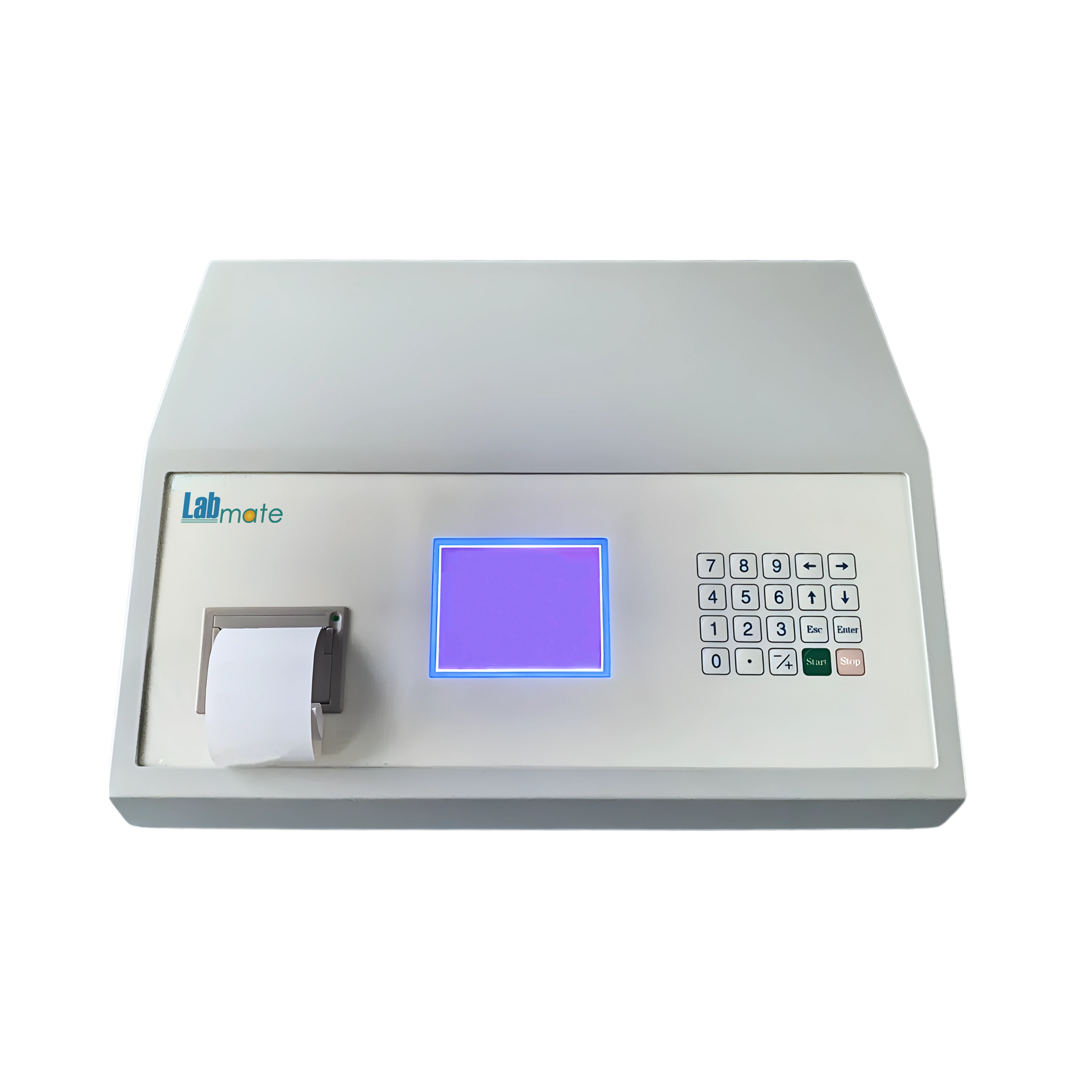

Fluorescence Sulfur Analyzer LMFSA-402 delivers sulfur measurement from 0.0050% to 5% for accurate analysis. It features a low detection limit of 10 ppm, ensuring highly sensitive and accurate sulfur analysis even at trace levels. Built in design supports an oil volume range of 3 ml to 4 ml for efficient and consistent sample analysis Our Fluorescence Sulfur Analyzer supports storage of 9 calibration curves, comprising 5 linear curves and 4 binomial parabolas for precise measurement.
Specifications
| Sulfur Measurement Range | 0.0050% to 5% |
| Detection Limit | 10 ppm |
| Oil Volume | 3ml to 4ml |
| Operating Temperature | 5 to 40°C |
| Relative Humidity | ≤85% (at 30°C) |
| Measurement Time | 60, 120, 240, 300, or 600 secs, adjustable |
| Power Consumption | 30 W |
| Power Supply | AC 220 V ± 20 V, 50 Hz |
| Product Dimension | 468 × 368 × 136 mm |
| Packaging Dimension | 550 × 455 × 220 mm |
| Net Weight | 12 kg |
| Gross Weight | 14 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Fluorescence Sulfur Analyzer LMFSA-402 | $ 10675 | Pack of 1 |
Features
Microcomputer-based design
Auto temperature & pressure correction
Self-diagnostic function
Audible error alarm
Large data storage
Oil leak protection
X-ray radiation safety
Standard Accessories
Name | Quantity |
Three-core power cord | 1 unit |
Sample cups | 100 sets |
Sample cup membrane (6μm Mylar) | 100 sets |
Oil leak prevention kit (2 pieces per set) | 1 set |
Multi-function pressure element (2 pieces per set) | 1 set |
Thermal paper roll (57mm width, 30mm diameter) | 1 roll |
Plastic pipettes (3ml) | 100 pieces |
Applications
Fluorescence Sulfur Analyzer widely used for measuring total sulfur in crude oil, petroleum, diesel, gasoline, kerosene, naphtha, and heavy oil. It is also suitable for coal chemical products, liquid samples, sulfides, and fine powder materials like petroleum coke and carbon-based compounds.
Similar Products
$ 29687.5 / Pack of 1
Frequently Asked Questions
1 What is a Sulfur Analyzer?
A Sulfur Analyzer is an apparatus designed to measure the sulfur content in different materials.
2 How does Sulfur Analyzer work?
It operates by using techniques like combustion or ultraviolet fluorescence that breaks down the sample and detects its sulfur content.
3 What is the role of Sulfur Analyzer in oil and gas industry?
It is used to measure sulfur content in crude oil, refined products and natural gas.
4 What kind of maintenance does Sulfur Analyzer require?
Regular maintenance includes cleaning of sample introduction system, checking for wear and proper calibration.
5 Can Sulfur Analyzer measure sulfur in both solid and liquid samples?
It is engineered to measure sulfur in various forms, including solids and liquids.
6 What is the difference between a Sulfur Analyzer and a Sulfur Detector?
A Sulfur Analyzer measures the exact sulfur content in a sample whereas a Sulfur Detector is focused on detecting the presence or absence of sulfur.
7 Does Sulfur Analyzer help in environmental protection?
It plays a crucial role in monitoring and controlling sulfur emissions from industries thereby helping in ensuring compliance with environmental regulations.
8 What is the role of Sulfur Analyzer in refining process?
It is critical in refining process in order to ensure that refined fuels such as gasoline, diesel and jet fuel meet sulfur content specifications.
9 Is Sulfur Analyzer used in research and development?
It is commonly used in research and development to study sulfur compounds, test new materials and develop environment friendly technologies.
10 Can Sulfur Analyzer be used in industrial process control?
It is integrated into process control systems in industries like oil refining, chemical manufacturing and natural gas processing for real-time sulfur content measurements.
