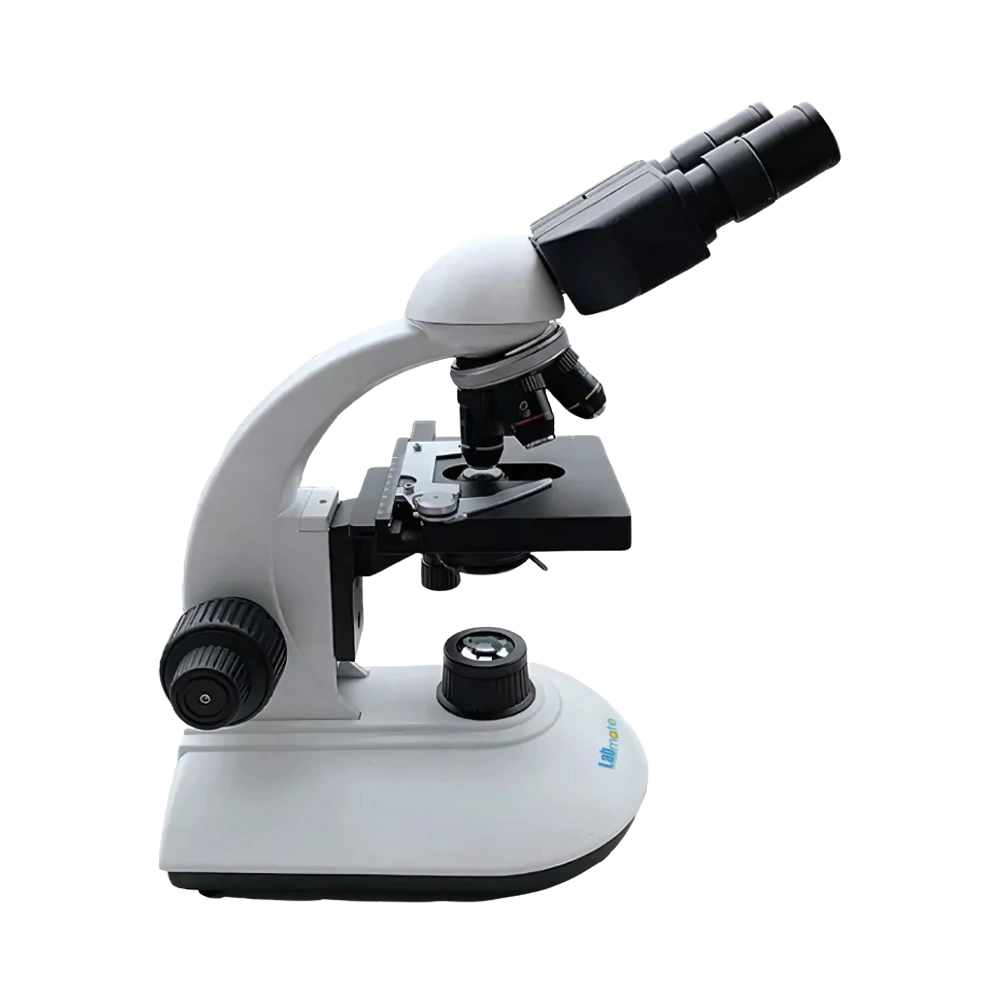

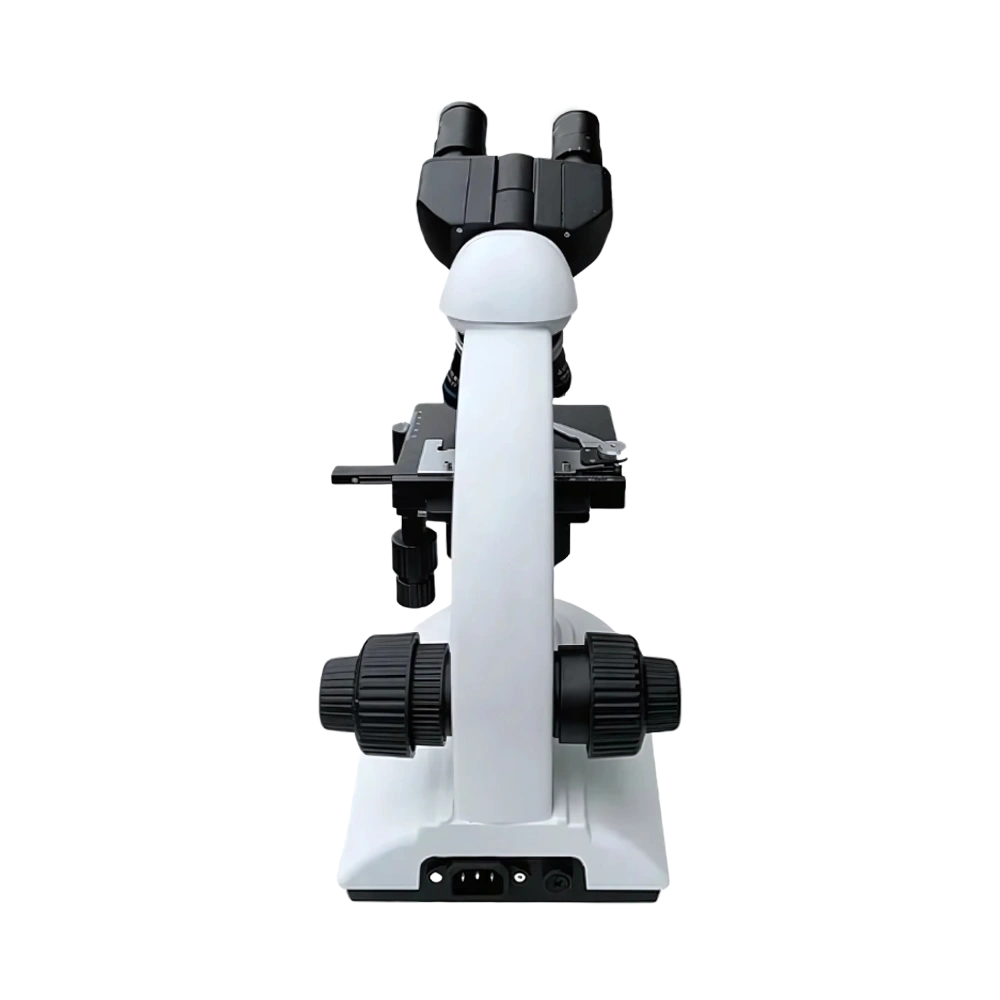

Student Microscope LMSTU-A102 features a binocular head with 360° rotatable design for flexible positioning. Integrated with a quadruple nosepiece (4-hole) for smooth switching between objectives. It features an abbe condenser N.A. 1.25 along with iris diaphragm for refined illumination. Incorporated with coaxial coarse and fine adjustment knobs for effortless focusing. Our Microscope offers adjustable interpupillary distance from 48 to 75 mm for operator comfort.
Specifications
| Magnification Range | 40X to 2000X |
| Eyepiece | WF10X/18mm |
| Achromatic Objectives | 4X (W.D.=18.6mm) / 10X (W.D.=6.5mm) / 40X (W.D.=0.47mm) / 100X (W.D.=0.07mm) |
| Viewing Head | Binocular Head |
| Head Position | 30° inclined, 360° rotatable |
| Interpupillary Distance | 48 to 75 mm |
| Nosepiece | 4 holes (Quadplex) |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) |
| Illumination System | 3W LED |
| Base | External power adapter with data cable |
| Focusing System | Coaxial coarse and fine knobs |
| Focusing Adjustment Range | 22 mm (Scale 2 µm) |
| Mechanical Stage Dimension | 125 × 115 mm |
| Mechanical Stage Adjustment Range | 35 × 75 mm |
| Packaging Dimension | 337 × 242 × 417 mm |
| Net Weight | 5.0kg |
| Gross Weight | 6.5 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Student Microscope LMSTU-A102 | $ 1350 | Each of 1 |
Features
Anti-Fogging Optics
Wide Magnification Range
Immersion Oil Compatibility
LED Lighting System
Mechanical Stage Construction
Optional Accessories
| Model No. | Accessory |

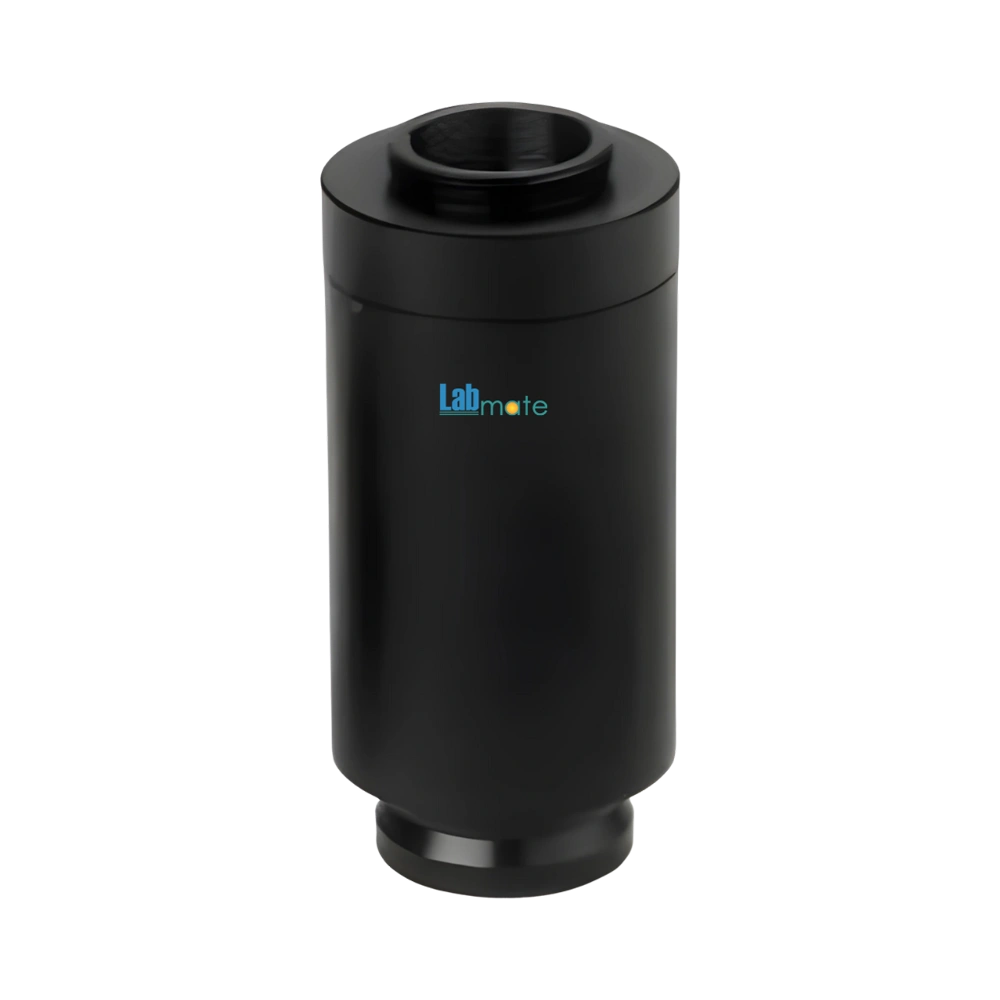

| LMSTU-A102-C1 | 1X C-Mount |

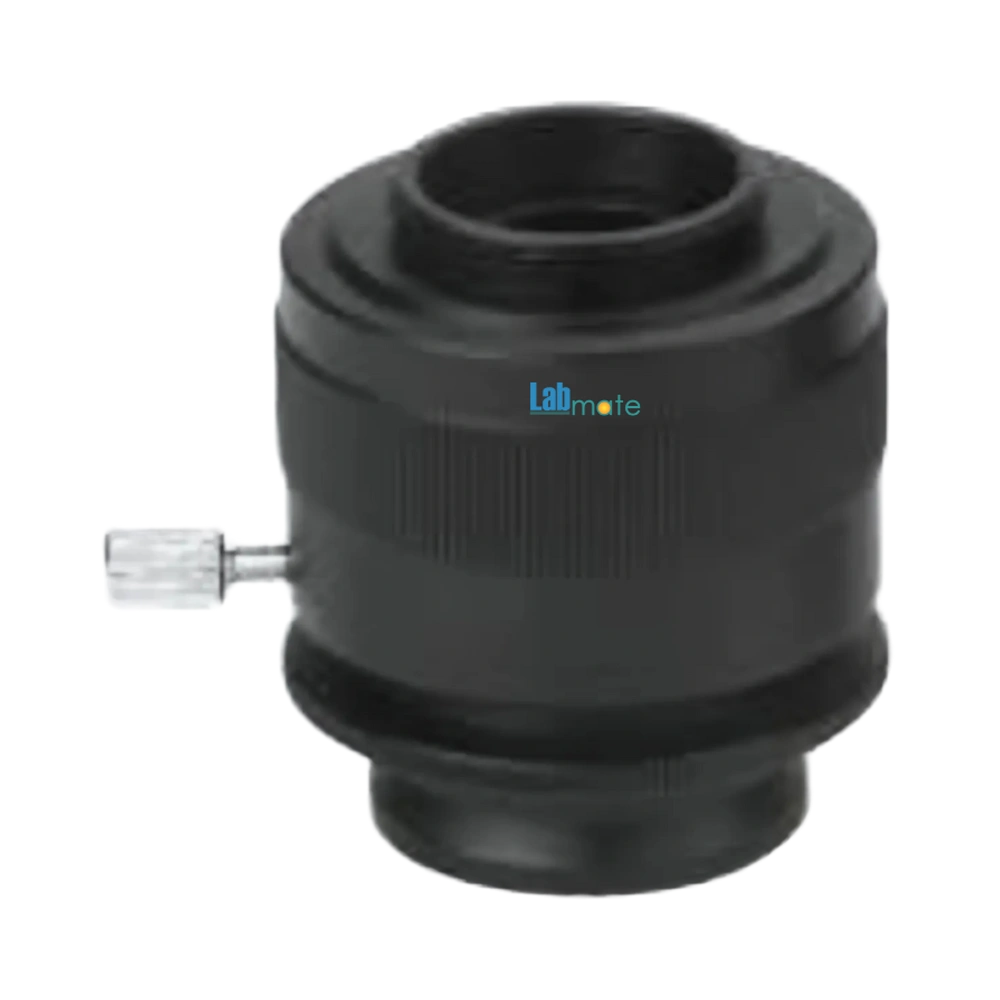

| LMSTU-A102-C2 | 0.5X C-Mount |

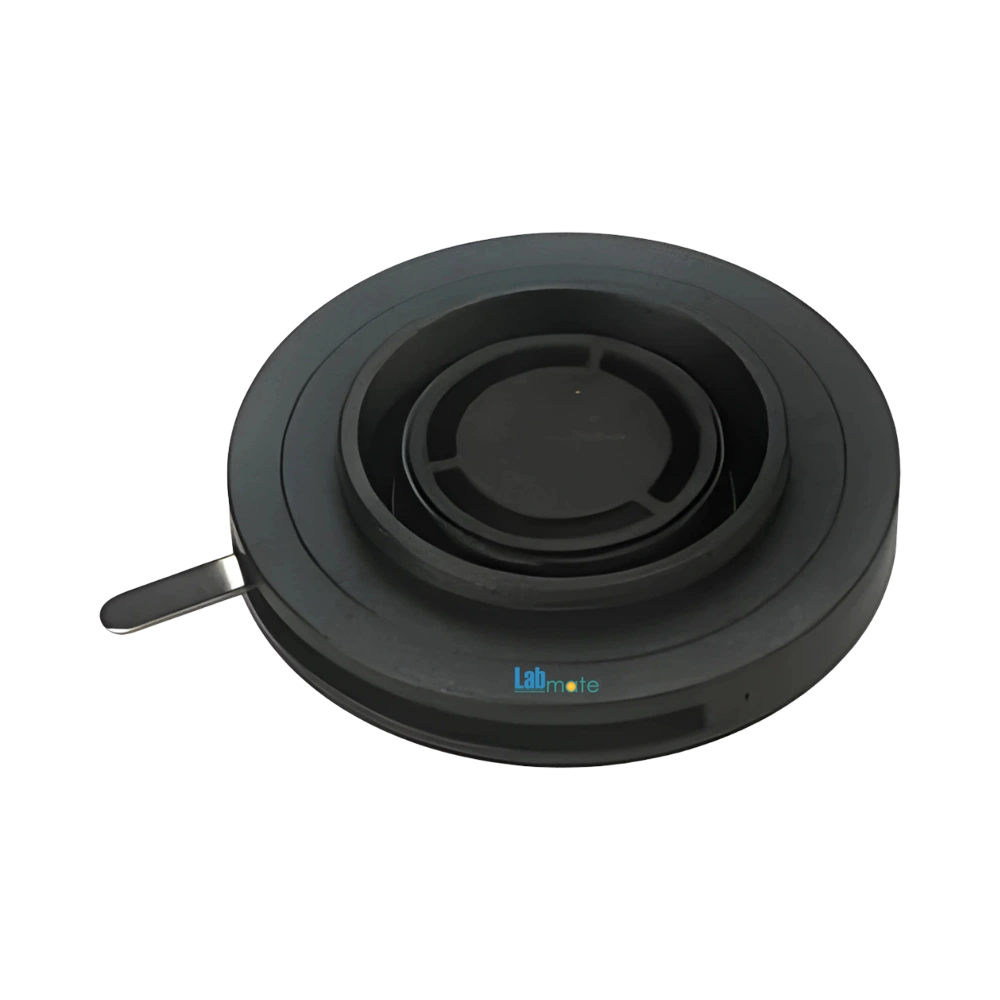

| LMSTU-A102-R1 | Dark Field Ring |

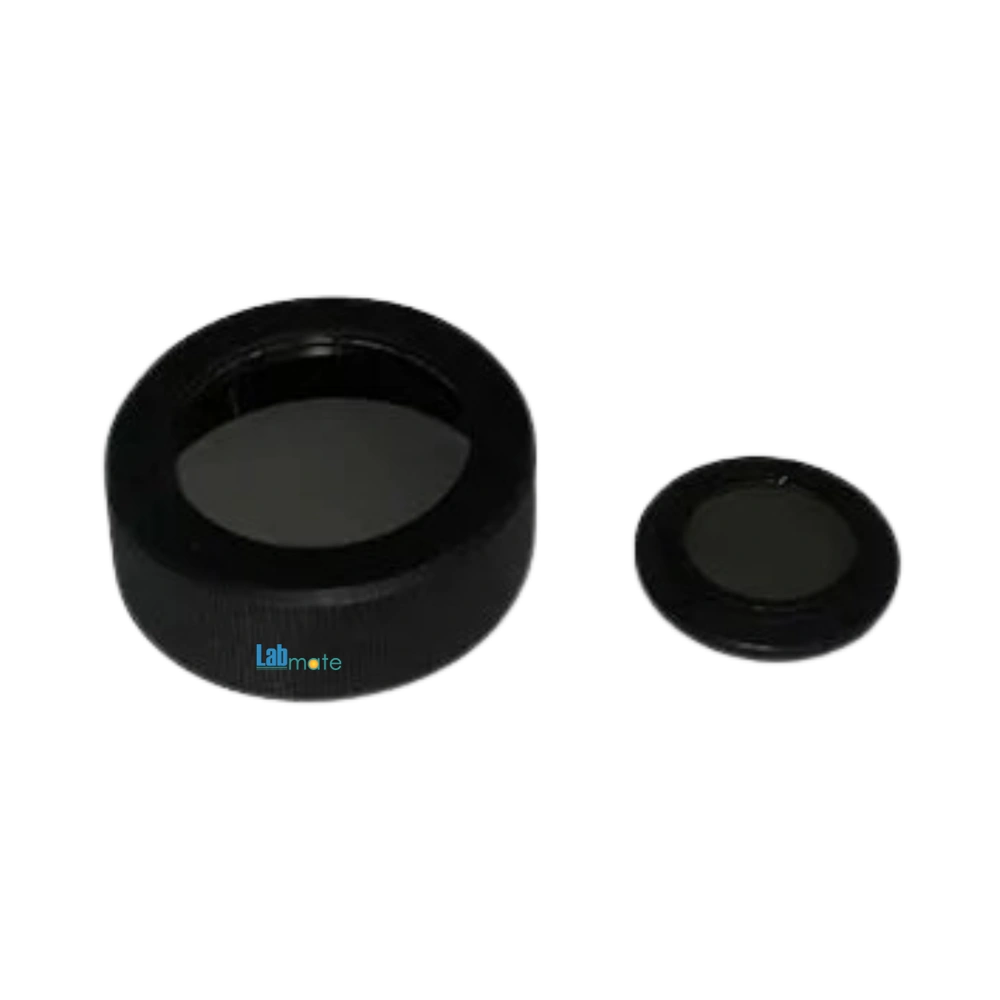

| LMSTU-A102-P1 | Polarizing Unit |

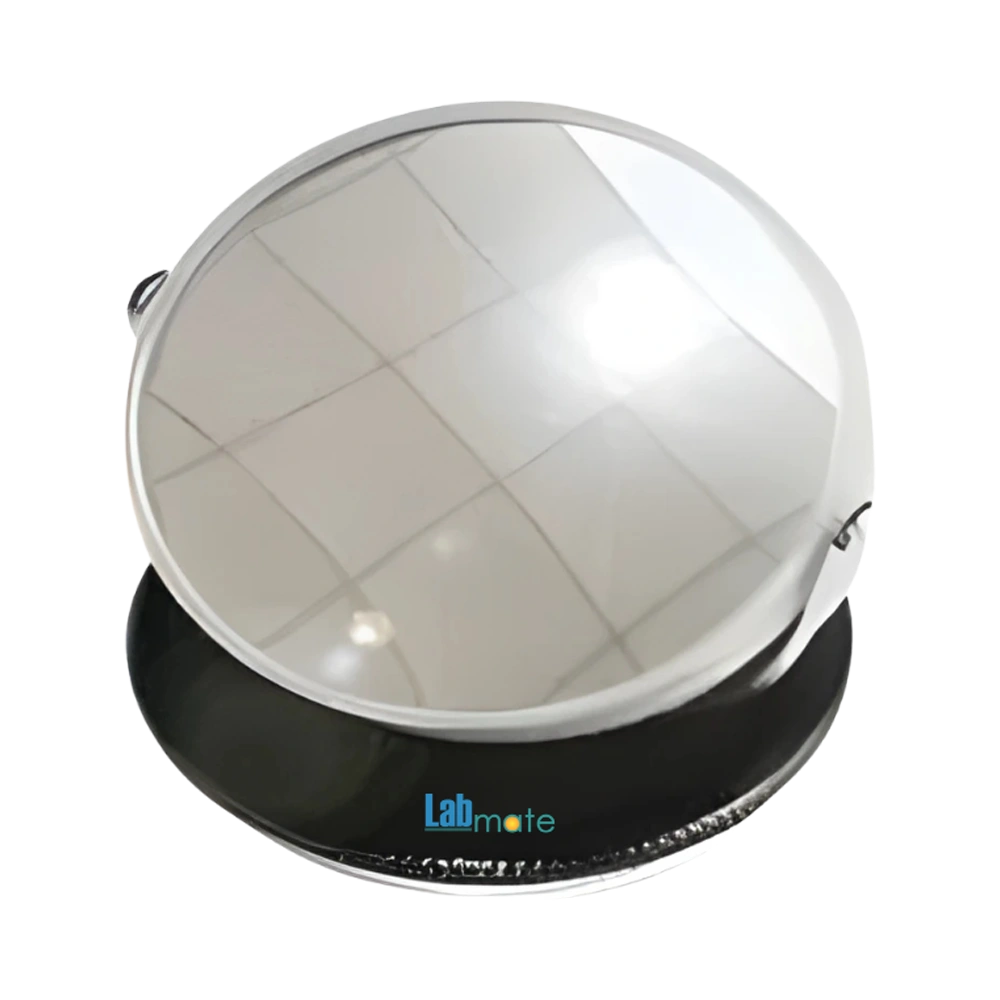

| LMSTU-A102-M1 | Plano-Concave Mirror |
Applications
Student Microscope LMSTU-A102 is suitable for general laboratory studies and experimental work in educational and research institutes.
