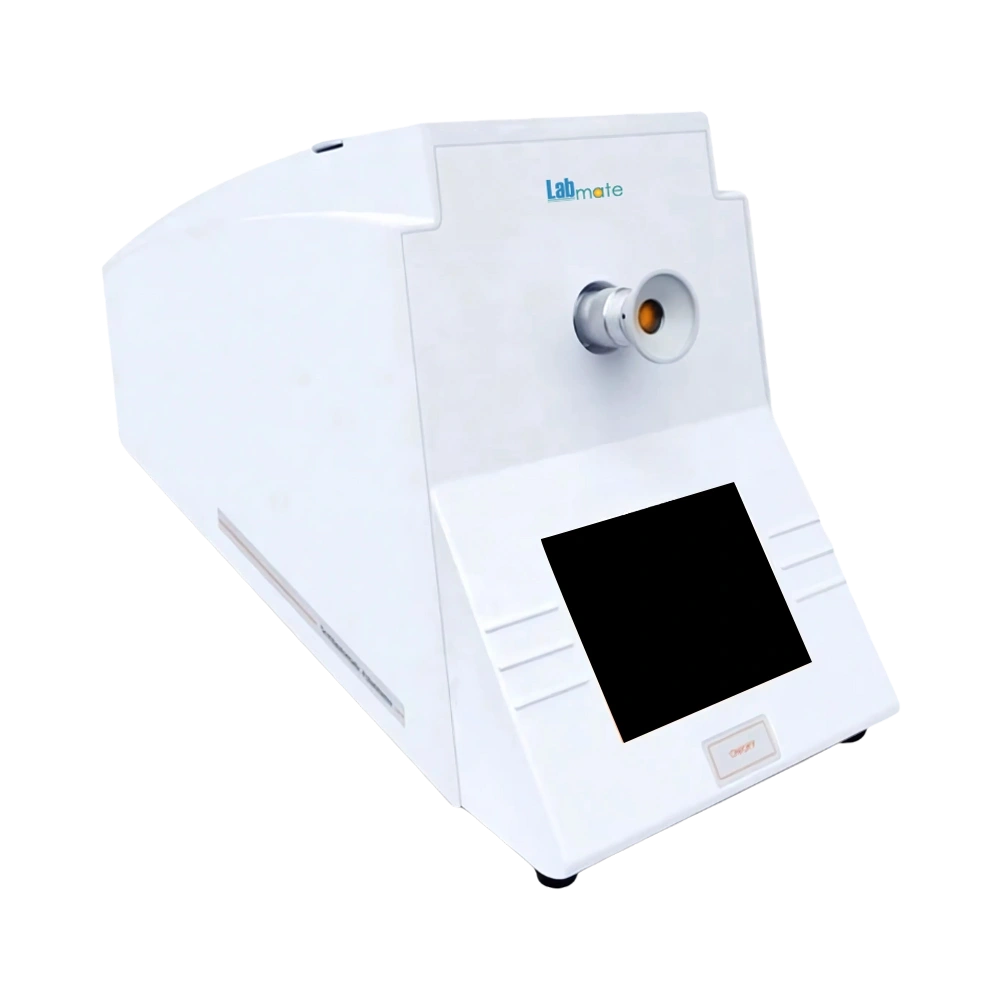

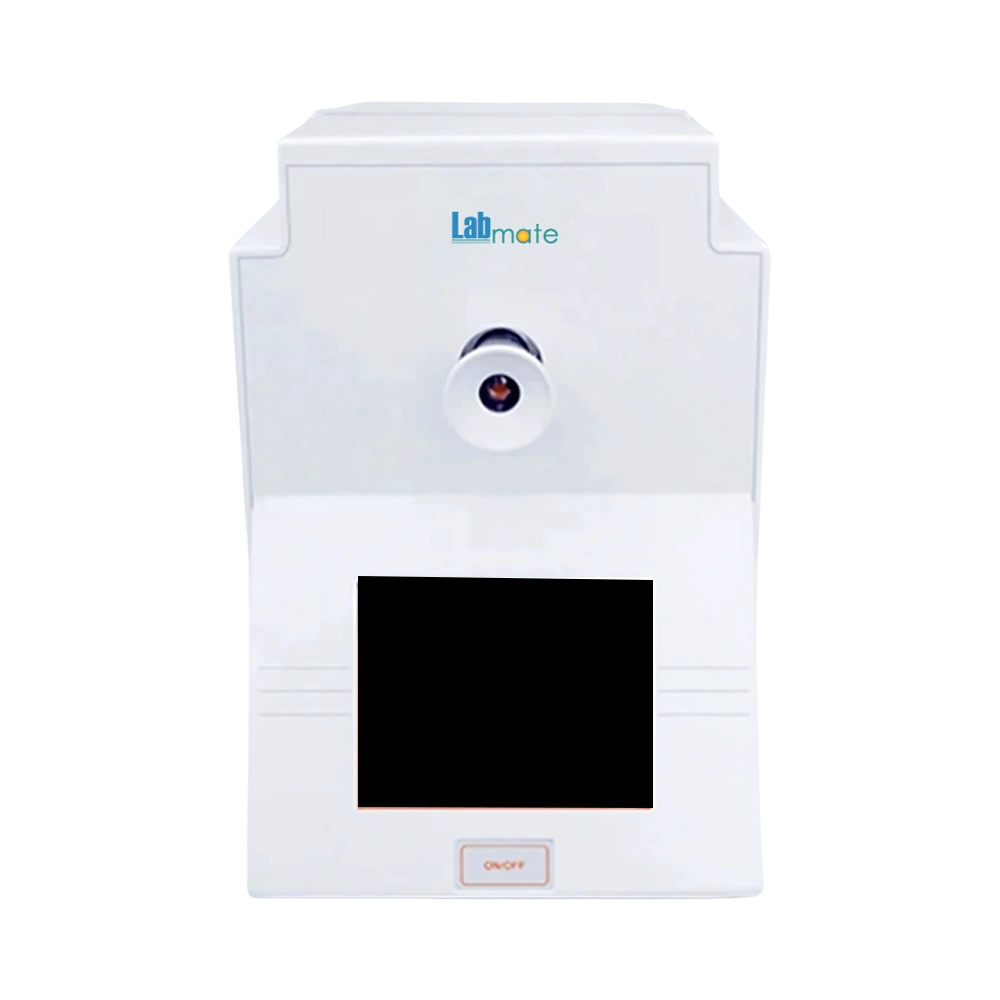

Semi Automatic Polarimeter LMSAP-A101 is designed for measuring the optical rotation of polarized light in optically active substances. Featuring a 5.6-inch TFT touchscreen for user-friendly operation. Operates within a temperature range of 0℃ to 100℃ with automatic temperature compensation for accuracy. Equipped with a temperature sensor that provides real-time monitoring of the sample chamber.
Specifications
| Measurement Mode | Four modes: optical rotation, specific rotation, concentration, and international sugar content |
| Display Screen | 5.6-inch TFT touchscreen |
| Temperature Measurement Range | 0℃ to 100℃ |
| Temperature Measurement Accuracy | ± 0.5℃ |
| Measuring Range | ± 90˚, ± 130˚Z |
| Measuring Accuracy | ± 0.02˚, ± 0.05˚Z |
| Display/Resolution | 0.005˚ |
| Wavelength | 589 nm |
| Light Source | LED ₊ Interference filter |
| Test Tube Length | 50/100/200 mm |
| Data Storage | 100 sets of data storage |
| Interface | USB |
| Power Supply | AC 220 V, 50 Hz |
| Dimension (L × W × H) | 550 × 300 × 220 mm |
| Weight | 7.5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Semi Automatic Polarimeter LMSAP-A101 | $ 3487.5 | Each of 1 |
Features
Utilizes semi-automatic polarimetry for precise measurements
Offers 4 selectable measurement options for versatility
Equipped with long LED life with a 589 nm filter enhances durability
Automatic calculations of non-standard test tube measurements
Stores up to 100 sets of data for convenient record maintenance
Automatic marking for time, date, and sample name for traceability
Involved with multi-language version selection for global usability
Built-in text file provides detailed instructions for instrument use
Applications
Semi Automatic Polarimeter has a vital role in various scientific fields, pharmaceutical industries, and educational institutes to measure the optical rotation of optically active substances.
Selection Guide
When selecting Semi-Automatic Polarimeter LMSAP-A101, it is essential to consider its suitability based on performance, application, and certification aspects outlined in research studies. This instrument is widely used for analyzing optically active substances in the pharmaceutical, food, chemical, and cosmetic industries. It provides four measurement modes: optical rotation, specific rotation, concentration, and international sugar content, making it versatile for a wide range of experiments and quality control processes. With a measurement range of ±90°/±130°Z, high resolution of 0.005°, and an accuracy of ±0.02°/±0.05°Z, it ensures accurate and reliable readings. The device features a 5.6-inch TFT touchscreen, facilitating user-friendly operation and clear data display. Additionally, the model complies with relevant quality and safety standards, which adds to its credibility in regulated lab environments. Customers can confidently select this model when looking for a semi-automatic solution with advanced features and certified accuracy for professional applications.
Frequently Asked Questions
1 What is a Semi Automatic Polarimeter?
A Semi Automatic Polarimeter is an apparatus designed to measure the angle of rotation caused by passing polarized light through an optically active substance, with partial automation for improved accuracy and ease of use.
2 How does a Semi Automatic Polarimeter work?
It works by passing polarized light through a sample tube containing an optically active compound, then detecting the angle of rotation using a partially automated optical sensor and digital readout.
3 Is Semi Automatic Polarimeter suitable for student laboratories?
It is suitable for educational use due to its ease of use, clear digital display, and accurate results, making it ideal for teaching optical rotation principles.
4 Can Semi Automatic Polarimeter be used for sugar analysis?
It is widely used in the sugar industry to determine sucrose content and purity by measuring optical rotation.
5 Can Semi Automatic Polarimeter be used in pharmaceutical quality control?
It is commonly used in pharmaceutical quality control to measure the optical rotation of chiral drug substances and ensure product consistency and compliance with pharmacopeial standards.
6 Is Semi Automatic Polarimeter useful in food and beverage analysis?
It is useful in food and beverage analysis for determining the concentration of optically active compounds such as certain flavoring agents.
7 Can Semi Automatic Polarimeter be used to detect adulteration in products?
It detects adulteration by comparing the optical rotation of a sample against known standards, especially in natural products like honey, oils, and syrups.
8 How is Semi Automatic Polarimeter used in biotech applications?
In biotechnology, it is used to monitor the optical rotation of sugars, amino acids, and proteins during purification and production processes.
9 Can Semi Automatic Polarimeter be used for forensic testing?
It is used in forensic labs to analyze certain optical properties of seized materials, such as suspected adulterated substances or illegal drugs.
10 Is Semi Automatic Polarimeter used in fermentation process monitoring?
It is used in fermentation monitoring to assess the concentration and conversion of sugars during microbial or enzymatic activity.
