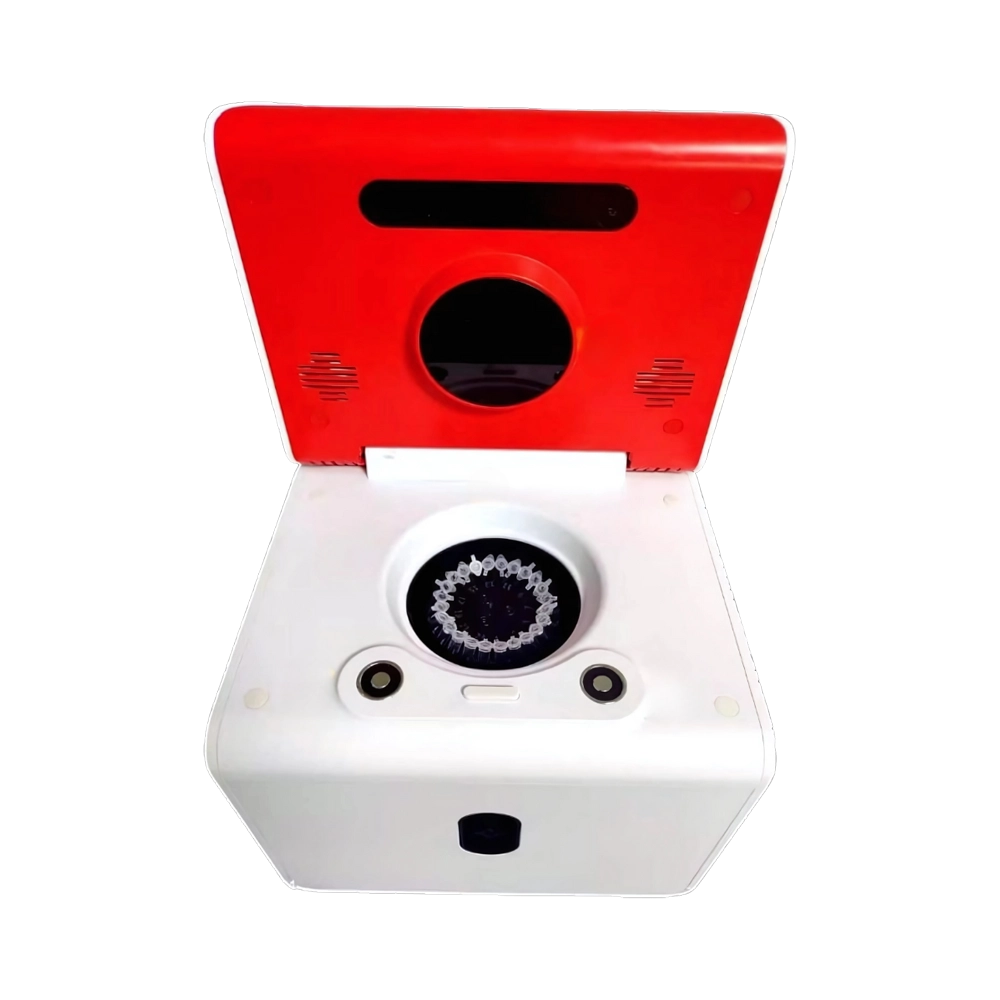

qPCR Machine LMQC-A100S provides sample volumes range from 10 µL to 100 µL for diverse experimental protocols. It handles 24 samples simultaneously with offering high sensitivity to detect single copy of nucleic acid. It achieves a cooling rate of more than 3°C/sec, facilitating rapid temperature changes during cycles. Equipped with multiple fluorescent channels like FAM/SYBR Green, VIC/HEX, ROX, and CY5 for versatile dye detection. Our qPCR Machine allows data export in EXCEL and PDF formats, simplifying result analysis and reporting.
Specifications
| Detection Capacity | Less than or equal to 24 samples |
| PCR Volume Range | 10 to 100 µL |
| Temperature Control Accuracy | ± 0.2℃ |
| Temperature Uniformity | ± 0.25°C |
| Temperature Range | 35 to 99°C |
| Heating Rate | Greater than 4°C/sec |
| Cooling Rate | Greater than 3°C/sec |
| Detection Sensitivity | Greater than or equal to 1 copy |
| Fluorescent Channels | FAM/SYBR Green, VIC/HEX, ROX, CY5 |
| Excitation Light Source | High-power LED |
| Light Source Lifespan | Greater than or equal to 100,000 hrs |
| Excitation Range | 450 to 640nm |
| Detection Range | 500 to 700nm |
| Detection Type | Photodiode |
| Sensitivity | 1.5-fold difference in single reaction |
| Fluorescence Linearity | Greater than or equal to 0.99 |
| Linear Range | 10¹ to 10⁸ copies |
| Sample Linearity | Greater than or equal to 0.98 |
| Repeatability (CV) | Less than or equal to 5% |
| Ct Consistency | SD less than 0.03 across plate |
| Run Time | 35 min |
| Heating Mode | Electromagnetic induction heating |
| Control Mode | Touchscreen and PC control |
| Output Format | EXCEL / PDF |
| Applicable Consumables | Standard PCR tubes and plates |
| Consumables Storage Temperature | 15℃ to 30℃ |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimension (L × W × H) | 235 × 212 × 255 mm |
| Weight | 5kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| QPCR Machine LMQC-A100 | $ 11125 | Each of 1 |
Features
Electromagnetic Induction Heating
Excitation LED Light Source
Photodiode Assessment
Touchscreen and PC Control
Compatible with Standard PCR Tubes and Plates
Low Power Consumption
Applications
qPCR Machine LMQC-A100 is essential for real-time PCR monitoring, enabling clear quantification of nucleic acids and reliable detection of viral or bacterial genetic material in clinical diagnostics.
Frequently Asked Questions
1 What is a qPCR?
A qPCR is an apparatus designed for quantifying DNA or RNA in a sample, allowing researchers to measure gene expression levels or detect the presence of specific genetic material.
2 How is qPCR used in clinical diagnostics?
In clinical diagnostics, it is used to detect and quantify pathogens such as viruses and bacteria.
3 How does qPCR contribute to cancer research?
It contributes to cancer research by quantifying gene expression levels of oncogenes and tumor suppressor genes, enabling qPCR to help identify biomarkers and monitor treatment response.
4 Can qPCR be used for detecting viral load in patients?
It is widely used for detecting and quantifying viral load, making qPCR essential for monitoring disease progression and treatment efficacy in conditions like HIV and hepatitis.
5 How is qPCR applied in agricultural biotechnology?
In agricultural biotechnology, it is applied to detect genetically modified organisms (GMOs), monitor plant pathogens, and assess gene expression in crops.
6 What role does qPCR play in environmental testing?
It plays a significant role in environmental testing by detecting and quantifying microbial contaminants in water, soil, and air samples.
7 How is qPCR used in food safety testing?
In food safety, it is used to detect foodborne pathogens making it essential for ensuring the microbial safety of food products.
8 Is qPCR suitable for forensic applications?
It is suitable for forensic applications, including quantification of human DNA in crime scene samples, making qPCR useful in DNA profiling and degraded sample analysis.
9 How is qPCR used in microbiome studies?
In microbiome studies, it is used to quantify specific microbial populations, validate next-generation sequencing results, and study microbial dynamics.
10 How is qPCR used in vaccine development?
In vaccine development, it is used to quantify viral RNA or DNA, assess immune gene expression, and verify genetic constructs.
