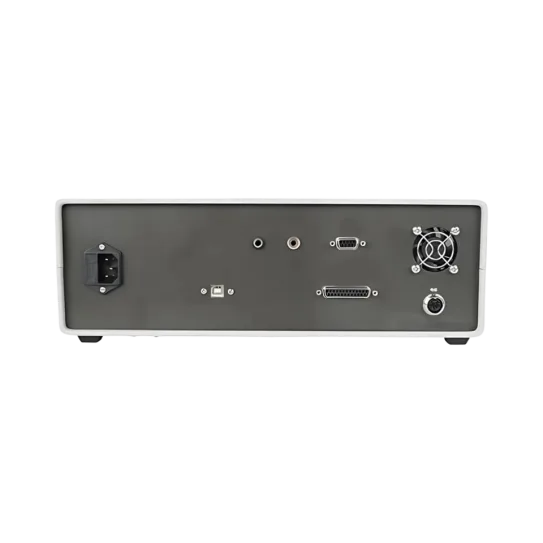

Potentiostat System LMPST-A101

Catalog Send Mail Whatsapp Get Quote

Specifications

Electrode Configuration	2-, 3-, and 4-electrode
Maximum Potential Range	±10 V
Maximum Current	±250 mA
Compliance Voltage	±13 V
Potentiostat Rise Time	Less than 1 μs
Potentiostat Bandwidth	1 MHz
Potential Ranges	±10 mV, ±50 mV, ±100 mV, ±650 mV, ±3.276 V, ±6.553 V, ±10 V
Potential Resolution	0.0015%
Potential Accuracy	±1 mV or ±0.01%
Potential Noise	Less than 10 μV RMS
Current Measurement Range	±10 pA to ±0.25 A
Current Resolution	0.0015%
Current Accuracy	0.2%
Input Bias Current	Less than 10 pA
Scan Rates (CV/LSV)	0.000001 V/s to 10,000 V/s
Potential Increment (CV)	0.1
Pulse Width (CA/CC)	0.0001 to 1000 s
Sampling Interval (CA/CC)	0.4 μs
DPV/NPV Pulse Width	0.001 to 10 sec
SWV Frequency	1 Hz to 100 kHz
ACV Frequency Range	0.1 Hz to 10 kHz
SHACV Frequency Range	0.1 Hz to 5 kHz
FTACV Frequency Range	0.1 Hz to 50 Hz
AC Impedance Frequency	0.00001 Hz to 3 MHz
AC Impedance Amplitude	0.00001 V to 0.7 V RMS
Current Offset Accuracy	0.003%
Memory Capacity	256,000 to 16,384,000 points
Dimensions	370 × 230 × 120 mm
Net Weight	6 kg

Pricing

Product	Price	Unit	Action
Potentiostat System LMPST-A101	$ 11725	Each of 1	Add to cart Buy now

Features

Fast response time

Multiple step potential

Internal flash memory

Energy-efficient

Low maintenance

Applications

Potentiostat System LMPST-A101 is ideal for corrosion, material degradation analysis, and electrochemical surface characterization in academic, industrial, environmental and research laboratories.

Selection Guide

Potentiostat System LMPST-A101 is a high-performance electrochemical workstation designed for applications such as corrosion testing, battery analysis, electrodeposition, and electrochemical sensing. Based on research studies, it supports flexible electrode configurations (2-, 3-, and 4-electrode setups), making it suitable for both fundamental and advanced experiments. With a maximum potential range of ±10 V, a current range of ±250 mA, a compliance voltage of ±13 V, and a fast rise time of less than 1 μs, it ensures accurate and responsive measurements. This system also complies with essential quality and safety certifications, providing researchers and professionals with a reliable, certified system for various electrochemical applications. Customers can select this model based on their requirements for precision, versatility, and trusted performance in scientific and industrial research.
