Portable Multi Gas Detector with large-font display and multiple alarms

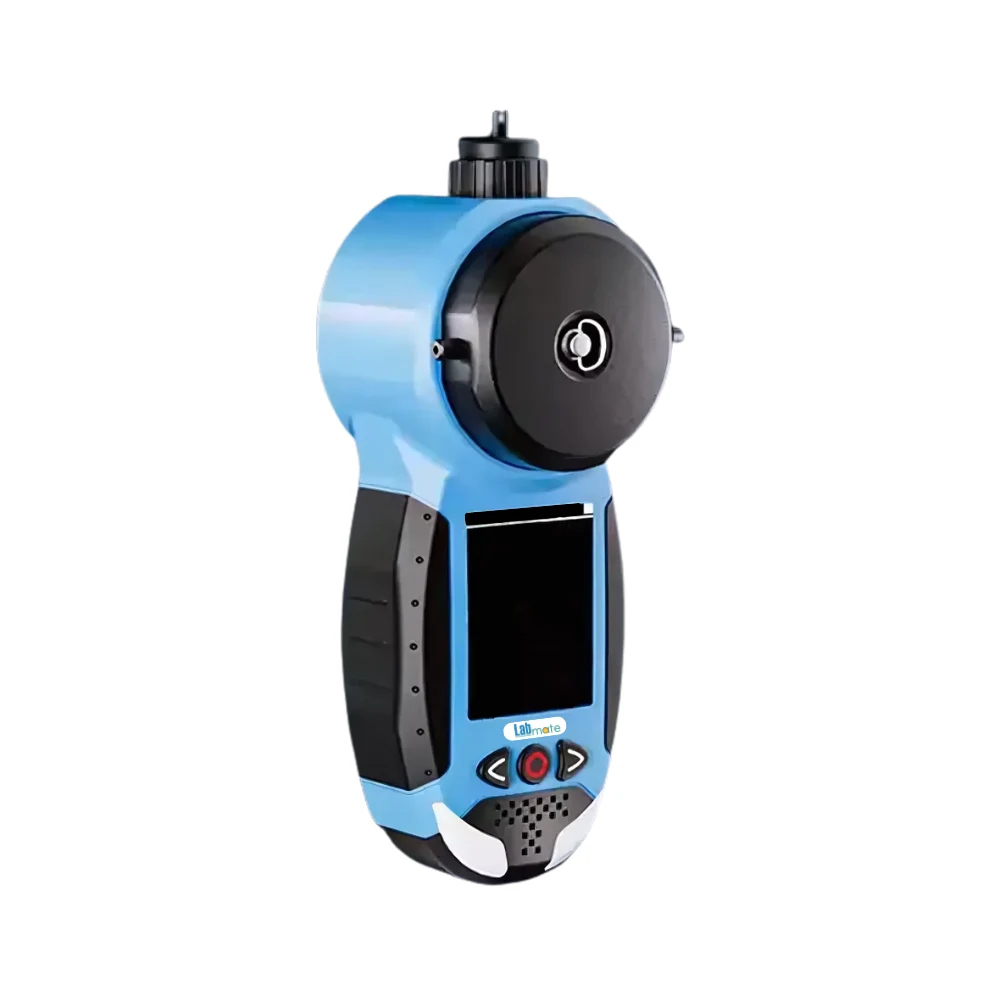

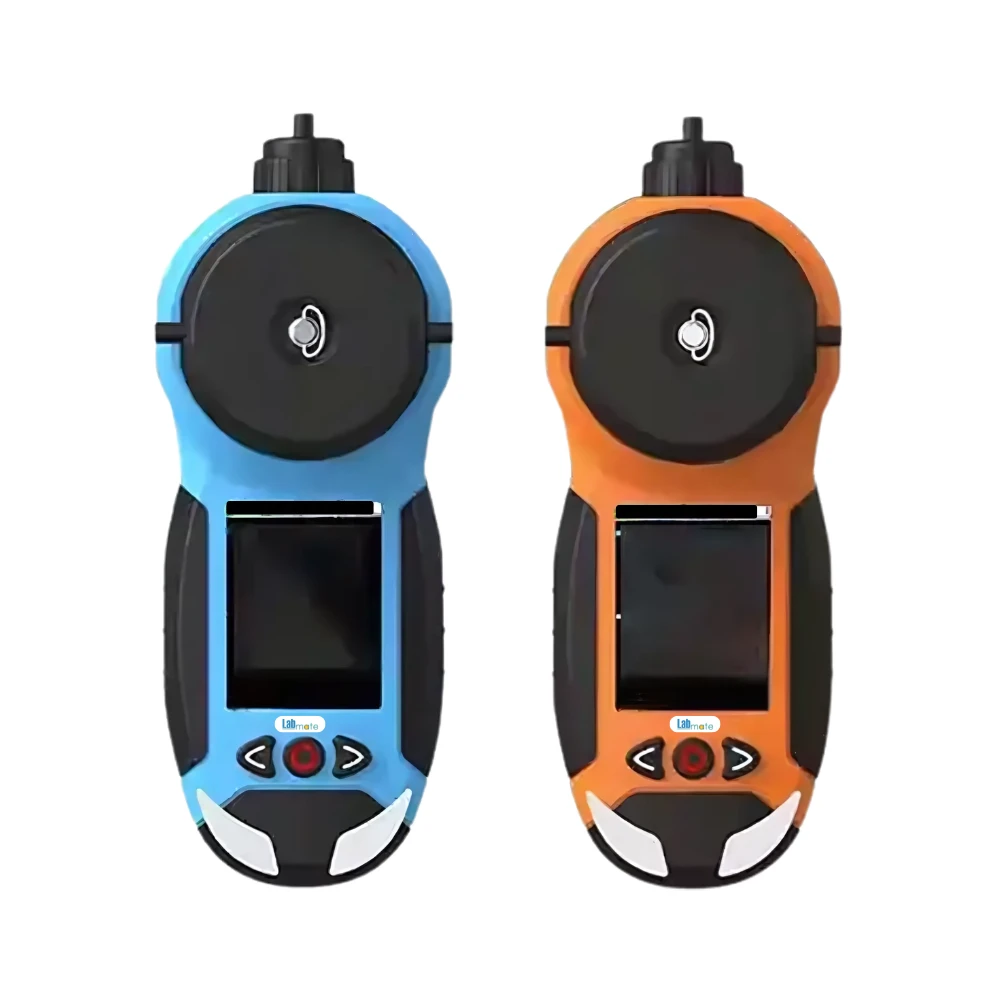

Portable Multi Gas Detector LMMGD-C100

Name: Portable Multi Gas Detector LMMGD-C100
Brand: Labmate
SKU: LMMGD-C100
Rating: 5 (452 reviews)

Portable Multi Gas Detector LMMGD-C100 has 0 to 100% LEL measurement range. It features built-in pump that allows stable suction sampling for reliable readings in tough environments. Equipped with large-font display, it shows alarm status, communication signal, gas levels, and battery power. Incorporates multiple alarms including low, high, interval, fall, fault, under-voltage, and one-key help. Our Detector is ideal for gas monitoring in chemical plants, pharmaceutical zones, and cold storage.

Catalog Send Mail Whatsapp

Specifications

Gas Detected	Flammable gases, oxygen, carbon monoxide, and hydrogen sulfide
Measurement Range	0 to 100% LEL
Tracer Gases	Combustible/toxic and harmful gases
Detection Principle	Catalysis, Electrochemistry, Infrared, PID, Semiconductors
Detection Mode	Built-in pump suction type
Utility Time	More than 10 hours
Accuracy	±3%FS
Display	LED liquid-crystal display
Relative Humidity	Less than 93%
Alarm Mode	Sound, light and vibration alarm
Data Storage	100,000 pieces of data
Communication Mode	Infrared, Bluetooth, lora and other wireless communication modes
Protection Grade	IP65
Charging Method	Magnetic charging
Dimension	200×80×50 mm
Packing Dimension	230×165×90 mm
Net Weight	290 g
Gross Weight	694 g

Pricing

Product	Price	Unit	Action
Portable Multi Gas Detector LMMGD-C100	$ 1550	Each of 1

Features

Manual operation button

USB data interface

Sensor interchangeability

Compact probe

Zero-point auto tracking

Calibration error block

Applications

Portable Multi Gas Detector LMMGD-C100 ensures gas concentration monitoring in chemical industries, pharmaceutical plants, water treatment sites, cold storage units, laboratories, and other confined environments.

Portable Multi Gas Detector LMMGD-A100

Gas Detected: O₂, CH₄, CO₂, VOC, CO, H₂S, SO₂, CL₂, NO₂, and NH₃
Measurement Range: 0 - 30%, 0-50000 PPM, 0-50000 PPM, 0-2000 PPM, 0-999 PPM, 0-200 PPM, 0-25 PPM, 0-50 PPM, 0-100 PPM, 0-100 PPM
Resolution: 0.0001, 1 PPM, 1 PPM, 1 PPM, 0.1 PPM, 0.1 PPM, 0.01 PPM, 0.01 PPM, 0.01 PPM, 0.01 PPM
Concentration Unit: ppm, mg/m³, %VOL, %LEL
Precision: 2% FS

$ 14550 / Each of 1

Portable Multi Gas Detector LMMGD-A102

Gas Detected: 1 to 6 gases (expandable to 18+), including O₂, CO, CO₂, SO₂, H₂S, CH₄, VOCs, etc
Detection Range: O₂: 0 to 25%VOL, CO₂: 0 to 50%VOL, CO: 0 to 1000ppm, SO₂: 0 to 500ppm, H₂S: 0 to 1000ppm, CH₄: 0 to 40000ppm
Resolution: O₂: 0.01%, CO₂: 0.01%, CO/SO₂/H₂S: 1ppm, CH₄: 1ppm
Tolerance: Less than or equal to 2.5% F.S.
Flow rate: 800 ml/min

$ 3937.5 / Each of 1

Portable Multi Gas Detector LMMGD-A103

Detection Gas: CO, H₂S, O₂, combustible gas (4 gas)
Detection Range: 0 to 5000 ppm, 0.01 mg/L, 0.1% LEL, 0.001% Vol
Resolution: 0.01 ppm / 0.1 ppm / 1 ppm
Detection Principle: Electrochemical, catalytic, infrared, thermal conductivity, semiconductor, PID
Detection Accuracy: less than or equal to 3% F.S.

$ 3250 / Set of 1

Portable Multi Gas Detector LMMGD-A101

Preheating Time: Less than or equal to 20 minutes
Response Time: 3 to 60 seconds
Working Time: Greater than or equal to 4 hours at 20°C
Working Temperature Range: -20 to 40°C
Storage Temperature Range: -40 to 55°C

$ 118125 / Each of 1

Portable Multi Gas Detector LMMGD-C101

Gas Detected: O₂, CO, H₂S, CH₄
O2 Detection Range: 0 to 30%VOL, ±0.01%VOL
Co Detection Range: 0 to 2000ppm, ±1ppm
H2s Detection Range: 0 to 100ppm, ±0.1ppm
Ch4 Detection Range: 0 to 100%LEL, ±0.1%LEL

$ 1775 / Each of 1

Portable Multi Gas Detector LMMGD-B100

Sampling Method: Diffusion
Working Conditions: -20 to 50°C, 0.9 to 1.1 (standard atmospheric pressure), 10 to 95 % RH (no dew condensation)
Gas Detected: H₂S, CO, O₂, and CH₄
Explosion-Proof Grade: Exia II CT3
Protection Grade: IP65

$ 1725 / Each of 1

Frequently Asked Questions

1 What is a Portable Multi Gas Detector?

A Portable Multi Gas Detector is an apparatus designed to detect the presence of multiple gases in the air.

2 How does Portable Multi Gas Detector work?

It works by using sensors to detect and measure the concentration of multiple gases in the air, alerting users when dangerous levels are reached.

3 What kind of maintenance does Portable Multi Gas Detector require?

Routine maintenance includes regular calibration, proper cleaning, and checking for sensor functionality and battery life.

4 Can Portable Multi Gas Detector be used in confined spaces?

It is essential for confined space entry, as it monitors hazardous gases and ensures the safety of workers in enclosed environments.

5 How does Portable Multi Gas Detector help in hazardous gas detection in industrial settings?

It continuously monitors for toxic, combustible, and oxygen-deficient gases, providing real-time alerts to prevent accidents, poisoning, or explosions in industrial settings.

6 Is Portable Multi Gas Detector used in firefighting?

It is used to monitor for hazardous gases like carbon monoxide and hydrogen cyanide during rescue operations and in fire zones.

7 Can Portable Multi Gas Detector be used during excavation work?

It is crucial during excavation work to detect gases such as methane or carbon monoxide, preventing accidents like explosions or asphyxiation.

8 Can Portable Multi Gas Detector be used in chemical plants?

It is used in chemical plants to monitor for toxic gases, ensuring that exposure limit is not exceeded and helping to prevent chemical leaks and accidents.

9 How does Portable Multi Gas Detector help in wastewater treatment facilities?

It is used to monitor gases like hydrogen sulfide, ensuring a safe working environment.
