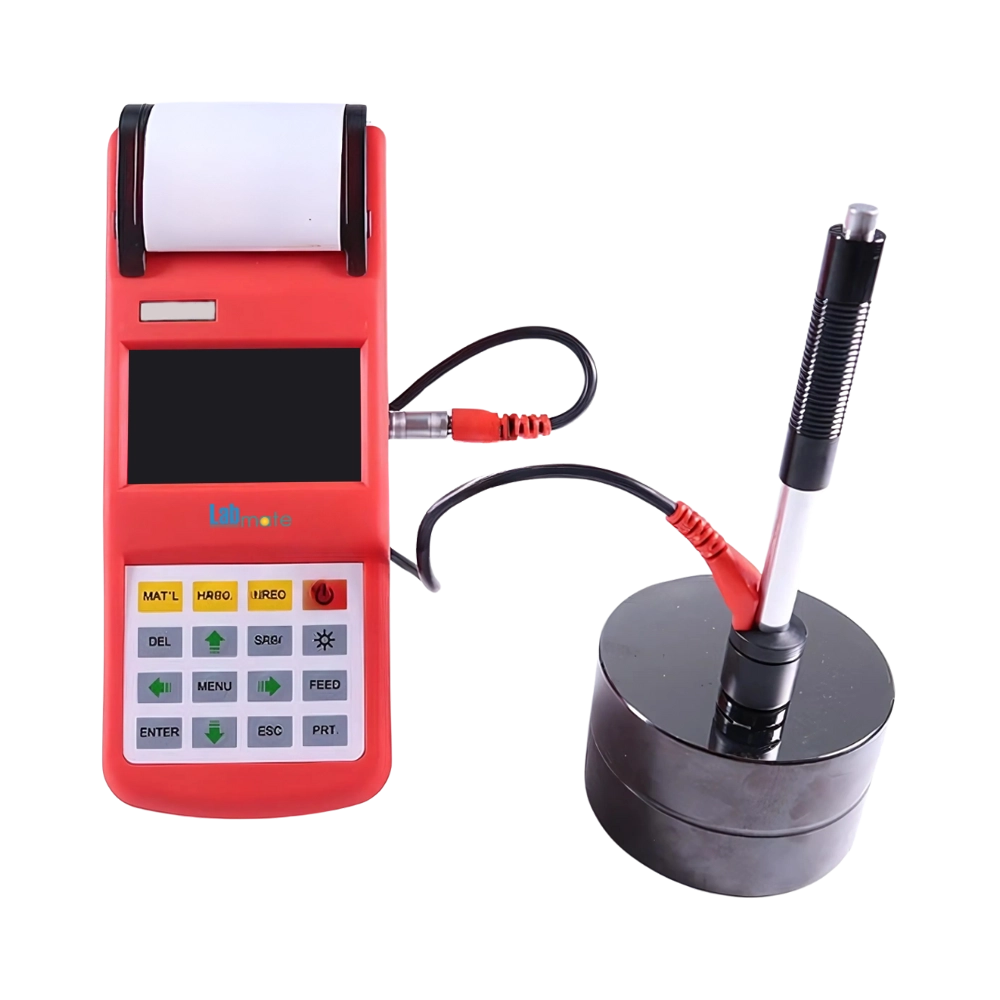

Portable Hardness Tester LMPHT-A102 offers hardness testing range from 170HLD~960HLD. It includes digital display for clear readouts and rechargeable battery for extended field operations. Integrated with robust data storage that holds up to 500 measurements. Equipped with lightweight design that ensures easy portability for on-site testing. Our Tester is ideal for material quality control in various industrial sectors.
Specifications
| Hardness Range | 170HLD ~ 960HLD |
| Measuring Direction | 360° |
| Testing Material | 10 varieties |
| Hardness Scale | HL, HRC, HRB, HRA, HB, HV, HS |
| Working Temperature | -10°C ~ +50°C |
| Storage Temperature | -30°C ~ +60 |
| Relative Humidity | ≤ 90% |
| Integrated Data Memory | 500 measurement series |
| Display | Dot Matrix LCD |
| Continuous Operating Period | Up to 150 hours |
| Recharge Time | 2.5 to 3.5 hours |
| Battery | 6V |
| Dimensions (L × W × H) | 210 mm × 85 mm × 40 mm |
| Packing Dimension | 370 mm × 310 mm × 130 mm |
| Net Weight | 2.5 Kg |
| Gross Weight | 5 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Hardness Tester LMPHT-A102 | $ 2137.5 | Each of 1 |
Features
Wide measuring range
3-inch large display
Test at any angle
Displays multiple hardness scales
Automatic alarm for limits
Displays battery level and charge status
User calibration function
PC connection via USB
EL background light
Auto power off to save energy
Standard Accessories
Accessory | Quantity |
Main Unit | 1 |
D-Type Impact Device | 1 |
Small Support Ring | 1 |
Nylon Brush (A) | 1 |
High-Value Leeb Hardness Test Block | 1 |
Communication Cable | 1 |
6V NI-MH Battery | 1 |
9V Battery Charger | 1 |
Instruction Manual | 1 |
Data Review Software | 1 |
Optional Accessories
DL type probe impact device
D type probe impact device
Applications
Portable Hardness Tester LMPHT-A102 is ideal for testing die cavities, bearings, and heavy workpieces. It aids in failure analysis of pressure vessels, steam generators, and installed machinery. It also supports material identification, rapid testing in large ranges, and measuring in small hollow spaces for large-scale workpieces.
Selection Guide
Portable Hardness Tester LMPHT-A102 is a versatile instrument designed for quick and reliable hardness measurements across various materials and testing environments. Based on research studies and industrial applications, this model is suitable for use in quality control, metal fabrication, manufacturing, and mechanical testing laboratories. It supports a wide hardness range of 170HLD to 960HLD and allows testing in 360° measuring directions, which makes it suitable for testing components in complex or hard-to-reach positions. With the ability to measure different materials and display results in multiple hardness scales like HL, HRC, HRB, HRA, HB, HV, and HS, it ensures compatibility with diverse testing standards. The tester also functions effectively in a wide operating temperature range of -10°C to +50°C, which supports both indoor and outdoor use. Additionally, its compliance with international testing standards and availability of calibration certification ensures accurate and traceable results, making it a reliable tool for both field inspections and laboratory use.
Frequently Asked Questions
1 What is a Portable Hardness Tester?
A Portable Hardness Tester is a compact, handheld apparatus designed to measure the hardness of materials.
2 How does Portable Hardness Tester work?
It works by applying a controlled force to a probe and measuring the depth or size of the indentation made on the material's surface.
3 What types of materials can Portable Hardness Tester measure?
It can measure the hardness of a variety of materials, including metals, plastics, ceramics, and composites.
4 What is the difference between a Portable Hardness Tester and a Bench-top Hardness Tester?
A Portable Hardness Tester is lightweight, compact, and designed for on-site testing, whereas a Bench-top Hardness Tester is stationary, larger, and used in laboratory settings for more detailed measurements.
5 How does Portable Hardness Tester help in quality control during manufacturing?
It is used to ensure that materials and products meet required hardness levels at various stages of production.
6 Can Portable Hardness Tester be used for inspecting the hardness of coated materials?
It can measure the hardness of coated materials, such as painted or plated surfaces.
7 Can Portable Hardness Tester be used to test the hardness of small parts or components?
It is ideal for testing small parts or components, such as screws, bolts, and bearings.
8 How is Portable Hardness Tester used in the automotive industry?
It is used to check the hardness of parts like engine blocks, crankshafts, and transmission components to ensure they meet strict material specifications for durability, performance, and safety.
9 Can Portable Hardness Tester be used for testing the hardness of castings?
It is commonly used to test castings, such as those made from iron, aluminum, or steel, directly on the production line or at the foundry.
10 How does Portable Hardness Tester benefit the aerospace industry?
It is used for on-site testing of metal alloys, fasteners, and engine parts, helping to ensure the materials are up to spec without having to send them to a lab.
