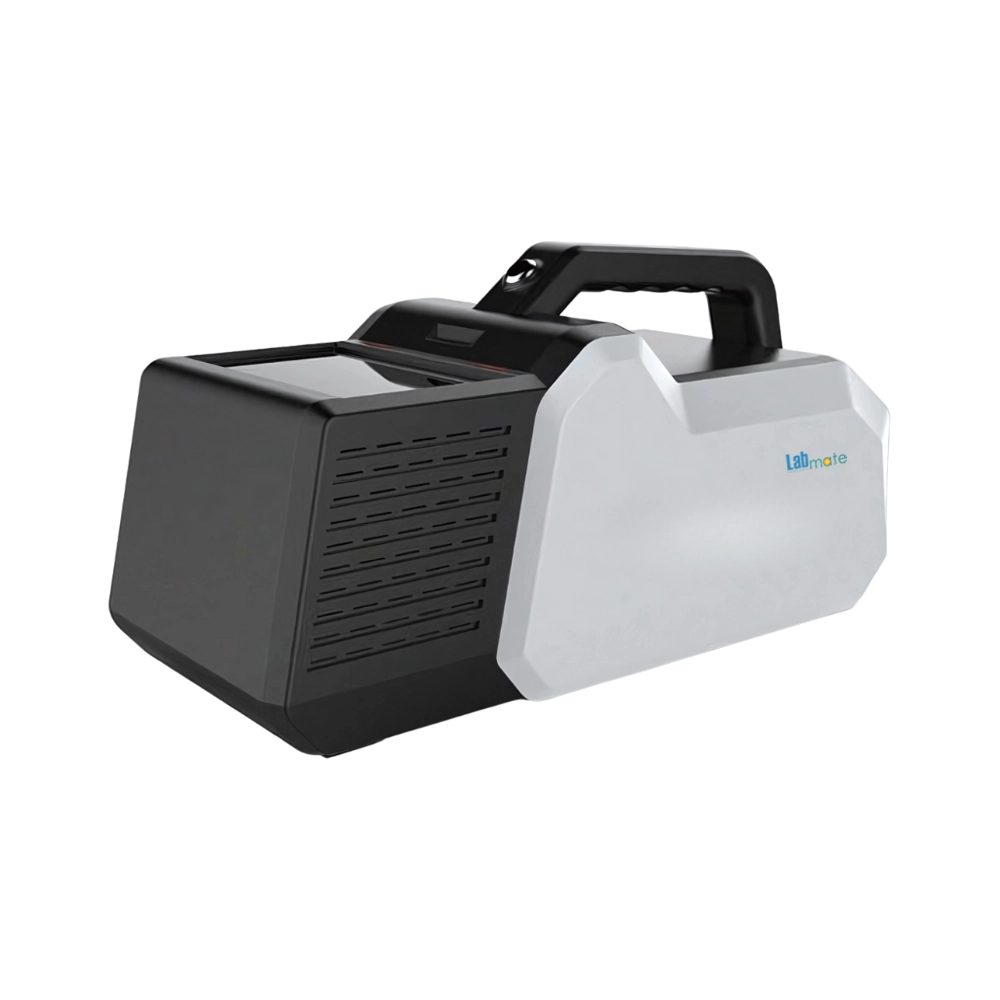

Portable Explosives Detector LMPED-A100 is a lightweight, user-friendly detector with a 99% detection rate. It is integrated with a 5-inch touchscreen display and power lock option. Our detector is capable of detecting nanogram levels of explosives in test samples within less than 5 seconds. Incorporated a built-in diagnosis function and audio-visual alert system.
Catalog Send Mail WhatsappSpecifications
| Detectable Explosives | Black Powder, Ammonium Nitrate (AN), TNT, PETN, RDX, nitro-glycerine, Octo, Tetra, Dinitrotoluene (DNT), C4, Semtex, TATP, etc. |
| Working Temperature | -15°C to 50°C |
| Analysis Time | < 5 s |
| Detection Rate | ≥ 99% |
| False Positive Rate | ≤ 1% |
| Warm-Up Time | ≤ 10 min |
| Display Screen | 5-inch high-definition touch display |
| Standby Time | > 5 hours |
| Power Adapter | input 220 V / AC 50-60 Hzoutput 16 V / DC |
| Power Supply | 220 V AC 50 to 60 Hz |
| Product Dimension (L×W×H) | 338 ×148 ×175 mm |
| Weight | < 3 kg |
Features
Featured to have remote monitoring
Equipped with a handle for better grip
Provided with a location map display
Enable users to add new samples easily
Enhanced alarm mode, with visual and information display
Customized to have a graphical display of battery usage
Applications
Employed for the quick and efficient identification of explosive materials in various environments. They find extensive applications in airports, law enforcement agencies, railway security departments, research laboratories, and forensic investigations.
Frequently Asked Questions
1 What is a Portable Explosives Detector?
A Portable Explosives Detector is an apparatus designed to identify trace amounts of explosive materials through chemical analysis.
2 How does a Portable Explosives Detector work?
It works by analyzing chemical signatures or vapors from explosives using advanced sensors and detection technologies.
3 What types of explosives can be identified by Portable Explosives Detector?
It can identify various explosives, including TNT, RDX, PETN, ANFO, and TATP.
4 What kind of maintenance does Portable Explosives Detector require?
Routine maintenance includes regular calibration, sensor cleaning, battery checks, and software updates.
5 Can Portable Explosives Detector be used at airports?
It is widely used at airports to screen luggage, cargo, and passengers for traces of explosives.
6 Is Portable Explosives Detector useful in law enforcement operations?
It is used for suspect searches, bomb threat investigations, and securing public spaces from explosive threats.
7 Can Portable Explosives Detector be used in military applications?
It is used for detecting landmines and potential threats in conflict zones or on military bases.
8 Can Portable Explosives Detector be used for disaster relief operations?
It helps search-and-rescue teams locate explosives in areas affected by natural disasters, ensuring safety during recovery efforts.
9 Can Portable Explosives Detector assist in protecting critical infrastructure like power plants or dams?
It helps monitor and protect critical infrastructure such as power plants, dams, and communication facilities from explosive threats, providing quick screening in high-risk areas.
10 How does Portable Explosives Detector assist in detecting explosives in hazardous waste management?
It is used in hazardous waste sites or recycling centers to ensure that explosives are not accidentally mixed with other materials, preventing catastrophic incidents.
