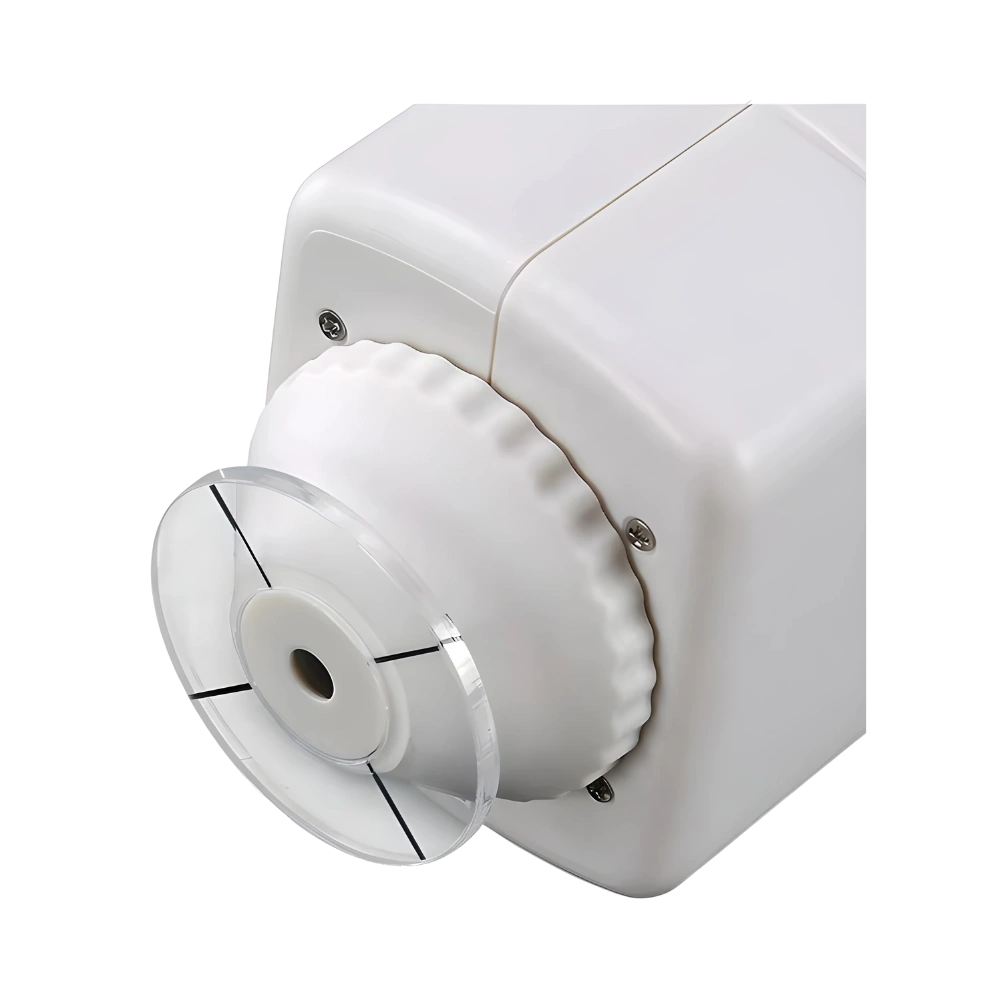

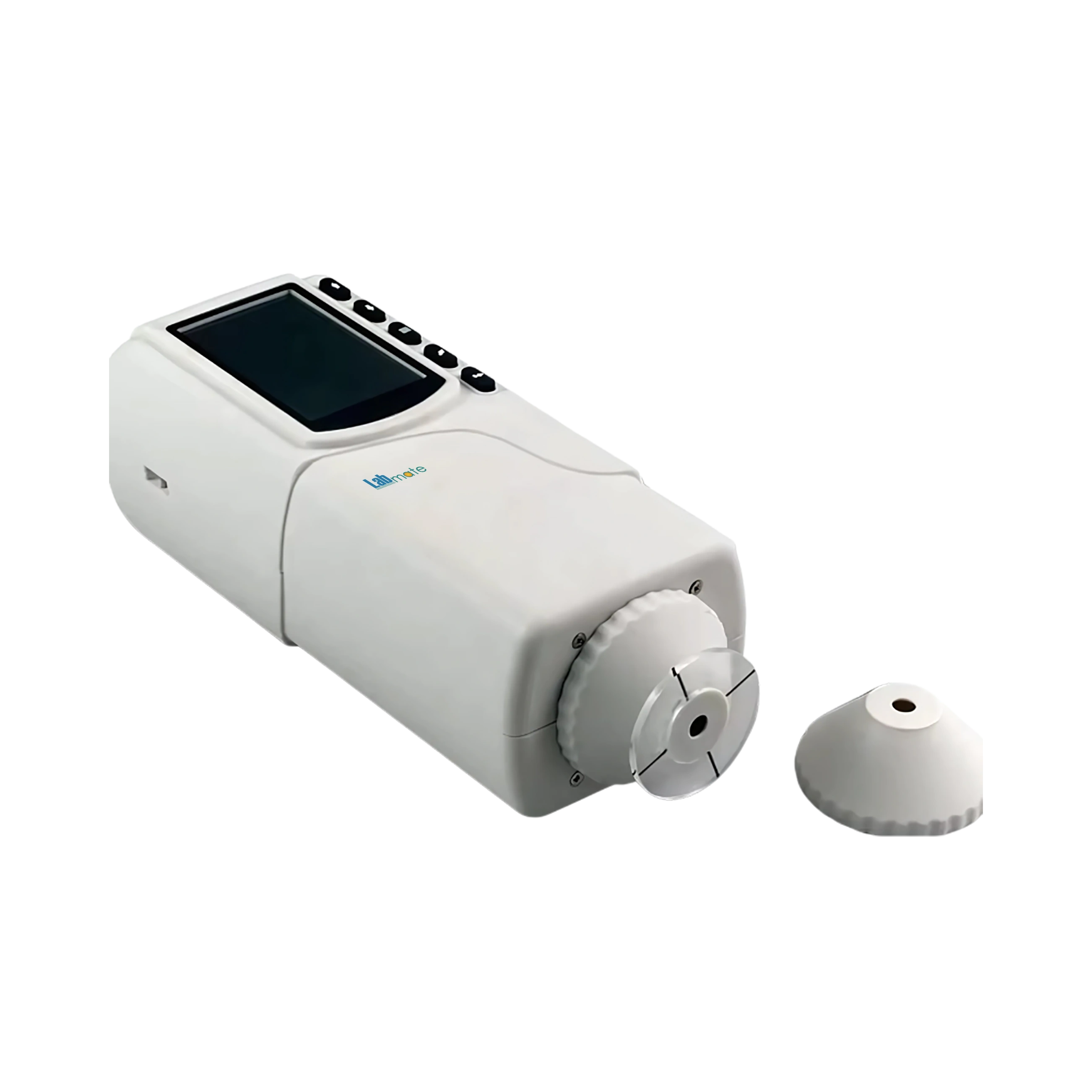

Portable Colorimeter LMPCM-A101 offers a 4 mm aperture for consistent evaluation across diverse materials. Integrated with a silicon photoelectric diode that delivers sensitive detection of refined variations. It features an LED blue light excitation source (D65) ensuring stability and extended operational performance. Equipped with memory capacity for 100 standards and 20,000 sample readings ensuring dependable data storage. Our Portable Colorimeter requires only 8 hours of charging to reach full battery capacity.
Specifications
| Measuring Aperture | 4 mm |
| Detector | Silicon photoelectric diode |
| Display | TFT LCD |
| Display Interface | 3-inch color screen |
| Illuminating/Viewing Geometry | 8/d |
| Locating Method | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end-face and small concave-convex end-face |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | Less than or equal to 0.80ΔE*ab |
| Storage Capacity | 100 standards, 20,000 samples |
| Repeatability | 0.08 ΔE*ab (standard deviation, based on 30 measurements of standard white plate) |
| Power Source | Rechargeable lithium-ion battery |
| Power Supply | 3.7V at 3200mAh |
| Lamp Life | 5 years (more than 1.6 million measurements) |
| Charging Time | 8 hours (100% electricity) |
| Measurement Time Before Charging | 3000 times in 8 hours |
| Ambient temperature | –10°C to 40°C |
| Data Interface | USB |
| PC Software | CQCS3 Software |
| Dimension | 205×67×80 mm |
| Packaging Dimension | 350×160×300 mm |
| Net Weight | 450g |
| Gross Weight | 2kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Portable Colorimeter LMPCM-A101 | $ 2100 | Each of 1 |
Features
LCD Display
Color Screen Interface
Multiple Measurement End Faces
USB Connectivity
CQCS3 Software
Compact and Portable
Applications
Portable Colorimeter LMPCM-A101 is ideal for color evaluation in plastics, electronics, paints, inks, textiles, garments, dyeing, and printing for quality control. It is also valuable for research in scientific institutes, schools, and laboratories.
Similar Products
$ 2000 / Each of 1
$ 1157.5 / Each of 1
Frequently Asked Questions
1 What is a Portable Colorimeter?
A Portable Colorimeter is a handheld apparatus designed to measure the concentration of specific substances in a solution by analyzing the color intensity.
2 How does Portable Colorimeter work?
It measures the concentration of a substance by detecting how much light a colored solution absorbs at a specific wavelength.
3 Can Portable Colorimeter be used in agriculture?
It is used to analyze soil nutrients and water used for irrigation in order to optimize crop health and yield.
4 Can Portable Colorimeter be used in food and beverage industries?
It is used to maintain product quality by analyzing color and ingredient concentrations, such as sugar or preservatives.
5 Can Portable Colorimeter be used in pharmaceuticals?
It is used to ensure the correct formulation of liquid medicines by analyzing color intensity related to active ingredients.
6 Can Portable Colorimeter be used in chemical manufacturing?
It is used to ensure proper formulation by analyzing color indicators that reflect chemical concentration and purity.
7 Can Portable Colorimeter be used in the dairy industry?
It is used to detect adulteration and ensures quality by analyzing color changes in milk or milk-based products.
8 Can Portable Colorimeter be used in mining operations?
It is used to detect metal ions and other elements in water or soil samples during exploration or environmental assessments.
9 Can Portable Colorimeter be used for monitoring cleaning and sanitizing agents?
It is used to determine the concentration of sanitizers like chlorine or quaternary ammonium compounds to ensure proper disinfection.
10 Can Portable Colorimeter be used in pesticide monitoring?
It is used to detect pesticide residue levels in water or soil using reagent kits that cause measurable color changes.
