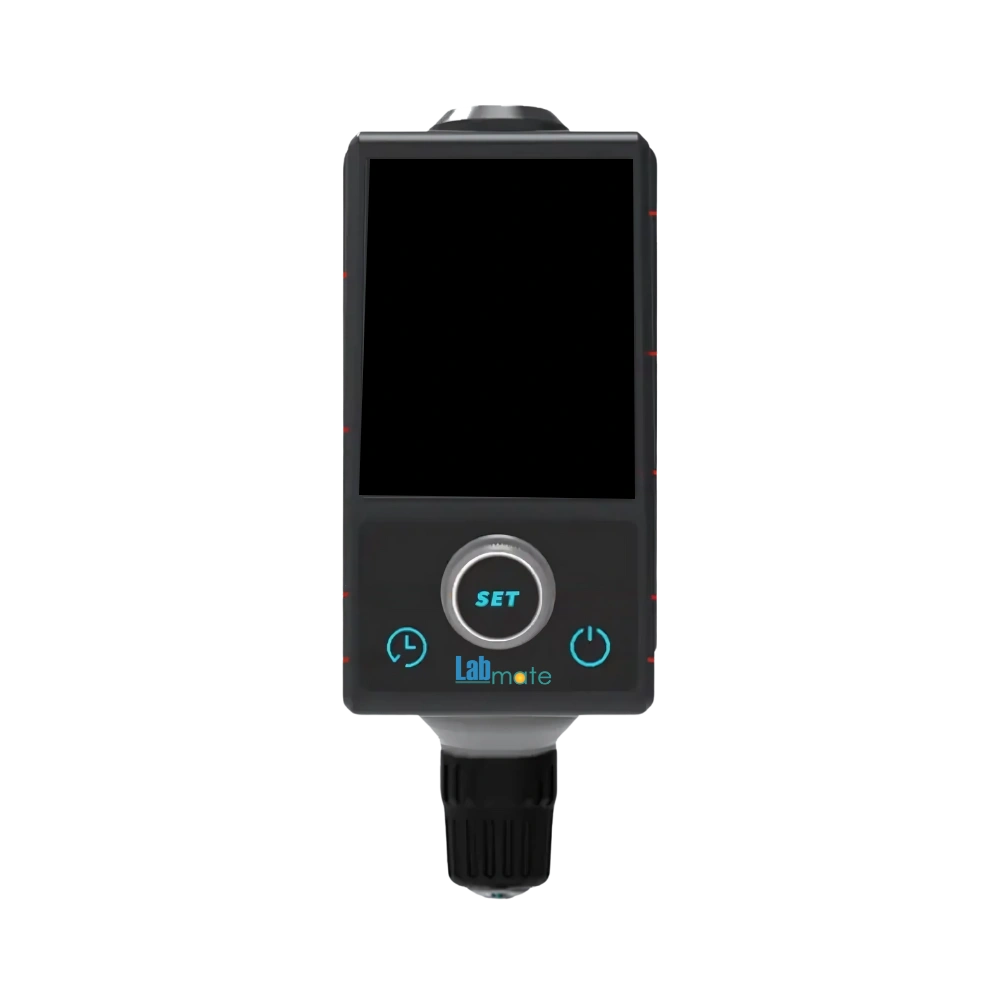

Overhead Stirrer LMOHS-A200 is designed with maximum capacity of 20 liters. It features stepless speed regulation with digital display for smooth, adjustable, and visible speed control. Equipped with overload protection to prevent damage during high-resistance mixing tasks or unexpected load changes. Incorporates brushless DC motor that ensures maintenance-free, stable, and long-lasting operation. Our Overhead Stirrer is ideal for stirring in laboratory research, academic institutions, and clinical setups.
Specifications
| Maximum Capacity | 20L |
| Stirring Speed Range | 50 to 2200rpm |
| Display | Large color screen |
| Timer | 0 to 99h59min |
| Chuck Diameter Range | 0.5 to 10mm |
| Speed Accuracy | ±1 rpm |
| Rated Torque | 22N.cm |
| Communication Interface | RS232 |
| Overload Protection | Automatic stop |
| Motor Protection | Automatic stop |
| Protection Grade | IP42 |
| Ambient Temperature Range | 5 to 40℃ |
| Relative Humidity | 80% |
| Power Consumption | 50W |
| Power Supply | 110 to 240V, 50/60Hz |
| Weight | 40 Kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Overhead Stirrer LMOHS-A200 | $ 1582.5 | Each of 1 |
Features
High torque output
External PT100 sensor
Sealed housing
RS232 connectivity
Self-locking chuck
Effortless rod replacement
Applications
Overhead Stirrer LMOHS-A200 is ideal for laboratory research, academic institutions, chemical synthesis, pharmaceutical development, and clinical setups requiring reliable stirring performance.
Selection Guide
Overhead Stirrer LMOHS-A200 is a perfect choice for laboratories and research facilities requiring high-performance mixing of viscous samples. It is widely used in applications such as polymer synthesis, pharmaceutical formulation, chemical reactions, emulsification, and sample homogenization. This model supports a wide speed range and high torque, making it suitable for research studies involving complex chemical or biological materials. Certified for safety and performance with CE and ISO standards, it ensures operational reliability and compliance with international laboratory practices. Researchers prefer this model for its robust motor, accurate control system, and suitability in both routine lab tasks and advanced experimental setups, providing a dependable solution for continuous or high-load stirring requirements.
Similar Products
$ 1650 / Each of 1
$ 2217.5 / Pack of 1
$ 1742.5 / Each of 1
$ 1885 / Each of 1
$ 1977.5 / Each of 1
$ 1490 / Each of 1
Frequently Asked Questions
1 What is an Overhead Stirrer?
An Overhead Stirrer is a laboratory device designed to mix, blend, or stir liquid samples with high viscosity using a motor-driven shaft and stirring tool.
2 How does an Overhead Stirrer work?
It operates by rotating a stirring shaft, which is immersed in the liquid, allowing efficient mixing through mechanical agitation.
3 Can Overhead Stirrer handle high-viscosity materials?
It is specifically designed to handle high-viscosity materials.
4 Can Overhead Stirrer be used for polymer synthesis?
It is ideal for polymer synthesis because it can efficiently handle high-viscosity mixtures and maintain uniform agitation throughout the reaction process.
5 Is Overhead Stirrer suitable for emulsion preparation?
It is commonly used for emulsion preparation due to its ability to provide consistent shear force, ensuring stable and uniform emulsions.
6 Can Overhead Stirrer be used for pharmaceutical formulation?
It is widely used in pharmaceutical formulation for mixing active ingredients, excipients, and creating homogeneous suspensions or gels.
7 Is Overhead Stirrer effective in food-grade mixing applications?
It is used in food and beverage labs to mix viscous syrups, sauces, or nutritional formulations, especially in R&D settings.
8 Can Overhead Stirrer be used in microbiology labs?
It is used to mix culture media, viscous solutions, or reagents where precise mixing is essential for consistent results.
9 What role does Overhead Stirrer play in nanomaterial synthesis?
It ensures uniform dispersion of nanoparticles in solvents or polymers, which is crucial for consistent nanomaterial synthesis and stability.
10 Can Overhead Stirrer be used in fermentation processes?
It can be used in small-scale fermentation setups to maintain even mixing of nutrients and microbial cultures, promoting optimal growth conditions.
