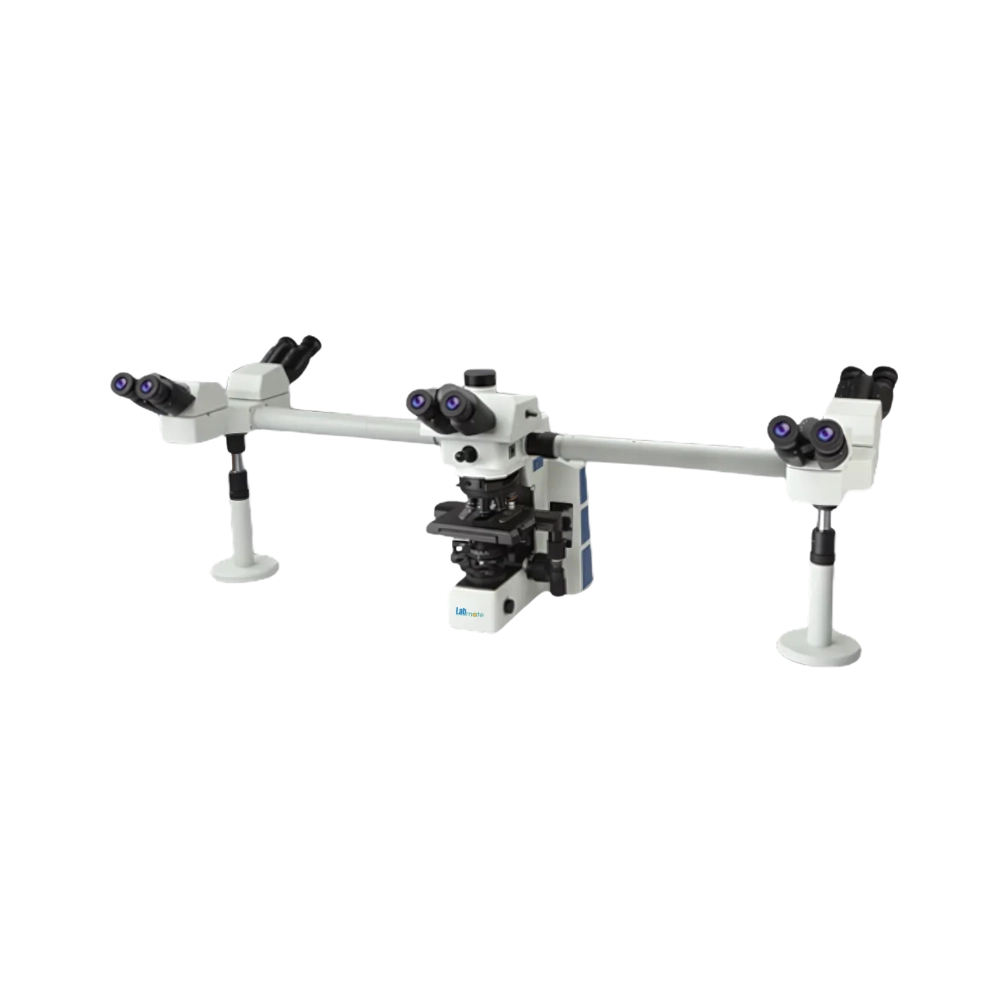

Multi-viewing Microscope LMMVM-A103 offers EW10×/20 extra wide-field eyepieces for expansive field of view. Built with infinite optical system, it delivers high-resolution, distortion-free images. Designed with high-performance infinite plan achromatic objectives for superior resolution. It features bright halogen Kohler illumination, ensuring uniform and stable lighting. Our Microscope supports comfortable simultaneous observation with ergonomic multi-head system.
Catalog Send Mail WhatsappSpecifications
| Optical System | Infinite optical system |
| Viewing Heads | 1 Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48 to 75mm; |
| Eyepiece | Extra Wide Field Eyepiece, EW10×/ 20 |
| Nosepiece | Inverse Quintuple Nosepiece |
| Objective | Infinite Plan Achromatic Objectives :4X/0.1, WD 17.3mm, 10X/0.25, WD 10mm, 20X/0.40, WD 5.1mm, 40X/0.65, WD 0.54mm (spring), 100X/1.25, WD 0.13mm (spring oil) |
| Condenser | Swing condenser N.A. 0.9/0.25 |
| Focussing Adjustment | Coaxial Coarse and Fine Focus Adjustment |
| Fine Division | 0.002mm |
| Stage | Double Layers Mechanical Stage |
| Stage Dimension | 185×142mm |
| Stage Movement Range | 75×55mm |
| Kohler Illumination | External Illumination, Halogen Lamp 24V/ 100W |
| Pointer | Green LED Pointer, Brightness Adjustable |
| Packaging Dimensions Box 1 | 410 × 470 × 680 mm |
| Packaging Dimensions Box 2 | 380 × 480 × 720 mm |
| Gross Weight Box 1 | 15 kg |
| Gross Weight Box 2 | 16 kg |
Pricing
| Product | Price | Unit | Action |
|---|---|---|---|
| Multi-viewing Microscope LMMVM-A103 | $ 9787.5 | Each of 1 |
Features
Inverse quintuple nosepiece
Double-layer mechanical stage
360° rotatable heads
Smooth stage movement
Green led pointer
Swing condenser
Applications
Multi-viewing Microscope LMMVM-A102 is employed in research, education, clinical diagnostics, medical facilities, laboratories, and industrial inspection for efficient simultaneous observation.
Similar Products
$ 11250 / Each of 1
$ 6562.5 / Each of 1
$ 8562.5 / Pack of 1
Frequently Asked Questions
1 What is a Multi-viewing microscope?
A Multi-viewing microscope is a laboratory apparatus designed to provide concurrent side-by-side visuals of specimen to numerous users.
2 How does Multi-viewing microscope work?
It works with the help of multiple optical paths that transmit images of the specimen to different eyepieces or digital displays.
3 Can Multi-viewing microscope be used for both bright-field and dark-field microscopy?
It is versatile and supports both bright-field and dark-field microscopy.
4 Can Multi-viewing microscope be used for live specimen observation?
It is used for live specimen observation such as in research labs, where multiple users need to observe and analyze living organisms simultaneously.
5 Does Multi-viewing microscope support high-throughput screening?
It enable multiple researchers to analyze large numbers of samples at once therefore is suitable for high-throughput screening.
6 How does Multi-viewing microscope improve the accuracy of sample analysis?
It improves the accuracy of sample analysis by allowing multiple users to cross-check observations and interpretations in real time.
